Product Specifications
| Prod Model: |
DW4040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Dw4040 Mini CNC Router |
| Machine Body: |
Whole Cast Iron |
| Work Dimensions: |
400 X 400 X 120mm |
| Max.Speed: |
4, 200mm/Min |
| Working Speed: |
0-3000mm/Min |
| Software: |
Type 3, Artcut, Artcam |
| Max. Power Consumption: |
900W |
| Drive Motor: |
Stepper Motor |
| Spindle: |
1.5kw Variable Speed, Water Cooled Motor |
| Warranty: |
18 Months |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

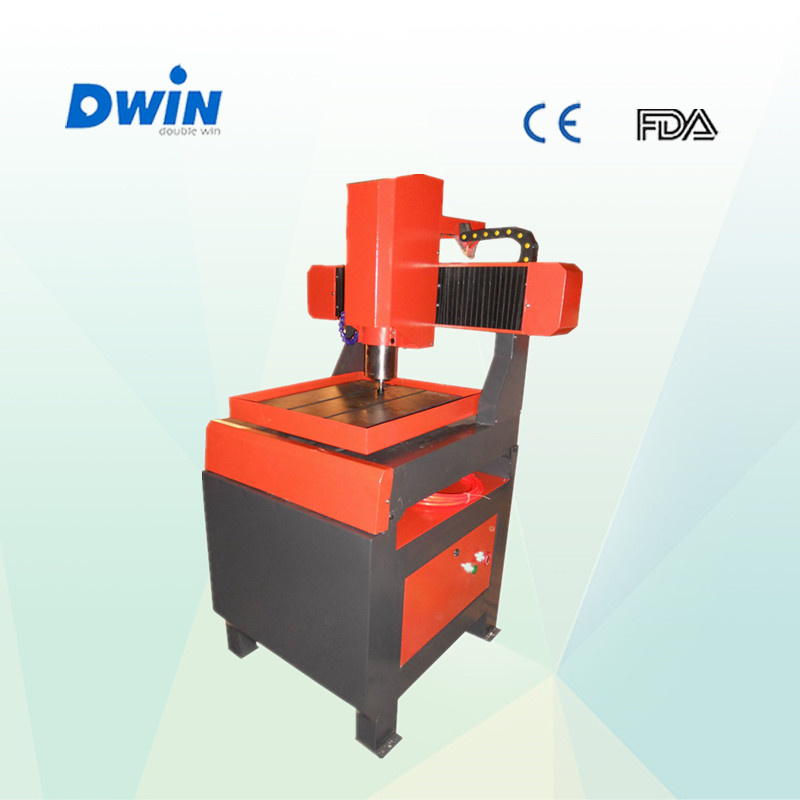

3D Jade Engraving CNC Router (DW4040)
Features:
desktop advertising machine Z axis can reach to 120mm can be used for stone, Cu and AL processing, mold manufacturing, wood processing, mould, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting.
Specifications:
Machine body: |
Whole cast iron |
Work dimensions: |
400 x 400 x 120mm |
Body dimensions: |
700 x 700 x 800mm |
Z-axis working area: |
120mm |
Max. Feeding height: |
120mm |
Cut thickness of material: |
<20mm |
Max.Speed: |
4, 200mm/min |
Working speed: |
0 - 3, 000mm/min |
Mechanical precision: |
0.01mm |
Software: |
Type 3, Artcut, Artcam
|
Max. Power consumption: |
900W |
Power supply :
|
AC 220/50Hz for your
need |
Driver type: |
Stepper motor |
Memory: |
1MB |
Spindle:
|
1.5KW variable speed, water cooled motor |
Spindle speed: |
0 - 24, 000rpm |
Blade diameter: |
1 - 6m |
Control system:
|
Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
Command: |
G code, u00, mmg, plt |
Interface: |
RS232 |
Running circumstance temperature: |
0 - 45 |
Relative humidity: |
30% - 75% |
Guarantee & after sale service :
1) Guarantee for 1.5 years
2) Free training to make sure you master the operating of cnc router (on internet or by telephone)
3) 24-hour technical supporton Internet or by Telephone, free instructions and problem solving
4) Video CD for machine using and maintaining
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
