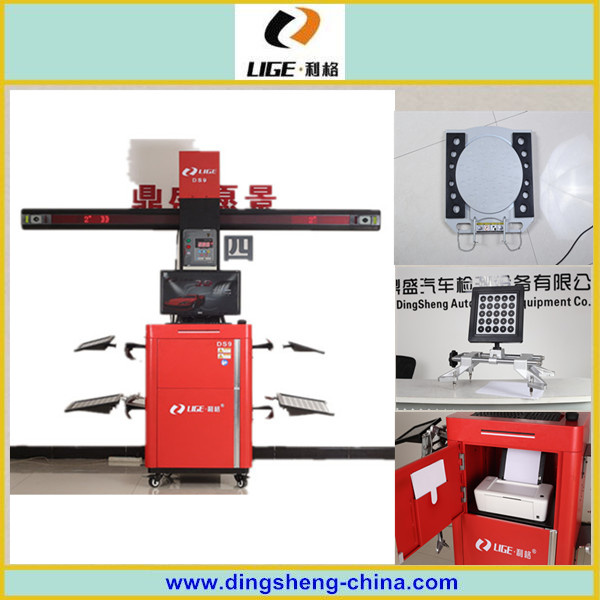

3D wheel alignment factory automotive measure equipment lige DS-9
Features:
1.Innovative 3D technology basing on image from 4 high resolution cameras.
2.Extremely wide camera view-unit suitable for pit and lift.
3.offer 4 passive target plates-maintenance free, reduced risk of damage.
4.Real 3D-no necessity for perfect leveling of testing bench.
5.Extremely fast software-probably the fastest measurement system on the market-measurement in 2 minutes.
6.Multilingual software-including English, German, Polish, Spanish, Português .
7.Intuitive,user friendly graphical user interface.
8.Free updates of extensive vehicles database-covering over 20 000 models.
Software Features
1.Basic Functions:
parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle
2.Extension Functions: axis deviation measurement, wheel deviation measurement, animation, single-round measurements, the vehicle lift measurement function, steering wheel, align the features, positioning platform for testing the level of degree the amount of features, voice prompts, engine bracket adjustment, before the beam Lock measurement functions, the former beam curvature measurements
Technical Data:
| Measurement Items | Measurement Precision | Measurement Accuracy |
| Total toe | ±0.01° | ±20° |
| Individual toe | ±0.01° | ±20° |
| camber | ±0.02° | ±12° |
| Caster | ±0.1° | ±25° |
| K.P.I | ±0.1° | ±25° |
| Set back | ±0.01° | ±9° |
| Trust angle | ±0.01° | ±9° |
| power | 110 /220v ±10v | 50 /60HZ |
| Wheelbase | 1.2~1.7m | ±1mm |
| Tread | 1.8~3.6m | ±1mm |
Environment demands
charger : 220v (50 /60 Hz) ± 10% output. Better with voltage regulator or UPS
working temperature: 0~40C
Relative humidity: 10~85% without dew
Distance between cameral to target : 500mm , between cameral to lifter: 800mm, between cameral to turntable : 2700 ~2800mm
Power consumption: 0.5kw needs to connect with earthing conductor over 1.5m
Anti-rust , anti-magnetic parts, getting rid of direct solar radiation.
| Net weight:320kgs, Gross weight:370kgs |
Packing: 2cartons per set cubic:;2.5cbm
Shanghai Dingsheng Automotive Equipment Co., Ltd set up in 2005, located at a beautiful international city Shanghai, covering 3500sq. M of workshop, warehouse and office. With each year production capacity about 5000 units. Main products include 3D / CCD wheel aligner, lifter etc car repair and maintain automotive equipments such as tire changer, wheel balancer and other garage equipment.
Lige engages in design, development and production. And has the innovation patents on the wheel alignment soft and hardware V1.0, V2.0, V3.0.
Lige brand equipment has been earning praise by thousands of dealers and end users in more than 20 countries due to its advanced technology, perfect performance and reliable quality. We welcome your visit and hope to have the chance to cooperate with you.
