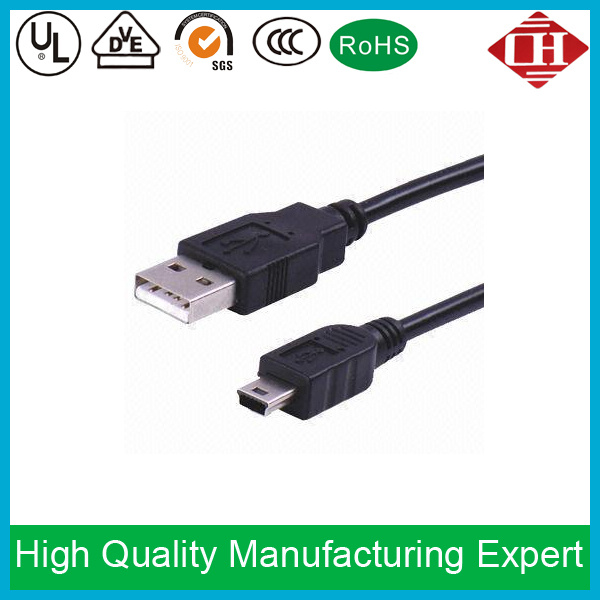

Product Specifications
| Prod Model: |
AMA-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| USB Version: |
2.0 |
| Od: |
2.5-3.5mm |
| Insolution: |
PVC |
| Material: |
Copper |
| Interface Type: |
USB |
| Pin: |
10Pin |
| Application: |
Network |
| Power Cable Type: |
Two-pin |
| Feature: |
Explosion-proof |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description
Package &delivery:
Packaging Detail: OEM PE bag
Delivery Detail: 3~4weeks
Specifications
Thinner slim HDMI A M to A M Cable with Zinc Alloy connector 36AWG
1. Private for tooling
2. Factory
3. CE & FCC
Description
This HDMI cable provides a one-cable solution for many of your home entertainment needs. It could be applied to connect your HDTV to your Blu-Ray Player, 3D Television, Roku, Boxee, xBox360, PS3, Apple TV, Streaming Player, HD Cable Box, PC or any HD device with an HDMI output. Then you could experience high quality audio and video from your home theater.
Specification
1. Both High speed HDMI cable and high speed HDMI cable with ethernet are available.
2. Data transfer rate up to 10, 2 GB/s.
3. Supports Dolby® TrueHD and DTS-HD Master Audio™ .
4. HDCP compliant.
5. HDMI Ethernet Channel Adds high-speed networking to an HDMI link, allowing users to take full advantage of their IP-enabled devices without a separate Ethernet cable. (only high Speed HDMI with ethernet supports this function)
6. Audio Return Channel Allows an HDMI-connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable.
7. Support 3D Defines input/output protocols for major 3D video formats, paving the way for true 3D gaming and 3D home theater applications.
8. Support 4K resolution Enables video resolutions far beyond 1080P, supporting next-generation displays that will rival the Digital Cinema systems used in many commercial movie theatres.
9. Ultra thin cable: 36AWG/ OD: 3.5MM.
|
Connector plating |
Gold-plated, Nickel-plated |
|
Contact |
Copper Alloy
|
|
Shielding |
Foil and Braid, Nylon
|
|
Jacket Color |
Blue, Black, White or optional |
|
Conductor |
Bare copper ,Tinned copper, Gold-plated
|
Gauge
|
24 AWG, 26 AWG or 28 AWG
|
|
Over mold |
PVC 80Pa ,UL94V-0 Black, TPE
|
|
Pre mold |
PE Low Density |
Electrical
|
100% open & short test
|
|
Withdraw Force |
10N Min |
|
Insertion Force |
35N Max |
|
Contact Resistance |
0.01 OHM Max |
|
Insulation Resistance |
10M OHM /300V Min |
|
Hi-Pot |
DC 300V 10ms |
|
Working Temperature |
-25°C~ +85°C |
Speed
|
480Mbps
|
|
Salt Spray Test |
24 hours |
|
Compatibility |
USB 1.0 & USB 2.0 |
Package
|
Polybag, PE bag, Carton box |
Xiamen Chaohong Electronic Technology Co., Ltd. Was founded in 2006. We specialized in the field of Wire Harness for 9 years. Our main product including: Homeappliance Wire Harness, Automobiles and Motorcycles Wire Harness, Equipment Wire Harness; UL Electronic Cables, Audio & Video Cables, MOLEX, JST and AMP connectors; Insulated and Uninsulated Terminal.
We manufacture as your requirements, also, we can source necessary products for you and sell directly to you.
We are committed to meeting environmental requirements. All of our products meet RoHS safety standards, also passed ISO9001 and 14001, UL and VDE certification.
We are confident to supply you with best product and service with reasonable price.
Our Advantage:
1. We are a professional manufacturer of wire harness for 9 years in China...
2. Our Wire Harness product have UL certificate: UL File No.: E477319
3. Strict Quality Control, 100% Test before delivery.
Our Service:
1. Your visit are highly welcome
2. Cutomize Order are welcome
3. OEM& ODM Service
4. Samples of our products will be provided for your evaluation.
Our factory Principle:
1. Environmental protection.
2. Defective rate are controlled below 1%
3. Speedy Delivery.
4. Guarantee: Replacement 1: 1 or refund for bad goods
5.100% satisfy your request as contract
What is out biggest wealth except customer? Neither the manager, nor the equipment, nor the building, but our worker. We insist on worker' s cultural construction, build fund to help the worker, Pre-job training.
