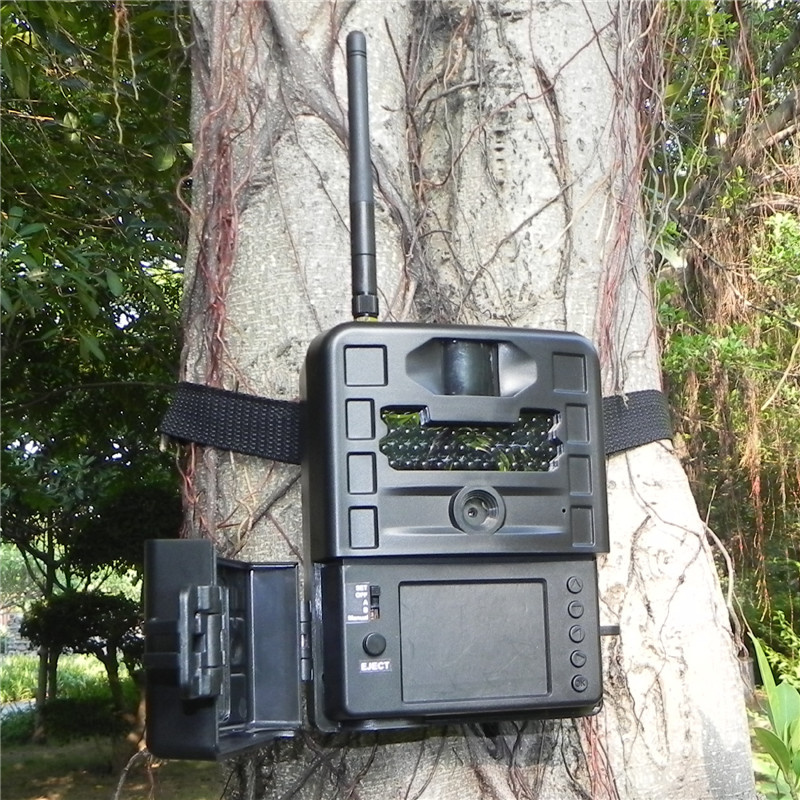

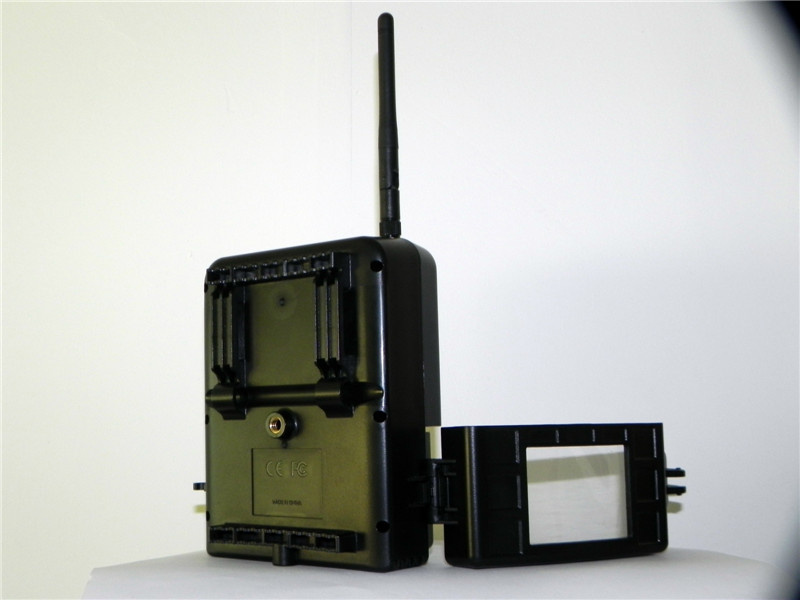

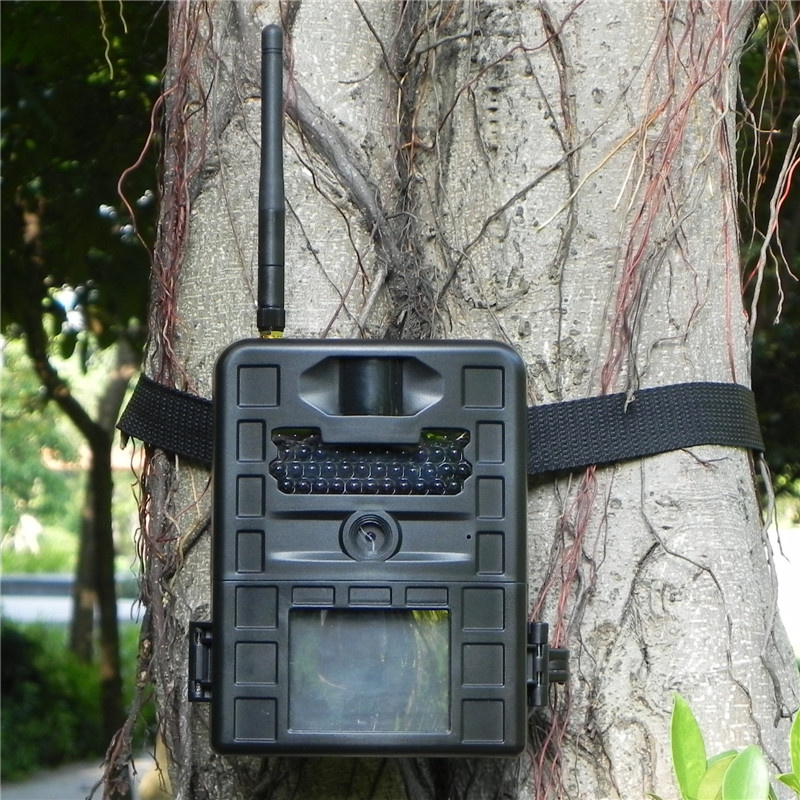

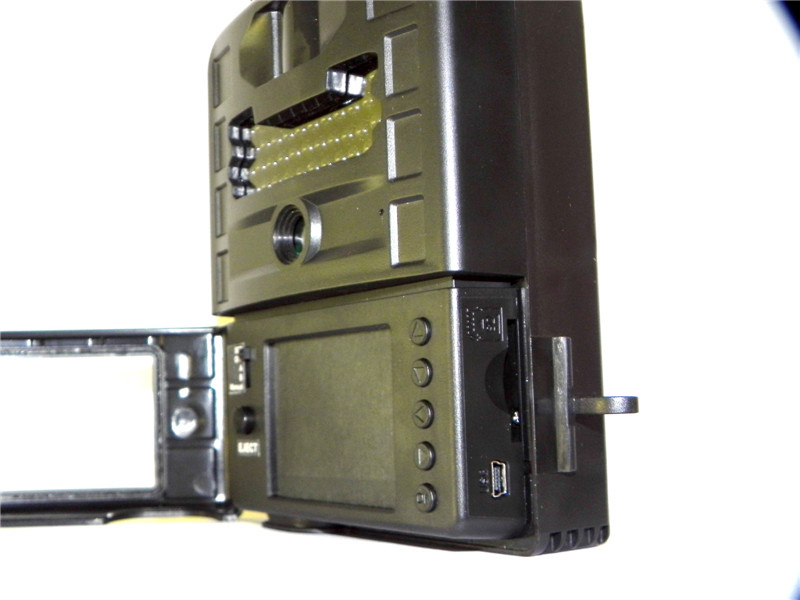

3G GSM GPRS HD Invisible Infrared Hunting Camera with 2.7" Color LCD

Supplier:	Shenzhen Siyuan Digital Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	3G-hunting
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor:	CMOS
Megapixel:	5.0-9.9MP
Screen Type:	OLED Screen
Screen Size:	2-3"

Product Description

EUROPE MarketUSA Market

Mobile 3G Module UC15-E UC15-A

Mobile Module Operation Freq BandsUMTS/HSPDA: 900/2100MHz UMTS/HSPDA: 850/1900MHz

GSM/GPRS: 900/1800MHzGSM/GPRS: 850/900/1800/1900MHz

Dettachable Antenna900~2100MHz850~1900MHz

Model NO: SG-998M

Patent no:201430324691.1,200920131285.7

LensStandard lens F/NO=2.2
FOV(Field of View)=60°

PIR detection rangePIR=62°,22M/72ft

Trigger Speed0.6- 1 seconds

Display Screen2.7 " 16M color with TFT

Still Image Pixel 5M=3072 x 1728,2M=1920 x 1080,1M= 1280 x 720

Received MMS or mail photo1280 x 720,JPEG

Image formatJPEG

Video Pixel / frame rate720P (1280 x 720) with Audio/30FPS

Photo +videoYes,when choose Video ,the first photo is (1280 x 720)

Video FormatAVI

MicrophoneBuilt in

Temperature sensorBuiit in

Lighting40pcs 940nm IR LED

Auto control

Image DayColor

NightBlack/White

Programming5 Button Interface + 1 slide switch

Still Image burst1-9 burst

Auto battery low detectionFull/Half/Low

Battery Low indicatorYes, by color screen

Test /Count Down indicatorYes, by color screen

Video recording time5s~600s

PIR Triggering Interval0s-60min

Time Lapse ModeYes

Time out of TLS (Time Lapse Mode)5s~600s, OFF

SDRAM32MB SDRAM

External SD card compatibleUp to 32GB

Stamp on still image /AVIDate/Time/Moon phase/Temp C or Temp F

GPS YES, longitude &latitude Stamp on image

Power internal12 X AA Alkaline battery (9V operated)

Power external12V direct use

USB portYes, USB 2.0, 5pins

SIM card slotYes

Stand-by Current< 0.25 mA (<6mAh/Day)

Power Consumption400 videos(interval=5min,video length=10s);
>500 MMS(use 8*AA batteries)

Weight/Size0.44KG,14*10.5*5CM

Operation/Storage Tem-30 - +60°C / -40 - +70°C

Stand-by TimeUp to 12 Months(12*AA)

Housing water tightIP66

Security authenticationFCC, CE-RTTE, RoHS

AccessoryUSB Cable/Enhanced Antenna/Black Strap/English Manual

MountingRope/Belt/Python lock

Package CTN:[L/ W / H],20pcs/ctn400mm x 390mm x 340mm

One color box230*150*90mm,0.86KG

G W14KG

N W12KG

*without SD Card and battery,Color box with Blister Cam

	EUROPE Market	USA Market
Mobile 3G Module	UC15-E	UC15-A
Mobile Module Operation Freq Bands	UMTS/HSPDA: 900/2100MHz	UMTS/HSPDA: 850/1900MHz
	GSM/GPRS: 900/1800MHz	GSM/GPRS: 850/900/1800/1900MHz
Dettachable Antenna	900~2100MHz	850~1900MHz
Model NO:	SG-998M
Patent no:	201430324691.1,200920131285.7
Lens	Standard lens F/NO=2.2 FOV(Field of View)=60°
PIR detection range	PIR=62°,22M/72ft
Trigger Speed	0.6- 1 seconds
Display Screen	2.7 " 16M color with TFT
Still Image Pixel	5M=3072 x 1728,2M=1920 x 1080,1M= 1280 x 720
Received MMS or mail photo	1280 x 720,JPEG
Image format	JPEG
Video Pixel / frame rate	720P (1280 x 720) with Audio/30FPS
Photo +video	Yes,when choose Video ,the first photo is (1280 x 720)
Video Format	AVI
Microphone	Built in
Temperature sensor	Buiit in
Lighting	40pcs 940nm IR LED
	Auto control
Image Day	Color
Night	Black/White
Programming	5 Button Interface + 1 slide switch
Still Image burst	1-9 burst
Auto battery low detection	Full/Half/Low
Battery Low indicator	Yes, by color screen
Test /Count Down indicator	Yes, by color screen
Video recording time	5s~600s
PIR Triggering Interval	0s-60min
Time Lapse Mode	Yes
Time out of TLS (Time Lapse Mode)	5s~600s, OFF
SDRAM	32MB SDRAM
External SD card compatible	Up to 32GB
Stamp on still image /AVI	Date/Time/Moon phase/Temp C or Temp F
GPS	YES, longitude &latitude Stamp on image
Power internal	12 X AA Alkaline battery (9V operated)
Power external	12V direct use
USB port	Yes, USB 2.0, 5pins
SIM card slot	Yes
Stand-by Current	< 0.25 mA (<6mAh/Day)
Power Consumption	400 videos(interval=5min,video length=10s); >500 MMS(use 8*AA batteries)
Weight/Size	0.44KG,1410.55CM
Operation/Storage Tem	-30 - +60°C / -40 - +70°C
Stand-by Time	Up to 12 Months(12*AA)
Housing water tight	IP66
Security authentication	FCC, CE-RTTE, RoHS
Accessory	USB Cable/Enhanced Antenna/Black Strap/English Manual
Mounting	Rope/Belt/Python lock
Package	CTN:[L/ W / H],20pcs/ctn	400mm x 390mm x 340mm
	One color box	23015090mm,0.86KG
	G W	14KG
	N W	12KG
	*without SD Card and battery,Color box with Blister Cam

Shenzhen Siyuan digital Technology Co., Ltd established in 2005, a branch of SiYuan international investment group (HK) Ltd. Our factory cover more than 30, 000 square meters, over 300 employees. Specialized in ODM and OEM.

We are mainly engaged in the design, manufacturer and export all kinds of digital trial/scouting/hunting cameras, Security lighting cameras, mini DVR, helmet/action/sport cameras, digital camcorder etc. And acquired 41 patents in these consumer electronic products. They have been exported to various countries and regions with main markets in Europe, America, Middle East, South Africa Southeast Asia, and so on. Our own brand: SuperScouter, Coolboy, Digicool&, has developed into the leading brand in China.

As a professional manufacturer we always place much attention on quality control. In order to provide customers with the best products, we have implemented ISO 9001 in production and manufacturing systems, which are conducted in accordance with international standards. We have received many certifications as FCC/CE /RoHS approval thereby providing a further guarantee of our reliability. We always focused on provide customers with high quality products, competitive price and comprehensive service. Please feel free to contact us for details if you are interested in any of our series.

Shenzhen siyuan digital technology Co., Ltd, Shenzhen Vigorway Technology Co., Ltd, Guangdong Leetch Industry Co., Ltd, Shenzhen uniwin electronics technology Co., Ltd., Microboe Electronic Co. Ltd& Shenzhen siyuan Pet product Co., Ltd., are all held by SiYuan international investment group (HK) Ltd

For the hunting camera SG-370VSG-570VV, is our factory patent model. Patents NO: 201130297213.2
For the hunting camera DTC-530, DTC-530V, is our factory patent model. Patents NO: ZL200930165343.3,
For the hunting camera DTC-550, DTC-550V, is our factory patent model. Patents NO: ZL200930165342.9,
For the hunting camera KG-680/680V, is our factory patent model. Patents NO: 201030102759.3
For the hunting camera SG660V, SG-660M, is our factory patent model, patents NO: ZL200920131285.7, 201030201364.9, 201060504272.8
For the hunting camera Model# SG-550M, SG-880MK is our patent product, patent no is 201030583010.5,
For the hunting camera Model#DTC-565V, is our patent product, patent no: 201130152313.6
For the hunting camera Model#MG-582M, MG-882MK, is our patent product, patent no: 201230100045.8
For the hunting camera Model#SG-560P, SG-560K, is our patent product, patent no: 201230100450. X
