3G-Sdi Video with Data& Audio& Ethernet Multiplexer

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wired
Support Network:	Fiber Optic Multiplexer
Usage:	Fiber Transmit
Information Content:	Fiber Transmit

Product Description

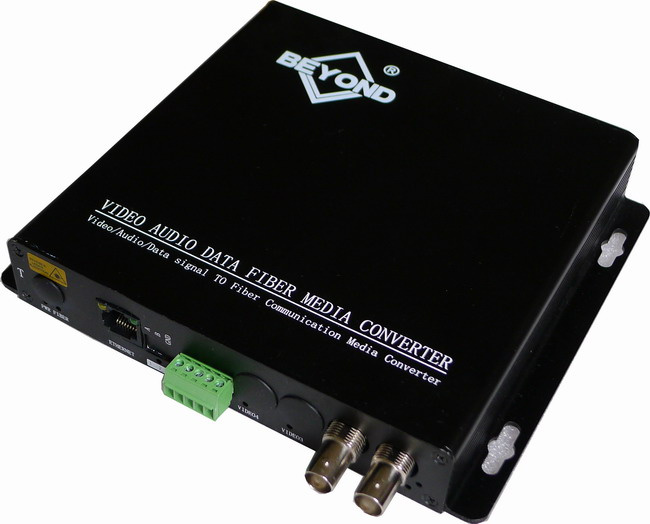

Beyondopto is pleased to announce the 3 G SDI video with data& audio& Ethernet Multiplexer that allow transport of pathological patterns high-definition video and CD audio high sampling rate 58kHz, 100/10M steady Ethernet over standard fiber optic networks. Only one cable(with Lemo 3k. 93C Series) is needed to transmit all required signals for a remote camera and it's operator in both directions over kilometers.

FEATURES
@ 1 channel video and audio transmission of digital video signal over optic fiber
@ Handles pathological pattern
@ SMPTE 311 Compliant
@ Automatic cable equalization to ensure signal integrity
@ Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
@ Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards, DVB-ASI
@Directly compatible with HD-SDI camera systems and support RS-232, RS-422, and RS-485 data protocols
@ Long transmission capability at least 10 km(6.2 miles), up to 80 km
@ Terminal block power input for industrial application
@Supports hot swapping and hot plugging
@Simplex LC/PC single mode optical connection
@Industry-grade of operating temperature from -10to 75, which is applied to the different working environment
@Stand-alone type or card-type installed in 19'' 2U or 4U rack-mount chassis.
DESCRIPTION
The VSDI series fiber video converter is an ideal and economic solution for broadcasting or surveillance applications. It receives one HD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080P60).
Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with BeyondOpto advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.
The VSDI series fiber video converter are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment

Data:
Data protocol
RS232\RS422\RS485\Manchester, BIPHASE data
Data rate
0~500 Kbps
Error rate
< 10-9
Connector
Standard terminal lead
Audio:
Input/output Impedance
600ohm(unbalance)
Max input/output voltage
3.0Vp-p
Frequency Response
10 Hz~29kHz @± 3dB
SNR
> 70dB
Connector
Standard terminal lead
Ethernet:
Work mode
Full duplex/half duplex
Data Rate
10/100Mbps(AUTO)
Connection terminal
RJ45
Video:
SDI Input
Signal Type SDI
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Data Rates
270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
Connector
BNC 75 Ohm

General:
Input Power
5 V DC
Power consumption (maximum)
Transmitter: 2.8W Receiver: 2.5W
Operating temperature
0° C to 55° C
Storage temperature
-10° C to 70° C
Operating humidity
0 ~ 95% (non-condensing)
Net Weight
1000g per pair
Case material
Aluminum
