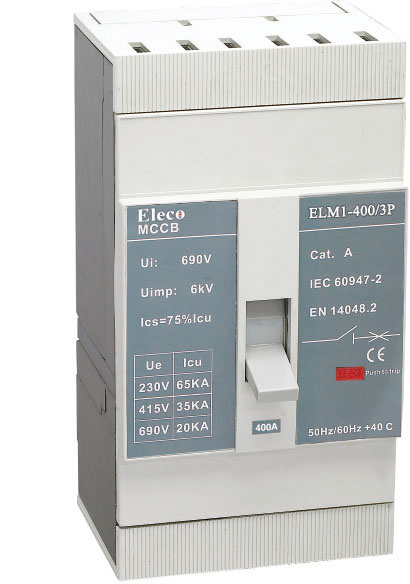

3p 400A Moulded Case Circuit Breaker (ELM1 Series)

Name: 3p 400A Moulded Case Circuit Breaker (ELM1 Series)
Brand: China-Manufacturer-Directory.com
SKU: 775018955
Availability: InStock
Rating: 4.5 (74 reviews)

Supplier:	Ruian Eleco Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ELM1 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	3/4
Rated Current In:	12.5,16,20,25,32,40,50,63,400,630,800,1250,1600
Rated Insulation Voltage Ui:	500V/400V/690V
Rated Operating Voltage Ue:	230V/400V
Dielectric Property:	2500V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	Semko
Poles Number:	3p,4p

Product Description

Application
ELM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 690V and used for circuit of A.C. 50/60Hz, rated operating voltage AC 400V(or below), rated operating current up to 1250A for infrequent changing over and starting of the motors. The products conforms to IEC60947-2 standard.

Model			ELM1-160		ELM1-200					ELM1-63
Number of poles			1		2		L=2			3/4	L=4
Breaking capacity			B	N	B	N		B	N	B		N	S
Rated current of frame size Inm			160(200)		200 200L					63 63 l
Rated current In			12.5,16,20,25,32,40,50,63,80,100,125,160(200)		12.5,16,20,25,32,40,50,63,80,100,125,160(200)					10,12.5,16,20,25,32,40,50,63
Rated insulation voltage Ui			500V		500V					400V
Rated operating voltage Ue			230V		400V 230V					400V
Rated current of the N pole			=In		=In					=In
Icu AC 400V/50Hz o-co (ka) Rated ultimate short-circuit breaking capacity			25 36		25 36 25 36					20 30 50
Icu AC 400V/50Hz o-co (ka) Rated ultimate short-circuit breaking capacity			18.75 27		18.75 27 18.75 27					10 15 37.5
Rated current of remnant motion In (mA)			-		30 50 100 300					30 100 300
Rated current of remnant no-motion Ino (mA)			-		15 25 50 150					15 50 150
Icm(peat) Icu AC400V/50HZ Is Rated short-time withstand current (ka)			-		-					-
Uimp Rated impulse withstand voltage (V)			1000		1000					1000
Dielectric property (V)			2500		2500					2500
Endurance	Total cycles		20000		15000					10000
	Electrical endurance		3000		2500					1500
	Mechanical endurance		17000		12500					8500
Lonization distance (mm)			≤30/0		≤30/0					≤30/0
Over current trip unit	Thermal magnetic release		-		-					-
	Intelligent trip unit
Utilization category	Main circuit		A/O		A/O					A/O
	Auxilliary circuit		AC-15		AC-15					AC-15
Outine dimensions	W(mm)	3P	30(1p)		60(2P)					76
		4P	-		- 60(2P)					101 101
	L(mm)	3P	120		120					120
		4P	-		- 155					120 155
	H(mm)	3P	70		70					70
		4P	-		- 70					70 70
Weight	Fixed version 3p/4p		0.92/1.3		0.92/1.3 -					0.92/1.3 -
	Plug-in version 3p/4p		-		- -					1.2/1.5 -
	Draw-out version 3p/4p		-		- -					- -

ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.

Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
