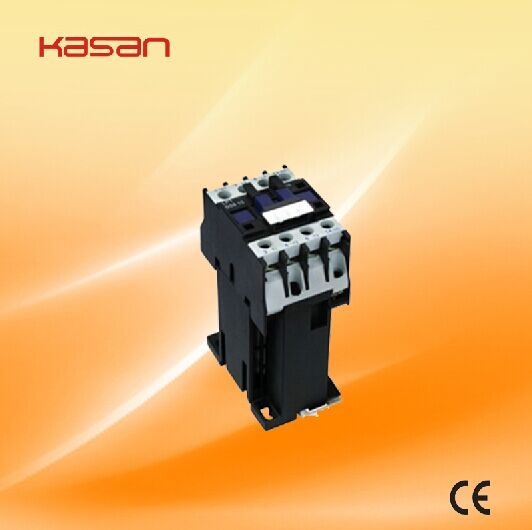

LP1-D DC Operated AC Contactor
Specifications
Type Rated working current A IeA
(AC-3) Rated heat current Ith(A) Rated working voltage Ue (A) Rated insulation voltage Ui A Controlled Power(KW) Electrical life (AC-3) 104 Contacts Number
220V 380V 415V 440V 660V
LP1-D09 9 20 380V
660V
660V 2.2 4 4 4 5.5 660V 3P+NO
3P+NC
3P+NO
+NC
LP1-D12 12 20 3 5.5 5.5 5.5 7.5
LP1-D18 18 32 4 7.5 9 9 9
LP1-D25 25 40 5.5 11 11 11 15
LP1-D32 32 50 7.5 15 15 15 18.5
LP1-D40 40 60 11 18.5 22 22 30
LP1-D50 50 80 15 22 25 30 33
LP1-D65 65 80 18.5 30 37 37 37
LP1-D80 80 125 22 37 45 45 45
LP1-D95 95 125 25 45 45 45 45
Type | CJX2-09Z | CJX2-12Z | CJX2-18Z | CJX2-25Z | CJX2-32Z |
Rated working current(A) | 380V | AC3 | 9 | 12 | 18 | 25 | 32 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
660V | AC3 | 6.6 | 8.9 | 12 | 18 | 21 |
AC4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 |
Rated heat current(A) | 25 | 25 | 32 | 40 | 50 |
Controllable power(KW) | 220/240V | 2.2 | 3 | 4 | 5.5 | 7.5 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 |
415V | 4 | 5.5 | 9 | 11 | 15 |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 |
600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 |
Weight(Kg) | DC contactor | 0.64 | 0.34 | 0.65 | 0.65 | 0.95 |
Measure(Mm3) | DC contactor | 76x115x47 | 76x115x47 | 76x120x47 | 88x130x59 | 86x135x59 |
Pole | 3, 4 | 3, 4 | 3 | 3, 4 | 3 |
Rated working voltage(V) | 380, 660 | 380, 660 | 380, 660 | 380, 660 | 380, 660 |
Rated insulation voltage(V) | 660 | 660 | 660 | 660 | 660 |
Mechanical life x104 | 1000 | 1000 | 1000 | 1000 | 800 |
Electrical life | AC x104 | 100 | 100 | 100 | 100 | 80 |
AC4 x104 | 20 | 20 | 20 | 20 | 20 |
Operating frequency | Electrical life | AC3 x104 | 1200 | 1200 | 1200 | 1200 | 600 |
AC4 x104 | 300 | 300 | 300 | 300 | 300 |
Mechanical life x104 | 3600 | 3600 | 3600 | 3600 | 3600 |
Rated controlled voltage(V) | 24-660 | 24-660 | 24-660 | 24-660 | 24-660 |
Working voltage | Close | DC% | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us |
Open | DC% | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us |
Type | CJX2-40Z | CJX2-50Z | CJX2-65Z | CJX2-80Z | CJX2-95Z |
Rated working current(A) | 380V | AC3 | 40 | 50 | 65 | 80 | 95 |
AC4 | 18.5 | 24 | 28 | 37 | 44 |
660V | AC3 | 34 | 39 | 42 | 49 | 55 |
AC4 | 9 | 12 | 14 | 17.3 | 21.3 |
Rated heat current(A) | 60 | 80 | 80 | 125 | 125 |
Controllable power(KW) | 220/240V | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 18.5 | 22 | 30 | 37 | 45 |
415V | 22 | 30 | 37 | 45 | 45 |
500V | 22 | 30 | 37 | 55 | 55 |
600/690V | 30 | 33 | 37 | 45 | 55 |
Weight(Kg) | DC contactor | 2.185 | 2.185 | 2.185 | 2.525 | 2.525 |
Measure(Mm3) | DC contactor | 128x175x81 | 128x175x87 | 128x175x87 | 128x183x87 | 128x183x8 |
Pole | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 |
Rated working voltage(V) | 380, 660 | 380, 660 | 380, 660 | 380, 660 | 380, 660 |
Rated insulation voltage(V) | 660 | 660 | 660 | 660 | 660 |
Mechanical life x104 | 800 | 800 | 800 | 600 | 600 |
Electrical life | AC x104 | 80 | 80 | 80 | 60 | 60 |
AC4 x104 | 15 | 15 | 15 | 10 | 10 |
Operating frequency | Electrical life | AC3 x104 | 600 | 600 | 600 | 600 | 600 |
AC4 x104 | 300 | 300 | 300 | 300 | 300 |
Mechanical life x104 | 3600 | 3600 | 3600 | 3600 | 3600 |
Rated controlled voltage(V) | 24-660 | 24-660 | 24-660 | 24-660 | 24-660 |
Working voltage | Close | DC % | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us |
Open | DC % | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us |
