Product Specifications
| Prod Model: |
DZ47LE-50-3P+N(40-50) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Material: |
Phosphor Bronze |
| Plastic Material: |
PC Inflaming Retarding Material |
| Rated Voltage: |
400VAC/50Hz/60Hz |
| Rated Current: |
40,50,60,80,100A |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
3 |
| Certification: |
CCC |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
Product Description
Basic information:

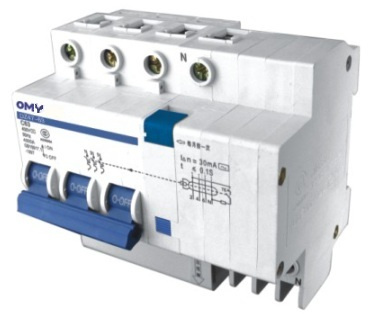

Model No.: DZ47LE-50-3P+N(40-50)
Brand Name: OMY
Origin: Dong Guan, China
Arc-extinguishing Medium: Air
Copper material: Phosphor bronze
Plastic material: PC inflaming retarding material
Rated Voltage: 1P: 230~400Vac/50Hz/60Hz; 2P, 3P, 4P: 400Vac/50Hz/60Hz
Rated Current: 40, 50, 60, 80, 100
Export Markets: Global common application
Application: Commercial, Industrial, Hospital, Residential/General Purpose
Production Capacity: 1000000pcs/M
Packing: Box, Carton;
Package Quantity: 1P: 180pcs/Carton, 2P: 90pcs/Carton2P: 60pcs/Carton2P: 45pcs/Carton
MOQ (Minimum order quantity): 100pcs
Structure: MCB
Breaking Capacity: Low Voltage Circuit Breakers
Poles Number: 4
Certification: CE, CCC, ISO9001
Operation: Manual Type
Installation: DIN Rail
Speed: Normal Type Circuit Breaker
Type: Mini
Export Markets: Global
Construction & Feature
DZ — — Moulded case circuit breaker (MCCB)
47 — — Design code
LE — — Special derivative code (electronic type residual-circuit breaker(RCCB)
32 — — Shell class rated current (32A, 63A)
— — Number of poles
— — Neutral conductor (N)
— — Rated residual operating current(mA)
1) DZ47-63 series MCB is used in lighting distribution system or power distribution system to protect overload and short circuit of the system.
2) This product is consist of shell plating, operating mechanism, Instantaneous trip and arc extinguishing equipment
3) It has high breaking capacity and can trip quickly. Its case and body are made of highly fire-protection and shockproof plastic.
4) This product, with long life, is mainly used in AC 50Hz / 60Hz single-pole 230V/400V or two/three/four-pole 400V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment and lighting circuit in normal cases.
|
Electrical features |
Rated current In |
A |
40, 50, 60,80,100 |
|
Poles |
P |
1.2.3.4 |
|
Rated voltage Ue |
V |
AC 230V/400V(1P)\400V(2P,3P,4P) |
|
Insulation voltage Ui |
V |
600 |
|
Rated frequency |
Hz |
50/60 |
|
Rated short circuit breaking capacity(Icn) |
A |
6A-40A:6000A,50A-63A:4500A |
|
Operation short circuit breaking capacity(Ics) |
|
6A-40A:6000A,50A-63A:4500A |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
4000 |
|
Instant releasing type |
In |
C:(5ln-10ln);D:(10ln-16ln) |
|
Dielectric test voltage at ind. Freq. for 1 min |
Kv |
2 |
|
Pollution degree |
|
2 |
|
Thermo-magnetic release characteristic |
|
B, C, D |
|
Mechanical features |
Electrical life |
t |
4000 |
|
Mechanical life |
t |
20000 |
|
Protection class |
|
IP20 |
|
Reference temperature for setting of thermal element |
°C |
30 |
|
Ambient temperature (with daily average≤35°C) |
°C |
-5~+40 |
|
Storage temperature |
°C |
-25~+60 |
