Product Specifications
| Prod Model: |
zl 30f |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Dongfanghong 4108 Turbocharged Engine |
| Gearbox: |
Zl280 Split Torque Converter |
| Brake System: |
Disc Brake |
| Drive: |
4 Wheel Drive |
| Agent Wanted: |
Urgent |
| Walking Mode: |
Wheeled |
| Type: |
Large Loader |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
Product Description
1. Wheel Loader with Weighting System
2.4WD Wheel Loader, Hydraulic Wheel Loader
3. Loader Weight: 3 ton
4.1.9CBM Bucket Loading Capacity
5. Wheel loader truck with Joystick, Hydraulic quick hitch
Features:
Adopting hydraulic-mechanical transmission;
Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the front loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the front loader have good off-road performance, trafficability and more traction;
Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
Using 16/70-24 ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
Brake system adopts vacuum booster, air over hydraulic caliper disc brake on 4 wheels;
This small wheel loader adopts ZL280 integrated torque converter, and the whole machine is fully hydraulic transmission;
This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
Power system adopts DONGFANGHONG 4108 Turbocharge, direct injection, environmentally friendly, 4-cylinder engine to make this front loader have strong power and high acceleration, which greatly increase its high working efficiency;

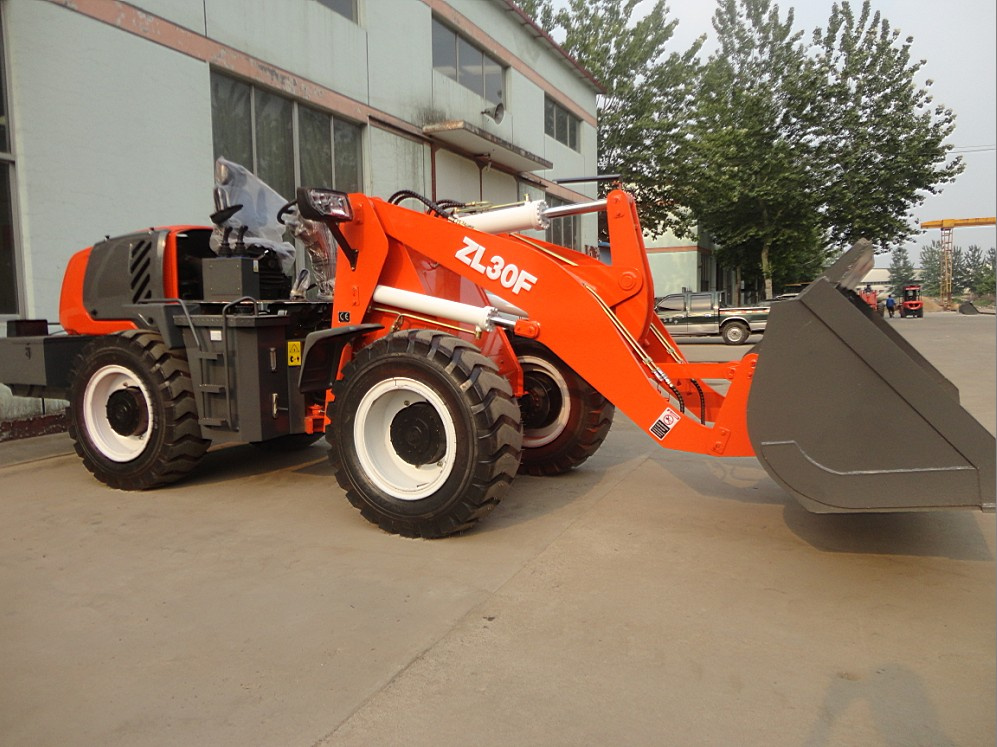

Model: ZL30F wheel loader |
|
|
Item |
Parameters |
|
Performance |
1. Rated Load |
3000 kg |
|
2. Total Weight |
7000 kg |
|
3. Rated Bucket Capacity |
1.9 m 3 |
|
4. Max. Tractive Force |
61 KN |
|
5. Max. Breakout Force |
≥ 72 KN |
|
6. Max. Gradeability |
38° |
|
7. Dumping Height |
3500 mm |
|
8. Dumping Reach |
1300 mm |
|
9. Raising Time |
≤ 6.0 s |
|
10. Total Cycle Time |
≤ 11.5 s |
|
11. Overall Dimensions (L x W x H) |
6900*2050*2950 mm |
|
12. Min. Turning Radius |
3800 mm |
|
Engine |
13. Model |
DONGFANGHONG 4108 Turbocharged Engine |
|
14. Type |
Four-cylinder, Inline, Water-cooled, Four-stroke Engine |
|
15. Rated Power |
75kw |
|
16. Rated Speed |
2400 rpm |
|
17. Min. Fuel Consumption Ratio |
≤ 210 g/kw· h |
|
Transmission |
18. Hydraulic Torque Converter |
ZL280 Split Torque Converter |
|
19. Gear Shift |
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed |
|
20. Max. Speed |
25 km/h |
|
Drive Axle |
21. Model of Axle |
ZL20 Hub Reduction Axle (big) |
|
22. Wheel Tread |
1650mm |
|
23. Wheel Base |
2600 mm |
|
Drive |
24. Mode |
4-way Drive |
|
Hydraulic System |
25. System Working Pressure |
20 MPa |
|
26. Fuel Tank Capacity |
100 L |
|
Brake System |
27. Service Brake |
Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels |
|
28. Parking Brake |
Flexible Shaft Controlled Disc Brake |
|
Tyre |
29. Type Specification |
16/70-24 |
|
30. Front Tyre Pressure |
0.40 Mpa |
|
31. Rear Tyre Pressure |
0.35 Mpa |
Located in the small construction machinery manufacturing base of China, Qingzhou City of Shandong Province, Qingzhou Guohua Construction Machinery Co., Ltd. is a professional small machinery manufacturer specialized in manufacturing of wheel loader, mini-loader, log loader, log grab, grass loader, grass grab, hay loader, hay grab, bale loader, bale grab, snow grader and forklift, as well as the gearbox for these compact construction machineries.
Founded in 1997, our factory covers an area of 15, 000 square meters and now has more than 180 workers. Equipped with complete production equipment, all necessary test devices and 6 senior engineers with over 15 years of experiences in mini machinery R & D, we can manufacture any type of compact construction machineries according to customers' design and requirements (ODM service). We also can provide OEM service for our worldwide customers and partners.
Thanks to our state-of-art technology, all our machineries have reliable performance and efficient operation and are CE approved. Besides providing the whole unit of different machineries, we also can provide quality accessories and parts for those machineries, such as multi-way directional valve (integrated with the priority valve), travel valves, precise filter, gear pump, instrument desk, entire vehicle lines, etc.
Due to the compact design, stable performance and competitive prices, our products sell well in the worldwide market and get favorable comments from our partners and customers at home and abroad. We warmly welcome worldwide distributors, buyers and customers come to visit us to build a mutually beneficial cooperation.
