Product Specifications
| Prod Model: |
NVR7032/64 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating System: |
Linux |
| Max User: |
128 |
| Interface: |
HDMI VGA TV |
| Pre-Record: |
1-30 Sec |
| Post Record: |
10-300 Sec |
Product Description
>Up to 32/64 channel with 1080P realtime live view
>H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
>HDMI/VGA/BNC simultaneous video output
>16 channel synchronous realtime preview, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.3 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 16 SATA HDDs up to 64TB, 1 eSATA up to 16TB,4 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Model
NVR7032
NVR7064
System
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Video & Audio
IP Camera Input
32 channel
64 channel
Two-way Talk
1 channel Input, 1 channel Output, BNC
Display
Interface
1 HDMI, 1 VGA, 1TV
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Display Split
1/4/8/9/16/25/36
1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression
H.264/MJPEG
Resolution
1080p(1920×1080)/720p(1280×720)/D1(704×576/704×480) & etc.
Record Rate
192Mbps
Bit Rate
48~ 8192kbps
Record Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input
16 channel
Relay Output
6 channel
Playback & Backup
Sync Playback
1/4/9/16
Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device/eSATA Device/Internal SATA burner/Network
Network
Ethernet
2 RJ-45 ports (10/100/1000Mbps)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
16 SATA ports up to 64TB, Raid (Redundancy)
External HDD
1 eSATA port
Auxiliary Interface
USB
4 ports (2 Rear), USB2.0
RS232
1 port, For PC communication & Keyboard
RS485
1 port, For PTZ control
General
Power Supply
AC 100V~240V, 50/60 Hz
Power Consumption
NVR: 75W (without HDD)
Working Environment
-10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)

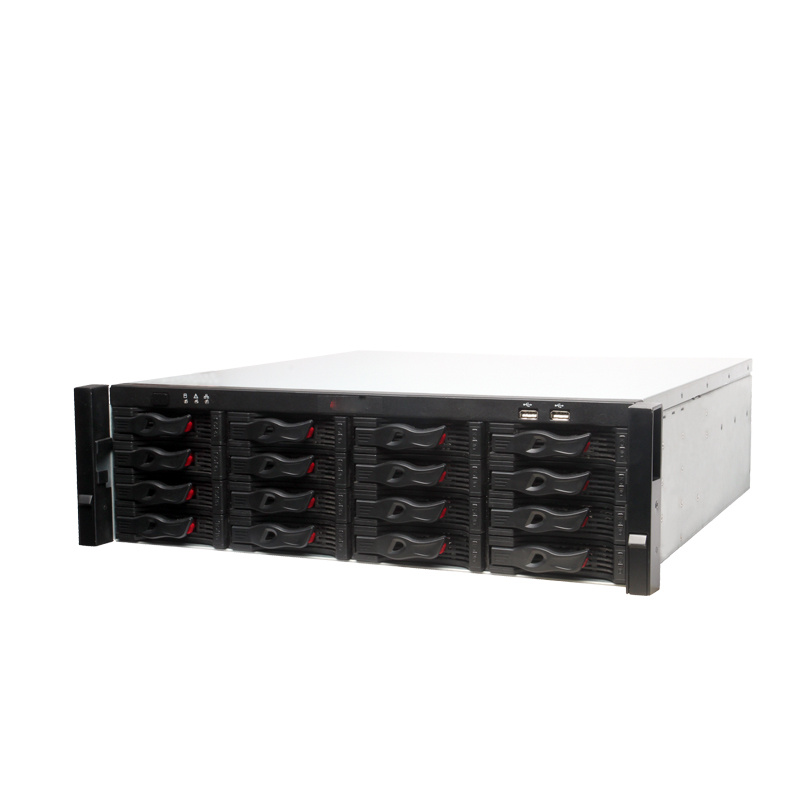

3U, 448mm×490mm×133mm
Weight
10.5kg~11.5kg (without HDD)
