Product Specifications
Prod Model: |
corner raduis end mills |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1-20mm |
Helix: |
35 Degree |
Length: |
50-150mm |
Type: |
Cutter |
Work Type: |
Spot Facing Work |
Material: |
Carbide |
Product Description

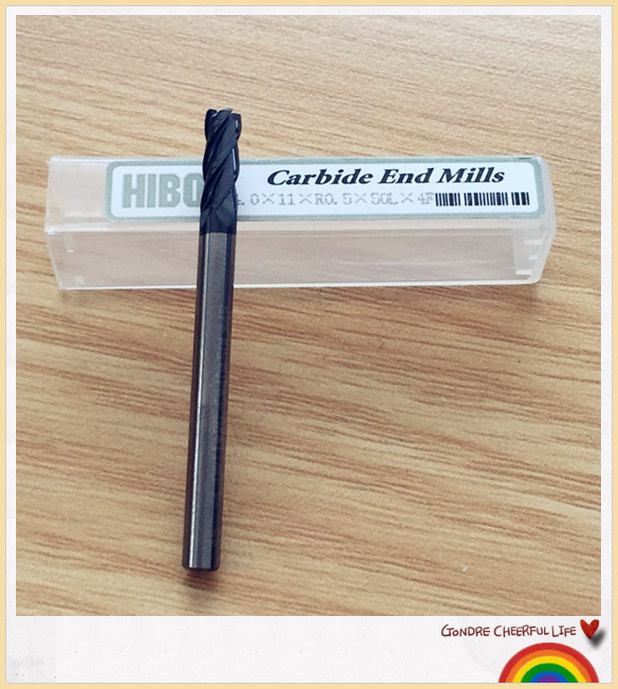

4.0x11xR0.5x4Dx50Lx4F corner raduis milling machine tools
Helix angle: 35°
Upto: HRC60 High Speed
1. Super-Fine Micrograin carbide rod: WC=87.5%, Co=12.5%, TRS>4200N/mm2; Hardness>92.5HRA, Grain size: 0.5um; High qulaity of wearability and impact
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy
order number | cutting | Flute | Shank | Corner | A.0.L |
d | l | D | R Corner | L |
1×3×4D×R0.2×50L×4F | 1 | 3 | 4 | R0.2 | 50 |
1×3×4D×R0.3×50L×4F | 1 | 3 | 4 | R0.3 | 50 |
1.5×3×4D×R0.2×50L×4F | 1.5 | 4 | 4 | R0.2 | 50 |
1.5×3×4D×R0.3×50L×4F | 1.5 | 4 | 4 | R0.3 | 50 |
2×6×4D×R0.2×50L×4F | 2 | 6 | 4 | R0.2 | 50 |
2×6×4D×R0.3×50L×4F | 2 | 6 | 4 | R0.3 | 50 |
2×6×4D×R0.5×50L×4F | 2 | 6 | 4 | R0.5 | 50 |
2.5×8×4D×R0.2×50L×4F | 2.5 | 6 | 4 | R0.2 | 50 |
2.5×8×4D×R0.5×50L×4F | 2.5 | 6 | 4 | R0.5 | 50 |
3×8×3D×R0.3×50L×4F | 3 | 8 | 3 | R0.3 | 50 |
3×8×3D×R0.5×50L×4F | 3 | 8 | 3 | R0.5 | 50 |
3×8×4D×R0.3×50L×4F | 3 | 8 | 4 | R0.3 | 50 |
3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 |
4×10×4D×R0.5×50L×4F | 4 | 10 | 4 | R0.5 | 50 |
4×10×4D×R1.0×50L×4F | 4 | 10 | 4 | R1.0 | 50 |
4×10×6D×R0.5×50L×4F | 4 | 10 | 6 | R0.5 | 50 |
4×10×6D×R1.0×50L×4F | 4 | 10 | 6 | R1.0 | 50 |
5×13×6D×R0.5×50L×4F | 5 | 13 | 6 | R0.5 | 50 |
5×13×6D×R1.0×50L×4F | 5 | 13 | 6 | R1.0 | 50 |
6×15×6D×R0.5×50L×4F | 6 | 15 | 6 | R0.5 | 50 |
6×15×6D×R1.0×50L×4F | 6 | 15 | 6 | R1.0 | 50 |
8×20×8D×R0.5×50L×4F | 8 | 20 | 8 | R0.5 | 60 |
8×20×8D×R1.0×50L×4F | 8 | 20 | 8 | R1.0 | 60 |
8×20×8D×R1.5×50L×4F | 8 | 20 | 8 | R1.5 | 60 |
10×25×10D×R0.5×50L×4F | 10 | 25 | 10 | R0.5 | 75 |
10×25×10D×R1.0×50L×4F | 10 | 25 | 10 | R1.0 | 75 |
10×25×10D×R1.5×50L×4F | 10 | 25 | 10 | R1.5 | 75 |
10×25×10D×R2.0×50L×4F | 10 | 25 | 10 | R2.0 | 75 |
12×30×13D×R1.5×50L×4F | 12 | 30 | 12 | R1.5 | 75 |
12×30×13D×R2.0×50L×4F | 12 | 30 | 12 | R2.0 | 75 |
We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.
Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.
Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
