Product Specifications
| Prod Model: |
TG6044 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Tengcon |
| Transmission Error: |
0.1 Degree, 0.2 Degree |
| T Emperature Drift: |
Superior to 0.1% Fs/10 Degree Centigrade |
| Current Output Load: |
4~20mA |
| Dimension: |
16X116X110 (mm) |
| Weight: |
About 110g~120g |
| Operating Temperature: |
-20~60 (Centigrade Degree) |
| Supply Voltage: |
20~30VDC |
| Application: |
Industrial |
Product Description

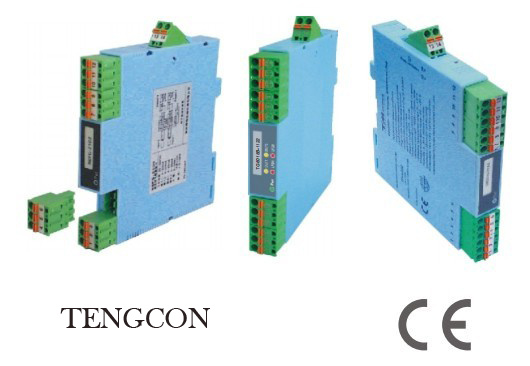

Tengcon TG6044 4-20mA Power Distribution Isolator with 2input/2output
| Brand | Tengcon |
| Dimension | 16*116*110mm |
| Weight | 110-120g |
| Working Temp | -20~+60 |
| Power Supply | 24VDC Range from 20-30VDC |
| Input/Output | 2 input/2 output |
| Input Signal | 4-20mA,0-20mA,0-10mA,1-5v,0-5v,0-10v |
| Output Signal | 4-20mA,0-20mA,0-10mA,1-5v,0-5v,0-10v |
Specifications
1.power supply for site instruments2.signal isolated transfer3.signal conversion4.signal allocation in many ways5.alarm driving
TENGCON TG6044 Pt100 1-1 isolators
1. Modular design, clamping structure
2.Plug-in wire terminal, independent power wire terminal,and availability of plugging with power for convenience of installation, wiring and maintenance.
3.Series with CE certificate
TG 6000 series is a kind of electrical interface equipment developed by our company which is applicable for non-explosion-proof areas and can be used to connect site instruments and control room. Through reliable power-input-output isolation, it can resolve the site interference of auto-control system and make sure the stability and reliability of the system.
Technical parameters
1.Power requirement: 20~30VDC;
2.Power with general rated value: 24VDC;
3.Transmission error: 0.1 degree, 0.2 degree(temperature transmitters);
4.T emperature drift: Superior to 0.1% FS/10°C(allowed temperature range);
5.Response time: < 1s (10~90%);
6.Stabilizing time: about 3~5s;
7.Current output load: 4~20mA, ≤5 50Ω;
8.V oltage output inner impedance: inner resistance ≤5 00Ω;
9.Dielectric strength (among input/output/power supply/instrument housing and wire terminals): ≤5 00Ω;
10.Insulation resistance (among power supply/input/output): ≥1 00MΩ;
11.Operating temperature range: -20~+60°C;
12.Shipping and storage temperature range: -40~+80°C;
13.Operating humidity allowed: 5~95%RH (no condensation);
14.Operating aTGospheric pressure: 80~106KPa ;
15.Electromagnetic compatibility: in accord with 89/336/EEC, IEC/EN 61000;
16.Protection grade: IP20 ;
17.Housing material: PC+ABS;
18.Installation: 35mm standard rail clamping installation;
19.Cable in use: 0.5~2.5mm wire;
20.Dimension: Width × h eight × l ength = 16× 116× 110 (mm);
21.Weight: about 110g~120g;
Dimension diagram
Model selection
Introduction. Main T echnical Specification
Power supply isolator Supplies isolated direct current power for site transmitter, input 4~20 mA current signal from the transmitter , and outputs DC current or voltage signal to the control system or other instrument units after isolation and anti-interference.
The power supply isolator adopts independent DC power supply with power-input-output isolated.
P ower supplyPower supply: 20~30VDC
Current consumption (when 24VDC is supplying):
< 45mA (single-channel)
< 60mA (single-channel, dual-output)
< 70mA (single-channel, tri-output)
<92mA (two-channel)
I nput
Input signal: 4~20mA direct current signal of transmitter
Input impedance: 50Ω (single channel, single channel, dual-output);
100Ω (two-channel)
Supply voltage for transmitter: ≥ 16V (Power≥ 22VDC)
Maximum input current: About 24mA
O utput
Output current: 4~20mA; 0~20mA; 0~10mA; other specified current
Output voltage: 1~5V; 0~5V; 0~10V; other specified voltage
Allowed output load: 0~550 Ω (Power ≥2 2VDC at full load of 550Ω)
Voltage output impedance: ≤5 00Ω
Output ripple: < 10mVp-p
G eneral technical parameters
Transmission error: ± 0.1%
T emperature drift: ± 0.015% / °C
Startup response time: < 1s (10~90%)
Power change error: ± 0.1% (voltage scope 20~30VDC)
Dielectric strength: 1.5KV, 1 min, 50Hz among input- output- power
Insulation resistance: ≥ 1 00MΩ/500VDC among input- output- power
Operating temperature range: -20~+ 60°C
Dimension: Width× h eight × l ength = 16× 1 16 × 1 10 (mm)
