Product Specifications
Prod Model: |
MO-144D, CS-405 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
4.3 Inches |
Type: |
Monitoring System |
Technology: |
Infrared |
Application: |
All-Round Monitoring |
Kind: |
Autofocus Lens |
Feature: |
High Definition |
Sensor: |
CCD |
Product Description

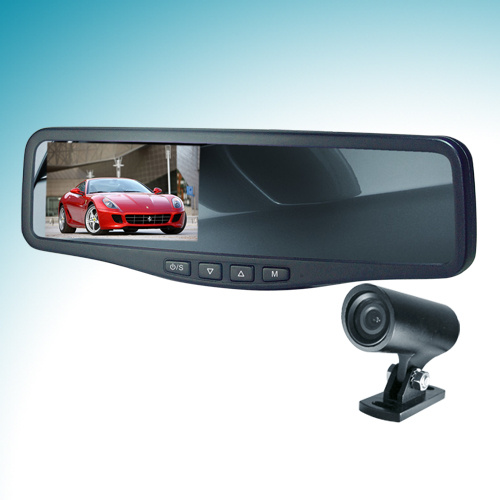

4.3- Inch Rearview Mirror Monitor System for Vehicle Reversing Video Safety (MO-144D, CS-405)
Touch button monitor features-MO-144D:
Mounting position: Inner side of vehicle windshield (rear mirror position of vehicles)
Mirror viewing angle: Rear viewing angle adjustable
Shatterproof standard: 2.84G
Working condition: Performs in rugged conditions; Operating temperature: -20º C~+70º C
Distance label can be turned on or off, and can be adjusted up and down.
Backlighting for buttons: Automatic backlighting in dim light.
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved)
Power supply for camera, easy installation.
Wide voltage input: Support 12V and 24V system
Side view camera cs-405 features:
Waterproof and weather resistant housing for outdoor use
Compact size
1 / 4" COLOR CCD SENSOR SPECIFICATIONS
Without Audio and IR
Image Device: SHARP
TV System: PAL / NTSC
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm
Scanning System: 2: 1Interlace
Sync. System: Internal
Resolution: 420TV lines
Minimum Illumination: 1 Lux/F1.2
Horizontal Sync. Frequency: 15.625KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10, 000 Seconds
BLC: Auto
Current Consumption: Max. 100mA
Power Supply: DC12V
Operating Temperature: -20~70, RH95% MAX
Storage Temperature: -40~85, RH95% MAX
Lens: F=3.6mm / F = 2.0
Lens Angle: 69°
