Product Specifications
Prod Model: |
DW144D, CW637, CW085, WT434 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
4.3 Inches |
Type: |
Monitoring System |
Feature: |
High Definition |
Product Description

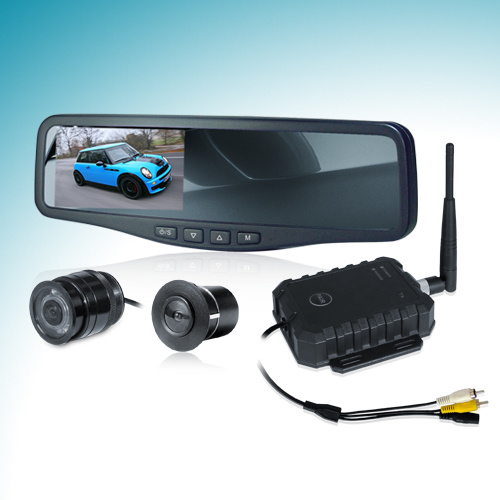

4.3 Inches Rearview System with Built-in Wireless
Features of Monitor (DW-144D):
Mounting position: Inner side of vehicle windshield (rear mirror position of vehicles)
Mirror viewing angle: Rear viewing angle adjustable
Shatterproof standard: 2.84G
Working condition: Performs in rugged conditions; Operating temperature: -20º C~+70º C
Distance label can be turned on or off, and can be adjusted up and down.
Backlighting for buttons: Automatic backlighting in dim light.
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and
Saved)
Power supply for camera, easy installation.
Wide voltage input: Support 12V and 24V system
Features of Camera (CW-637):
CMOS sensor with CCD image
Super wide angle (180° )
Color CCD and CMOS chips available
Compact size for more convenient installation
Waterproof camera for long-term outdoor usage
Embedded-type, specially designed for car Rear view systems
Features of Camera (CW-085):
Waterproof and weather resistant housing for outdoor use
Embedded-type, specially designed for car rear view systems
Night vision available
IR distance: 8 m
Day / Night sensor for automatic adjustment
Super wide angle (180° )
Features of Transmitter (WT-434):
2.4G digital wireless transmitter
Power supply: 12v-32v
Supply 12v voltage for camera
Metal housing, solid, suitable for outdoor use
Waterproof protection level equals to IP69K
Indication:
Power: Power on the transmitter, and the light is on red
Code-match: Press "PAIR" button, and the blue light is twinkling
Correct code-match: The blue light is on and does not twinkle.
