Product Specifications
Prod Model: |

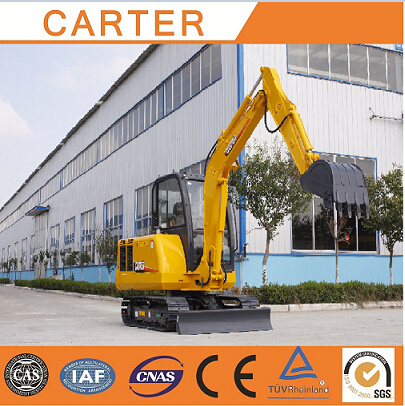

CT45-8BS crawler excavator |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
5500*1750*2455(L*W*H): |
Ground Clearance350 Mm |
Operating Weight 4200 Kg: |
Tracking Force 34.1kn |
Travel Speed:4.4/2.7 Km/H: |
Arm Digging Force:20.4kn |
Boom Length 2560 Mm: |
Arm Length 1450 Mm |
Engine Power [email protected]: |
Gradeability 30(58%) |
Bucket Digging Force 23.7 Kn: |
Ground Pressure 36kpa |
Swing Speed 11rpm: |
Flow/Pressure10.8L/Min@2200rpm/4.9MPa |
Rear Swing Radius 1.600 Mm: |
Tumbler Distance 1.710 Mm |
Max Dozer Lifting Height 255 Mm: |
Max Dozer Cutting Depth 380 Mm |
Type: |
Crawler Excavator |
Size: |
Small-Scale |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Bucket Capacity: |
0.07m3--0.3m3 |
Product Description
1.10 years of experience:
When the Shandong Cater Heavy industry Machinery Co., ltd was founded in 2004, we are the manufacturer of the Excavator and Roadheader in China. Now we have development into a fullboom manufacturing and exporting business with own 11 different types of crawler excavator and roadheader.
2. Certified quality control systems and guarantee system.
As a supplier of machinery in China, our products have gained high reputation from customers. We have got CE certificated, TUV certificate, China ISO9001 certificate. Some of our parts are sourced from the US, England, Italy and Japan for added quality and reliability. We confident in our products with one-year warranty with each one.
3. Other terms:
Warranty Term:
1200 working hours or 1 year, whichever come first...Some spare parts will be accompanied with the machine when shipment...If there are any damaged parts, we will supply for free by air-mail or express as soon as possible in the warranty time...
Payment Term:
30% T/T in advance, and the 70% before shipment(negotiable) or Irrevocable L/C payable at sight...
Time of delivery:
30 days for models with standard equipment, after receipt of L/C or 30% T/T down payment
OEM:
OEM is possible if needed...
Certified quality term:
Carter excavator have passed CE certification, ISO 9001...The mainly hydraulic system is imported from Japan, Korea, USA for added quality and reliability...
Video or picture:
The processing of production, we will supply you 15pcs photos to show the condition of production to you.
Specification of CT45-8B with cabin |
Operate weight kg | 4200 |
Bucket capacity M3 | 0.17 |
Engine model | YANMAR 4TNV88 @27KW |
Engine power(kw) | 27 |
Swing spreed(rpm) | 11 |
Ground pressure(Kpa) | 29 |
Travel speed(km/h) | 4.4/2.7 |
Tracking force(kn) | 34.1 |
Gradeability(°) | 30 |
Main dimensions |
Upperstrcuture witdth(mm) | 1600 |
Undercarriage width(mm) | 1750 |
Cabinet hight(mm) | 2455 |
Rear swing radius(mm) | 1600 |
Ground clearance(mm) | 350 |
Working range |
Max.digging radius(mm) | 5530 |
Max.digging depth (mm) | 3405 |
Max.digging height(mm) | 5030 |
Max.dumping height(mm) | 3410 |
Max.dozer cutting depth(mm) | 380 |
Max.dozer lifting hight(mm) | 255 |
Shandong Carter Heavy Industry Machinery Co., Ltd. is a professional company specializing in the manufacture and export of complete sets of Mini excavators, covering 1.8 tons, 4 tons, 4.5 tons, 6 tons, 8 tons, 8.5 tons. Middle size excavators, CT150, CT220, CT240, CT330. We also supply Mining Road headers, Wheel Loaders, tyres.
We equip our Carter mini excavator with most famous brands: 1) Cummins or Yanmar engine, 2) KYB or Eaton main valve, pump, swing motor and walking motor, 3) KYB, 4) Komatsu supplies undercarriage and upperstructure, boom, stick and bucket for us. All of these offer Carter excavator reliable quality and perfect performance.
The Carter excavators meet CE approved.
More information, please feel free to contact us.
