Product Specifications
| Prod Model: |
TF-0400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
FC/Sc/LC/St/Mu/MTRJ/E2000 |
| Brand: |
Takfly |
| Allowed Lateral Pressure: |
100(N/100mm) |
| Allowed Tensile Strength: |
<100n |
| Core: |
Simplex, Duplex, Quard, 12 Cores |
| Sheath Material: |
PVC, Lszh, Ofnp |
| Application: |
Communication, Art, Sensor, Medicine, Probe, FTTH, |
| Connection Structure: |
Sc/LC/FC/St/Mu/MTRJ/MPO/E2000 |
| Material Shape: |
Round Wire |
| Place Of Origin: |
Shenzhen of China |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Optic Pigtail |
Product Description

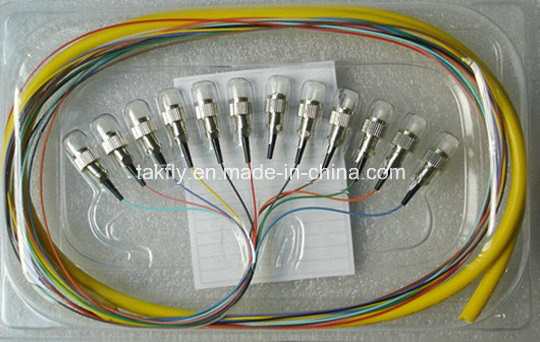

4, 6, 8, 12, 24, 48 Fibers Optional Ribbon multi-fiber Optic Pigtail for Telecommunication
Bundle multi-fiber pigtail
Details:
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
Bundle multi-fiber pigtail
Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm
Application:
Test equipment
Optical CATV & LAN
Telecommunication networks
Optical communication networks
| Parameter | Unit | Bundle multi-fiber connector |
|
|
|
|
|
| SM |
|
|
| PC | UPC | APC |
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 |
|
|
|
| Return loss | dB | ≥45 | ≥50 | ≥60 |
|
|
|
| Operating wavelength | nm | 1310, 1510 |
|
|
|
| Exchangeability | dB | ≤0.2 |
|
|
|
| Vibration | dB | ≤0.2 |
|
|
|
| Operating temperature | degree | -40~75 |
|
|
|
| Storage temperature | degree | -45~85 |
|
|
|
| Cord diameter | mm | φ3.0,φ2.0,φ0.9 |
|
|
|
| Fiber count | F | 4, 6, 8, 12, 24, ^ fibers |
|
|
|
| Applicable connector |
| FC, SC, ST, MU, LC |
|
|
|
