Product Specifications
| Prod Model: |
TH-2004D-300R |
| Certification: |
ISO |
| Application: |
Wood Spraying Equipment |
| Method Type: |
Automatic |
| Type: |
High Pressure Airless Spray Equipment |
Product Description

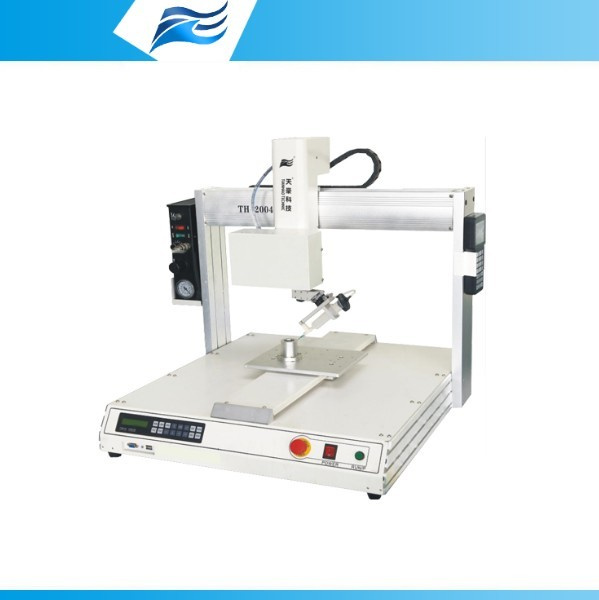

TH-2004-300R 4 axes robots for automatic dispensing of adhesives, liquid gaskets, resins and UV materials.
Four axis and four-linkage running R-axis: 360° Rotary.
Compared with similar products, the dispensing robot full realization of the four-axis and four linkage run. This machine solved the trouble with four space trajectory dispensing in the workpiece as like the outer wall, vertical, or within the gap dispensing line or circles.
1. A Professional dispensing software combination of feed system and arm running control to achieve the synchronization control. Teach Pendant Chinese/English edit programs interface
2. Z-axis have brake motors, greatly increasing the stability of the equipment and its motion accuracy. When that 6kg maximum z axis load will remain in a upper position after switching off the power.
3. User-friendly design features a lightweight, attractive appearance, easy to learn. Interpolates lines or arcs for three-dimensional dispensing., Continuous path motion for precise XYZ dispensing. The right deposit, in the right place _ every time.
4. Single machine can operate. Avoid staff misuse, or change has set a good program, When you finish the program edit by the soft control key directly control robot work without the need for an external Teach Pendant.
5. Easy maintenance. Even if the teaching Pendant and liquid controller have problems, there will not have no affect the machine's work. Single machine can operate.
6. Increase the parameters display with programmer, which will provide you more intuitive operation.
7. Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files, CAD file directly change to the dispensing path.
8. The Z-axis have brake motors, greatly increasing the stability of the equipment and its motion accuracy. When that 6kg maximum z axis load will remain in a upper position after switching off the power.
9. Each axis with 2 linear guide rail will provide you better stability.
10. As customer production require add the I / O interface, easy add other equipment device, Flexible power supply design for overseas use.
11. A XY work range increased of 20MM.
12. XY/Z Maximum Load 15KGS/6KGS
13. Repeatability: +-0.01 mm/ axis, 3 axis synchronous work get +-0.01 mm/axis, other competitors no possible 3 axis get this precision at same time.
14. Transmission: New timing belt/precision linear Guides.
15. Drive System: New precision micro-stepper motor.
TianHAO DispensingTM company is the first manufacturer of high precision fluid controlling system in China, Company was founded in 2000 years, from company was established to now, we truly assist users update high-tech manufacturing process., Achieve efficient, accurate, fast, energy-saving and environmental dispensing Process, The precise dispensing systems are apply accurate, consistent amounts of the adhesives, sealants, lubricants and other assembly fluids used in virtually every manufacturing process accurately and consistently. We can ensure that the correct amount of fluid is applied at every time, on every part, to every item. Our products have gotten the CE certificate, and have been exported to Western Europe and the Middle East. North America.
