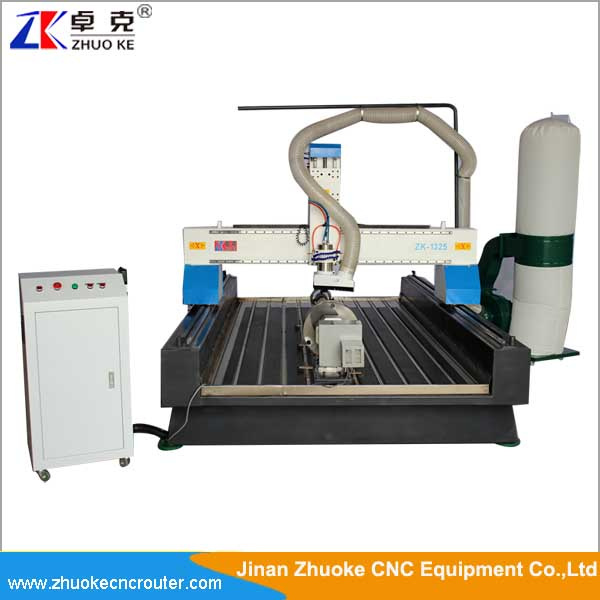

4 Axis Woodworking CNC Machinery for Engraving and Cutting

Product Specifications

Prod Model:	ZKM-1325B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	4 Axis Woodworking CNC Machinery for Engraving and
Material:	T-Shape Iron Gantry
Spindle Power:	3kw Water Cooling
Transmission Way:	Xy Rack Gear, Z Ballscrew
Guide Rail:	Linear Square Guide Rail (Hiwin)
Driving Way:	Step (Xyz 86byg-450A)
Table:	T-Slot Working Table
Control System:	DSP Offline Control
Auto Tool Feeler:	Yes
Other Parts:	Dust Collector, Rotary Axis
Controlling Mode:	CNC
Feed Mode:	Manual
Spindle Number:	Single-Spindle
Spindle Layout:	Spindle Underneath
Certification:	SGS
Color:	Optional

Product Description

china wood working cnc router machine with air cooling spindle

Applicable Industries
Advertisement engraving and cutting, handicraft industry, advertisement logo, crystal word making, toys and gifts, artwork engraving, various types of man-made plate, LED, neon literally cutting groove, plastic molding light bow, interior decoration industry, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, building, small metal, stationery, rulers, badges, department card, a variety of signs, trademark processing, etc.

Applicable Materials
Organic glass, acrylic, ABS, PVC, MDF, double-color board, copper, aluminum composite panel, wood, ox horn, marble, copper, aluminum industry, 3D technology, acrylic cutting, wave board, man-made stone, wood etc.

Models
ZK-6090, ZK-1015, ZK-1212, ZK-1215, ZK-1218, ZK-1224

Machine Characters

1. Linear square guide rail for X Y Z-axis and rack transmission, high precision and long life time.
2.T-slot working table, aircraft aluminum covered PVC.
3. 3.2KW water cooling spindle, more powerful and not easy to break tools. two spindles makes sure the machine working effeciency.   Two Z axis spindle adopt air cylinder,
4. Working table lower than the normal machine to make sure the machine stable when working. Feeding wheel on the working table side makes put heavy stone easy.
5. 500mm Z-axis feeding height, better for the more thickness materials processing.Also suitable for 300mm rotary axis.
6. Well selected electrical accessory, let the failure rate to the minimum.
7. Intelligent protecting the working table, to prevent the damage by wrong operation. Also can prevent the crush caused by the design working area larger than actual working area.
8. Emergency stop button, ensuring the operation safe.
9.Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.

10. DSP offline control system. you can control the machine without computer.

12. Break points, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.

13. rotary axis for round or square material, diameter 300mm, working length 1200mm.  You can also choose the one you need


Machine parameter table

Items	configuration
Certificate	CE
XY-axis working area	1300*2500mm
Material	Welded steel pipe machine holder and machine bed, cast iron vertical shafts and transom
Moving way	Gantry moving
Working table	Aircraft aluminum with T slot
Guide way	XYZ-axis linear square guide rail
Driving mode	XY rack gear, Z ballscrew
Z-axis working area	500mm
Max traveling speed	24000mm/min
Engraving speed	18000mm/min
Mechanical precision	0.05mm
Driving method	step motor
rotary axis	yes: diameter 300mm, 1200mm working length
Spindle	3.2KW water cooling spindle
Spindle speed	18000rpm
Collet type	ER25
Tools diameter	3.175mm, 4mm, 6mm,8mm,10mm,12.7mm
Control system	DSP offline control system
Design software when delivery	Artcam
Compatible design software	Artcam, Type3, Ucancam, JDPaint, MasterCAM
Command	G code ,U00, mmg nc,etc
Running ambient temperature	0-45°C
Relative humidity	30%-75%
Voltage	AC 380V,50/60Hz, three single phase

FAQ:
Q1: Are you factory or trading company?
We are company, which manufactures CNC Router, with 4 years experience in CNC Router area. Welcome to visit our factory whenever.
Q2: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.
Q4: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q5: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

PRE-SERVICE
Offer us a caill, even cooperate with us or not, you may get unexpected harvest. We could discuss the future development of this line together accroding to many years' experience in selling and producing which could help to enlarge the profits and improvement for both of us.
Studying customers' requirement carefully, we could help clients to choose the best suitable machine and also will offer you the relative samples and suggestions promptly and consinderately to customer's production scale and technical requirement.

SELLING SERVICE
Promptly and patiently answer customer's questions. Put our heart and soul into service for customer, including supply some suggestion on choosing the place, play maximum value of Jinan Zhuoke CNC.

AFTER-SALE SERVICE
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.

Machine factory show:



Any questions, contact me when free, we will never let you down!
