Shenzhen Tokia Technology Co., Ltd. >> 4-CH Net DVR Kits 1/3 4 PCS 480tvl Dome Camera with+5CH Power Distribution Wire+ DC12V/5A Power +IR Controller+Video/Power Cable (TK-4005K)

4-CH Net DVR Kits 1/3 4 PCS 480tvl Dome Camera with+5CH Power Distribution Wire+ DC12V/5A Power +IR Controller+Video/Power Cable (TK-4005K)

Name: 4-CH Net DVR Kits 1/3 4 PCS 480tvl Dome Camera with+5CH Power Distribution Wire+ DC12V/5A Power +IR Controller+Video/Power Cable (TK-4005K)
Brand: china-manufacturer-directory.com
SKU: 683786392
Availability: InStock
Rating: 4.8 (141 reviews)

Supplier:	Shenzhen Tokia Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TK-4005K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
TV Lines Of Camera:	480tvl
Feature:	4CH DVR
Technology:	Wireless
Sensor:	CCD
Horizontal Resolution:	480tvl
Type:	4CH DVR Kits
Style:	Dome Camera

Product Description

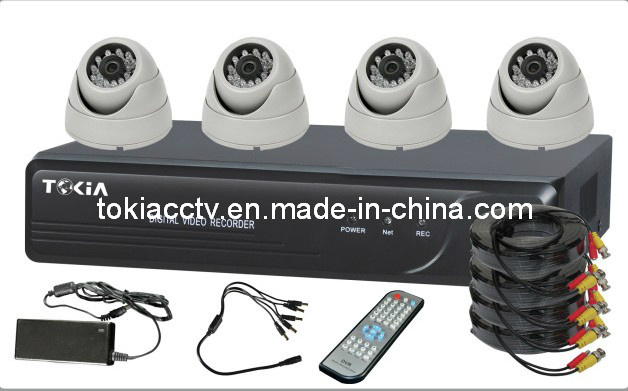

Security DVR kit Packing List:

1.1× 4CH H. 264 Stand-alone DVR
2.4× 1/3 Sony CCD dome Cameras ( 480TVL, 3.6mm lens)
3.1× 5CH Power Distribution Wire
4.1× DC12V/5A Power
5.1× IR Controller (Use on DVR)
6.4× Video/Power cable (20M)
7.1× SATA HDD(Optional, )

Features:
4CH H. 264 Realtime Net DVR
High Quality Video Display: Pal(704*576); NTSC(720*480)
Two Passwork Management
USB or Network Backup and Update
Atuo Data Rollover Recording
Support Motion Detection
Support Net View, Moblie View
Support Dynamic IP and DDNS
Support Max 2TB HDD (100 Days Record Capacity)
Packing List:
4CHNet DVR 1 Set (without HDD)
HD Day/Night Camera 4 pcs(3 combination selectable)
Bracket 4 pcs
20M Video/Power Cable 4 pcs
1--5 DC Convert Connector 1 pcs
DC12V/5A Power 1pcs
Manual 1pcs

Project:	Specification and parameters
Channel:	4 ch
Video signal:	PAL system (25 frames / sec) NTSC system (30 frames / sec)
Video input:	BNC(1.0Vp-p/75Ω)×4
Video output:	Composite Video: 1.0V pp/75Ω, BNC connector × 1( VGA × 1)
Network mode:	10/100M adaptive, support LAN, WAN and ADSL dynamic IP networking
Monitoring methods:	IE monitoring, phone monitoring,
Control:	support for the mouse, remote control,
Backup mode:	support USB and Network Backup
Resolution:	PLA system: Display Resolution: 720 × 576 compressed resolution: 352 × 288 NTSC system: Display Resolution: 720 × 480 compressed resolution: 352 × 240 Playback Resolution: 1CH D1+3CH CIF
Compression Standard:	H.264
Hard disk:	one large hard drives 2000G
Security features:	two password management
Power supply:	DC 12V/2A
Power:	6W (without hard drive)
Temperature:	Operating temperature: +5 °C ~ +50 °C; humidity: <90% Storage temperature: -20 °C ~ +°C; humidity: <95%
Dimensions:	220×44×215mm(W × H × D)

TOKIA develops and manufactures digital surveillance products, including CCTV camera DVR cards, Standalone DVR, HD IP cameras and accessories. We deliver 80% of our output to the US, with active clients in South America, Europe and Southeast Asia as well.

Small order delivery lead time: 3 days
Source your CCTV cameras from us and benefit from our supplier flexibility. TOKIA can deliver your order of 100 units in just 3 days. Backed by seven partner factories, we have a monthly capacity of 100, 000 CCTV Cameras. Piece-by-piece check ensures our products meet your requirements. Two-year warranty is provided.

Samples shipped the next day
Tokia has been working with domestic and overseas companies, technological universities and research organizations to develop new products. Samples are shipped the next day. Online technical support is also available.

Browse through our online showroom for detailed product specifications. Call, fax or e-mail us today with your inquiry.
