Product Specifications
| Prod Model: |
LC-SPM4-150/16T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Printing Speed: |
1800PCS/H |
| Transmission Type: |
Multi-Color Pad Printer |
| Speed（pcs/hr）: |
1800 |
Product Description

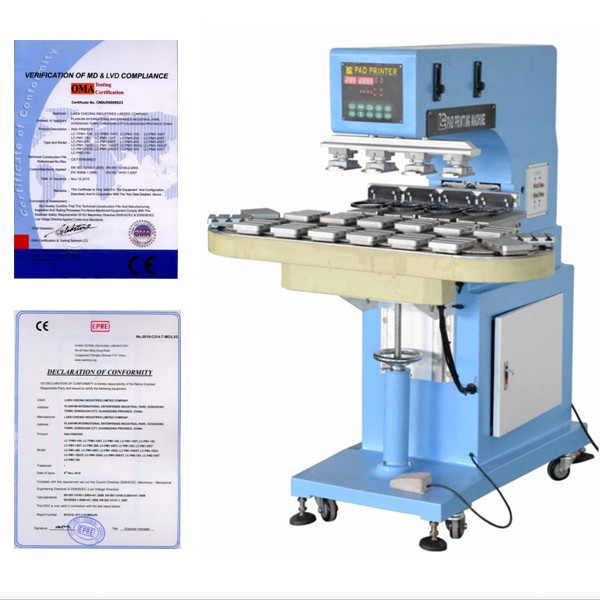

Tampo pad printing machinery
1. Four color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. Coin aluminium structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating envirment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9.4-color, 3-color, 2-color, 1-color printing available,
10. The four ink cup can be independently adjusted for color registration;
12. With air jet for fast drying;
LC-SPM4-150/16T
1. Max. Plate size: 100*250mm
2. Max. Worktable area: 90X125mm
3. Sealed cup diameter: 90mm
4. Max Printing area: 80*120mm
5. Max. Printing speed: 1800PCS/h
6. Printable colours: 4
7. Air consumption: 154Litre/min(6bar)
8. Dimensions: 1040X710X1420mm
9. Weight: 205Kg
Free match
1. Four PCS steel plate
2. Four PCS rubber pad
4. English operating instruction
Price Terms EXW FACTORY
Payment Terms T/T WESTUNION
Packing Wooden case
Lead Time 5 DAYS AFTER PAYMENT
SKU 5 SETS
Standards Certificate CE
Cubic Meter 2.5
Machines Fittings SILICONE PADS, STEEL PLATE
Gross Weight 250KG
Main Parts CYLINDER MADE BY Germany
Application area TOYS, PLASTIC, ELECTRON PRODUCTS,
|
Model No |
LC-PM4-150T |
LC-PM4-200T |
LC-PM4-150/16T |
LC-PM4-200/16T |
LC-PM4-150LT |
LC-PM4-200LT |
LC-PM4-150/18LT |
LC-PM4-200/18LT |
|
Printing Colors |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
station |
1Pcs |
1Pcs |
16Pcs |
16Pcs |
1Pcs |
1Pcs |
18Pcs |
18Pcs |
|
Plate area |
100× 250mm |
100*300mm |
100× 250mm |
100× 300mm |
150× 300mm |
150× 350mm |
150× 300mm |
150× 350mm |
|
Sealed ink cup diameter |
60 or90mm |
60 or90mm |
60 or90mm |
60 or90mm |
140mm |
140mm |
140mm |
140mm |
|
Workbench size |
195× 165mm |
195× 165mm |
90× 125mm |
90× 125mm |
195× 165mm |
195× 165mm |
140× 165mm |
140× 165mm |
|
Max printing speed |
900 pcs/hr |
900 pcs/hr |
1800 pcs/hr |
1600 pcs/hr |
800 pcs/hr |
500 pcs/hr |
1600 pcs/hr |
1300 pcs/hr |
|
Air pressure |
6bar |
6bar |
6bar |
6bar |
6bar |
6bar |
6bar |
6bar |
|
Wattage: |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
AC110V/220V |
|
Machine size (CM) |
98× 71× 142 |
130× 76× 140 |
104× 71× 142 |
104× 76× 142 |
104× 91× 142 |
104× 96× 142 |
160× 130× 147 |
1600× 1400× 1470 |
|
Machine weight |
170kg |
200kg |
205kg |
210kg |
230kg |
240kg |
260kg |
270kg |
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine. We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.
With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products
We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows:
(1) Full Automatic UV Screen Printer
(2) Plane/Cylinder Semi-Automatic Silk Screen Printer
(3) Manual AD Silk Screen Printer
(4) Multi-Colour Sealed Ink Cup Pad Printer
(5) Multi-Colour Open Ink Tray Pad Printer
(6) UV Curing Machine & IR Dryer Oven
(7) Hot Foil Stamping Machine
(8) Heat Transfer Printing Press
(9) Machine Equipment Pre-Post Printer
Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc.
We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine.
We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.
