Product Specifications
| Prod Model: |
FJL-4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Flat-bed Cylinder Press |
| Color & Page: |
Multi-Colour Printing Press |
| Style: |
Letter |
| Usage: |
Plastic Cup Printing |

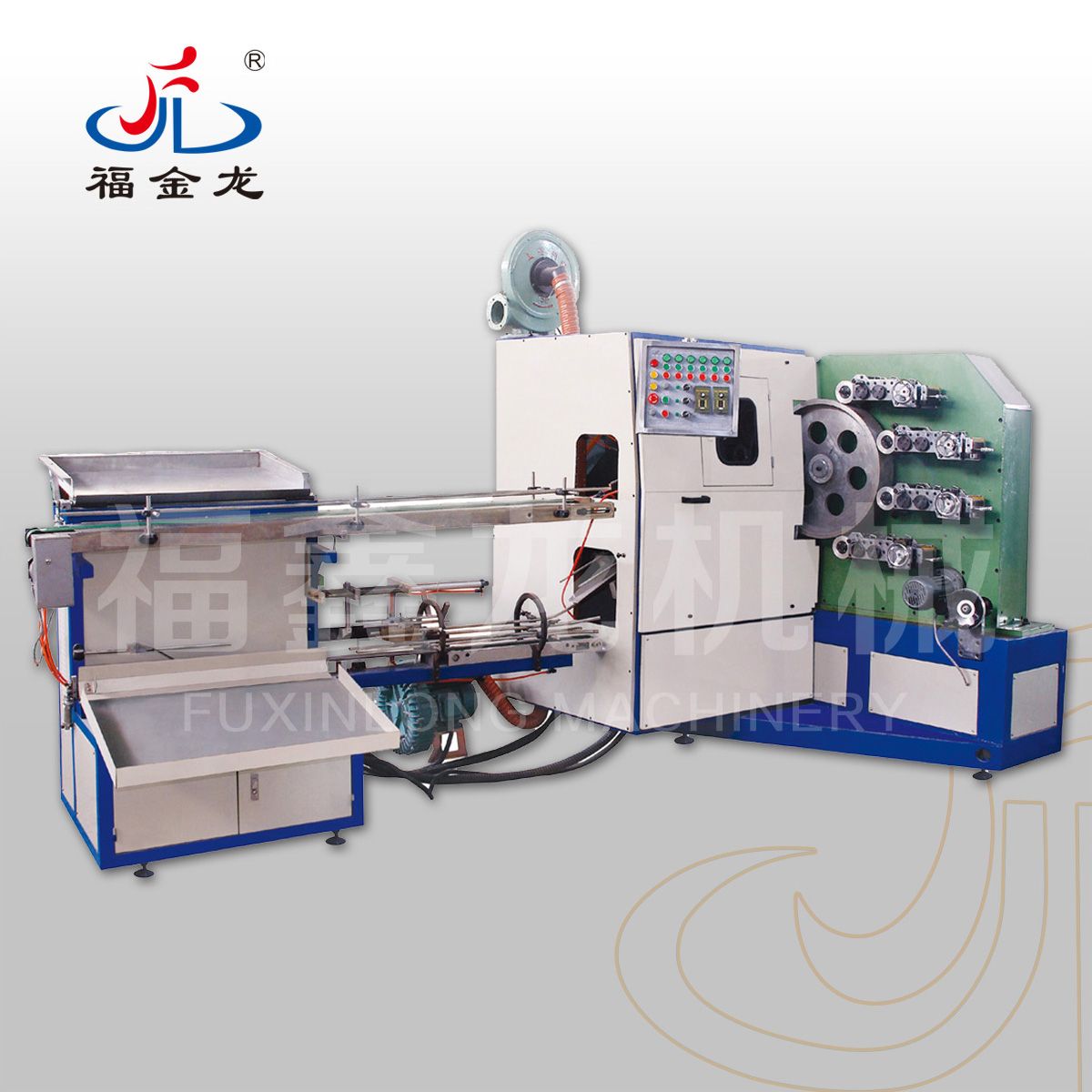

Product Description
Structure Performance
It feeds cups in 45 degrees and adopts corona pre-treatment\mandrel UV curing, so printed pattern is clear and real.
Main motor mounted with three-phase frequency conversion speed adjust\timing belt drive\stepless speed regulation, functions steadily without noises.
Convenient to adjust quantity of ink and pressure of ink distributing roller, and the ink supply is ideal. When fix forme, locating spring can automatically tighten, and it is easy to load or unload the forme, as well as chromatography.
Printing cylinder and forme roller assembled with cantilever are easy to clutch and adjust pressure.
Main Parameter:
Printing diameter
(mm) | Max. printing length
(mm) | Max. printing bevel
( ° ) | Max. printing speed
(cups/hour) | Total power
(kw) | Overall dimension
(mm) |
| ¢ 40-¢ 105 | 110 | 12 ° | 10000 | 13.8 | 6600 × 3000 × 2700 |
