Product Specifications
| Prod Model: |
ITX-A75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rear I /O: |
4* DVI |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
AMD |
| Maximum Memory Capacity: |
16G |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| Printed Circuit Board: |
Six Layer |
| Main Board Structure: |
Integrated |
| Audio Effects: |
Not HiFi |
| CPU Socket: |
AMD® Trinity Apu A6-4455m |
Product Description

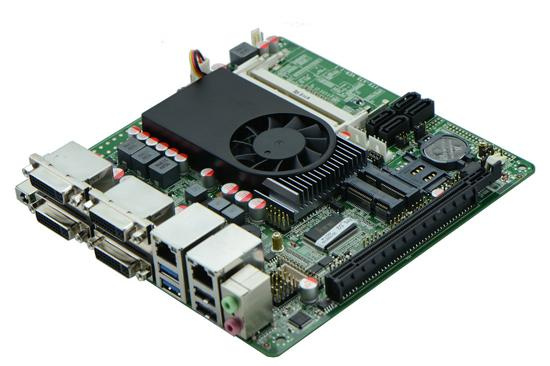

4*DVI A75 AMD Motherboard Support WiFi and DC 12V input for gaming machine
Specifications
Onboard AMD Trinity APU A6-4455M Duo Core 2.1GHz;
2*dual channel DDR3 RAM slot, max up to 16g;
4*DVI display ports, 2*RTL8111E
High performance 4*DVI AMD Motherboard Support WiFi and DC 12V input For Gaming Machine
Feature
Onboard AMD Trinity APU A6-4455M Duo Core 2.1GHz
2*DIMM DDR3 slot, max up to 16G
Support 4*DVI 1080P
Integrated AMD HD 7000G graghic cards
2*RTL8111E nics
Support WiFi/MSATA/8*USB/2*COM/4*SATA
Specificaton
| CPU | Onboard AMD Trinity APU A6-4455M dual core 2.1GHz |
| Chipset | AMD ® A75 high speed chipset |
| Memory | 2*Dual channel SO DDRIII,support 1333/1066/800,max 16GB |
| Display | AMD ® Radeon HD 7000 |
| | 4*DVI,1*VGA |
| Expansion slot | 1* PCI-E 16x |
| | 1* MSATA,support SSD\WIFI |
| | 1* Mini-PCIE,support WIFI/3G |
| Audio | Onboard Realtek ALC662 6 High fidelity audio channel controller,support MIC,Line-out |
| Storage | 4* SATAII,300MB/s |
| LAN | 2* RTL8111E,support WOL |
| Rear I /O | 1* 12V DC_JACK |
| | 4* DVI |
| | 2* RJ-45 |
| | 4* USB 2.0 |
| | 1* Audio header |
| Built-in I/O | 1* JVGA1(2*5pin) |
| | 1* Mini-PCIE,3G/WIFI |
| | 1* MSATA,SSD,WIFI |
| | 1* SIM |
| | 1* GPIO(support 4*GPIO) |
| | 4* USB 2.0 |
| | 2* USB 3.0 |
| | 2* PWROUT |
| | 1* AUDIO 2*5pin |
| | 6* RS232,COM2 support 485/422 |
| | COM2,COM3_6,9PIN |
| | 1* LPT 2*13pin |
| | 1* PS/2 1*6Pin |
| | 1* TX-RXCOM RS422,485 |
| | 1* CPUFAN 1* SYSFAN |
| | 1* ATX_12V |
| | 1* FP1 |
| BIOS | AMI 32MB Flash ROM |
| Watchdog Timer | Support hardware reset functions (level 256, 0 ~ 255 seconds) |
| Power supply | DC_12V |
| Working Temperature | -10 ° C~60 ° C |
| Working Humidity | 0-95%(relative humidity,no condensation) |
| Size | 170mm x 170mm |
