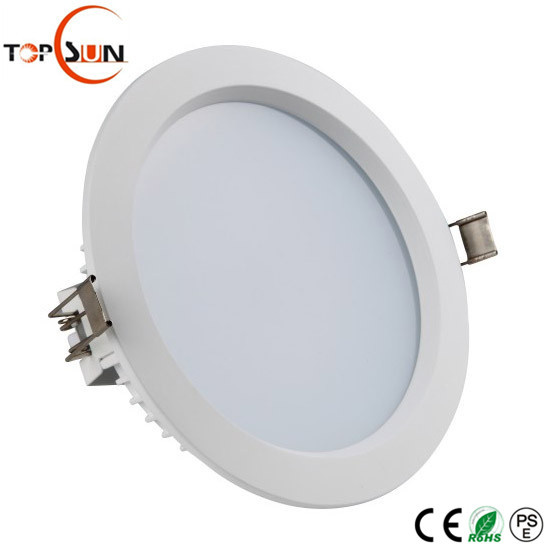

4 Inch 10W Round LED Ceiling Light/Recessed Ceiling Light LED

Product Specifications

Prod Model:	TPG-D401-W10S2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	10W
Input Voltage:	AC100-240V
Pf:	>0.9
Cut Hole:	120mm
Bean Angle:	120 Degree
Warranty:	3 Years
Produce Place:	Shenzhen China
Dimension:	Dia140*H80mm
Colour:	3000k, 4000k, 6000k
Wattage:	6W, 10W, 12W, 15W, 18W, 20W, 25W, 30W, 35W
Light Source:	LED
Application:	Indoor Commercial LED Lighting
Material:	Aluminum
Installation:	Recessed
Lamp Installation:	Recessed
Source Number:	Samsung SMD5630/Epistar 2835 SMD
Certification:	CE and RoHS

Product Description

4 inch 10W Round LED Ceiling Light/Recessed Ceiling Light LED


Topsun is a professional manufacturer of LED Downlights,there are 10 series LED Downlights for optional with different size,CE RoHS PSE Approval.3 Years Warranty.
Welcome to send an inquiry to negotiate more details,thank you!

TOPSUN specification for recessed led retrofit light


Description	Dimension				Power
LED Downlight	D01 Series --- 3'' 4'' 5'' 6'' 8'' Aluminum Shell SMD LED Downlight, D02 Series --- 3'' 4'' 5'' 6'' 8'' Plastic shell SMD LED Downlight, D03 Series --- 4'' 5'' 8'' 12'' Round ultra-thin SMD LED Downlight. D04 Series --- 6'' 8'' 12'' Square shape ultra-thin SMD LED Downlight. D05 Series --- 2.5'' 3'' 3.5'' 4'' 5'' 6'' 8'' Round ultra-thin SMD LED Downlight. D06 Series --- 2.5'' 3'' 4'' Aluminum Shell COB LED Downlight.				5W ~ 35W
Voltage	AC85-265V 50/60Hz ;
Led type	SMD5630, SMD2835
Led chip	Samsung LED, Epistar LED;
Color temp	2800-3500k(WW); 4000-4500k(NW); 5500-6500k(CW);
Shell color	White
Efficiency	≥90%,Color lndex:80, PF:>0.92,Class C for Harmonic Current   Emition;
Lifetime	50.000hours;
Lumin Drop	1,000HRS UNDER 2%,10,000HRS UNDER 10%, 40,000HRS UNDER 30%,While Average Using under,12 hours per day;
Certificate	CE, LVD, EMC, ROHS,PSE


Applications of retrofit led downlight kit
Mainly applicable to living rooms, dining rooms, bedrooms, cabinet,shopping mall, hotels, office,kitchen,supermarkets,exhibition hall.

Features of  TPG-D01 led downlight retrofit
1.Die-casting aluminum white shell
2.PC cover,transmittance>90%
3.White Reflector
4.High lumen Samsung 5630 SMD LED/Epistar 2835 SMD LED
5. CRI: >80Ra,PF>0.9
6.Isolated driver
7. 3 years warranty
8. CE ROHS,PSE certificated
D01 Series --- retrofit led recessed light

Model NO.	Series	LED	Dimension	Cutout Size	Watt
TPG-D301	3inch	Samsung LED  SMD5630   Epistar 2835 SMD LED	D125mm*H60mm	φ90mm	6W
TPG-D401	4inch		D140mm*H80mm	φ120mm	10W
TPG-D501	5inch		D180mm*H80mm	φ150mm	12W/15W
TPG-D601	6inch		D190mm*H80mm	φ170mm	15W/18W/20W
TPG-D801	8inch		D230mm*H88mm	φ200mm	24W/25W/28W/30W/35W

D02 Series --- recessed led retrofit light

Model NO.	Series	LED	Dimension	Cutout Size	Watt
TPG-D302	3inch	Samsung LED  SMD5630   Epistar 2835 SMD LED	D125mm*H77mm	φ90mm	5W
TPG-D402	4inch		D140mm*H93mm	φ120mm	8W
TPG-D502	5inch		D180mm*H95mm	φ150mm	10W/12W
TPG-D602	6inch		D190mm*H95mm	φ170mm	15W/18W
TPG-D802	8inch		D230mm*H100mm	φ200mm	15W/20W

D04 Series --- Ultra Slim Square led down light

Model NO.	LED	Dimension	Cutout Size	Watt
TPG-D604	Samsung LED  SMD5630   Epistar 5730 SMD LED	D200mm*D200mm*H18mm	φ180mm*180mm	15W
TPG-D804		D240mm*D240mm*H18mm	φ220mm*220mm	15W/18W
TPG-D1204		D300mm*D300mm*H18mm	φ275mm*275mm	20W

TOPSUN Quality Control :

1. 100% testing before aging .

2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.

3. 100% testing by safe tester (with 3700V high voltage) before packing.

4. Except normal CE, RoHS, PSE certificates for the finished products, we can provide IES files.


 For more details,please feel free to contact me or send an inquiry directly,will try my best to reply you in time.Thank you!
