Product Specifications
| Prod Model: |
LXH-D-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test: |
Flying Probe and Test Frame |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Lxh |
Product Description
Details:

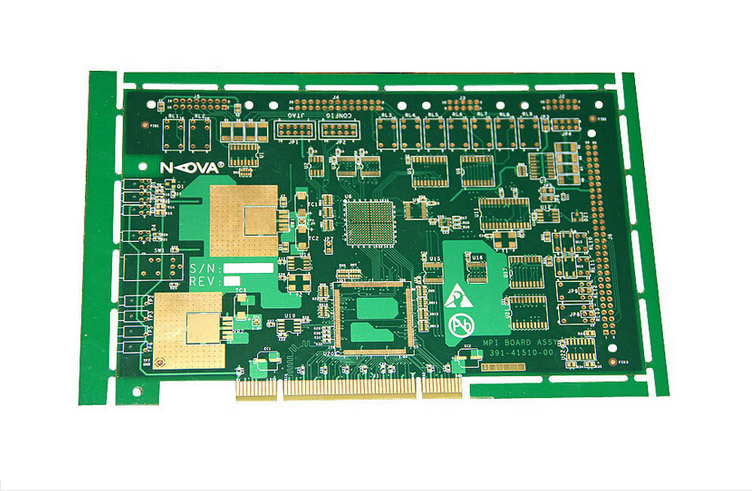

Layer:4-layer
Finished Board thickness:1.6MM
Board material:FR-4
Brand:KB
Tg aility:140
finished Copper thickness:2 oz
Surface treatment: enig with gold finger
solder mask Colour:Green
Min hole size:0.2mm
Company Advangates:
Our company product focus on quick turn around PCB ,small and medium volume PCB,1- 30 layer board including High density interconnection board ,High frequency , High TG, impedance control,thick copper. Aluminum substrate, flexible board and rigid-flexible board .
And we are able to manufacturing double-sided sample board within one day,4 layer and 6 layer sample board within 2 days.
| Layer | Type | Delivery time |
| 2 layer | Sample board | 1day |
| 4 layer | Sample board | 2days |
| 6 layer | Sample board | 2days |
Technical Capability:| Max layers | 30 layers |
| Max panel size | 600*650mm |
| Board thickness | Core thickness:0.15-3.20mm,finished board thickness:0.30-6.00mm |
| Min spacing | 0.10mm/4mil |
| Min line width | 0.10mm/4mil |
| Min hole | 0.15mm/6mil |
| Surface treatment | HAL-lead free,ENIG,OSP,Electrolytic Gold(120 U''),immersion tin,immersion silver,Gold-finger(120 U'' gold thickness) |
| Minimum pad | 0.35mm/18mil |
| Minimum solder mask bridge | 3mil(0.076mm) |
| Aspect ratio | 10:1 |
| Outline tolerance | +/-4mil(+/-0.1mm) |
| Hole Wall Copper Thickness | 0.025mm/1mil |
| Warpage | <=1.5% |
| Aperture tolerance | ±0.05mm/2mil |
| Thermal Shock | 288ºC,10S,Three times |

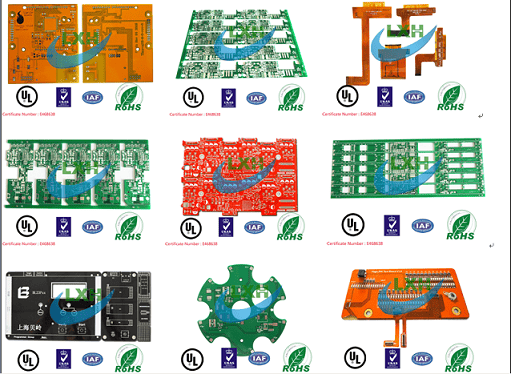

LXH product show:
Shenzhen Lianxinghua Electronics Co. Ltd (abbr: LXH)Founded in 2005 at Rich industrial park, Zhenmei Villiage, Guangming new District, Shenzhen, Guangdong Province, specialized in producing quick turn around prototype PCB, medium and small volume PCB, can provide with 1-30 layer PCB including High density interconnection board, High frequency, High TG, Thick copper. Aluminum substrate, flexible board and rigid-flexible board. LXH owns 400 employees and 8000 Square meters producing area. The monthly capacity is 10000 square meters. Monthly output PCB types are more than Thousand.
Products are widely used in high-tech fields such as computer, communication, Home appliances, Photoelectric, Positioning system, Medical equipment, audio video equipments, Instrument, automobile, industrial control and so on. In the face of the fierce market competition, LXH continue to introduce talents, strengthen staff training and the enterprise management, Pass the certification of UL and the quality system of ISO9001. Since company establishment, LXH abide by the business philosophy of"people-oriented, Quality first, the user is supreme, Innovation and hard working ", Throughout 10 years of continuous development, LXH enjoy good reputation with high quality, on-time delivery, fast feedback and earn many high quality customers around the world.
