Product Specifications
| Prod Model: |
BOXIN-0407HDI-RBM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

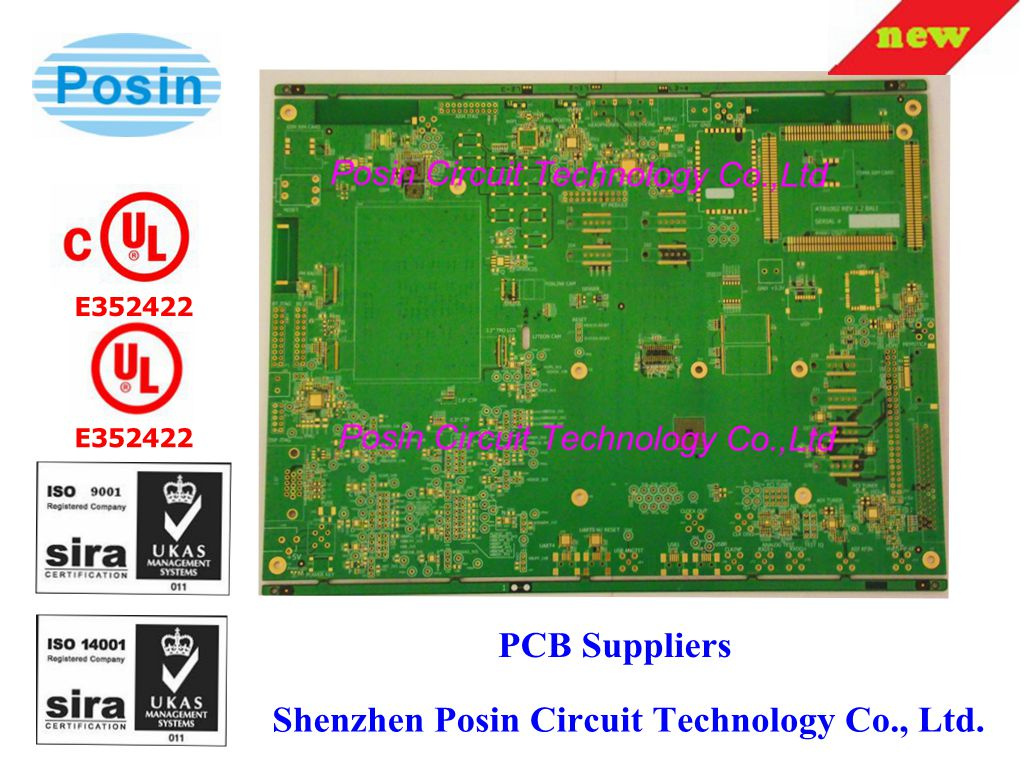

P/N: BOXIN-0407HDI-RBM
Layer: 4L
Material: FR4 1.6mm
Finshed copper: 1oz
Surface finish: Immersion Silver
Soldermask color: Green
Silkscreen color: White
MIn hole size: 0.2mm
Line Width/Space: 0.13mm/0.1mm
Addtion Info:
MOQ: 1PCS
Packing: Vacuum Packing
Standard: IPC 2
Origin: Made in China
HS code: 85340090
Production Capacity: 10000spm/month
If you are interested in our products, please contact me freely for more details~
Below is our Company production capability for your referrence:
1. Layer: 1~26 layers (regid PCB, flexible PCB, regid-flex PCB )
2. Board thickness: 0.20mm-5.00mm
3. Min line width/space of outer layer: 0.0762mm
4. Min line width/space of inner layer: 0.0762mm
5. Max size: 1100mm*599mm
6. Min hole dia.: 0.2mm (normal), 0.10mm(laser drilling)
7. Max copper thickness: 6 oz
8. Base Materials: ( Normal/High TG) FR-4, CEM-3, PTFE Aluminum Base, Rogers, Polyimide, BT Resin, PET, PI etc.
9. Surface finishing: HASL, HASL Lead Free, Golden finger, Immersion Gold, Immersion Silver, Immersion Tin, OSP/Entek
10. Solder mask color: Green, Blue, Red, Black, Yellow, White
11. Legend color: White, Yellow, Black, Blue, Red
12. Profiling: CNC, Routing, Punching, Beveling, V-cut, V-score, Counter sink.
13. Certificate: UL, ISO9001, ISO14001, SGS, RoHS, QS9000.
Welcome your inquiry~~
Merry Best regards
Posin Electronics Limited
Mobile: 86 13423808577
Shenzhen Posin Circuit Technology Co., Ltd. was established in April, 2008, After
years'efforts, the company has expanded rapidly and keptIntroducing
new production equipments. We have also trained a professional team
and perfected the quality management system ranging. the
manufacture ability of our company is expanded rapidly. The annual
output of double-sided and multi-layer PCB exceeds 100, 000
square meters.
