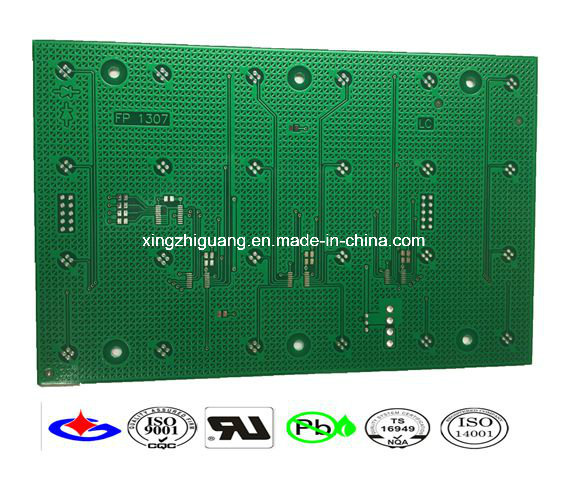

4 Layer Tg170 Fr4 Printed Circuit Board for Laptops
Product Specifications
| Prod Model: |
xzg121501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tg Value: |
Tg170 |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Surface Finishing: |
Lead Free Hal |
| Soldermask: |
Green |
| Silkscreen: |
White |
| Min Line W/S: |
0.3/0.4mm |
| Min Hole Size: |
0.4mm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Application: |
Laptops |
| Brand: |
Xzg |
Product Description
![]()
Specification:| Layer | 4 |
| Material | FR4-TG170 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Soldermask | Green |
| Silkscreen | White |
| Surface Finishing | ENIG |
| Min Hole Size | 0.4mm |
Why US:
- UL (E246887), ISO9001, TS16949, ISO 14001 certified.
- Turnover USD 50-100 million per year
- 25,000 sqm area,1100 staff
- Mass Production from single to 20 layers
- Special Material: ROGERS, Arlon, Taconic.etc.
- Client: SAMSUNG, Skyworth, Malata, Midea.etc.
![]()
Certificates(UL:E246887, TS16949, ISO14001, ISO9001):
![]()
Factory Tour:
![]()
![]()
Clients and Suppliers:
![]()
FAQ:Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.
Q2:What kind of PCB file you need before productionA:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file. Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q5: How to find you?A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.
Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.
Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc
Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
