Product Specifications
Prod Model: |
CO-911-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
140mm;30mm;90 Mm |
Type: |
Anti-Theft Alarm |
Working Mode: |
Passive |
Certification: |
CE |
Application: |
Indoor |
Transmission Mode: |
Cable |
Signal Transmission: |
N.O. / N.C. / 12V |
Sensor Type: |
External |
Working Principle: |
Scm |
Alarm Volume (',within 1m): |
0db |
Receive Frequency: |
315 /433 / 868 MHz |
Usage: |
Work with Alarm Panel |
Product Description

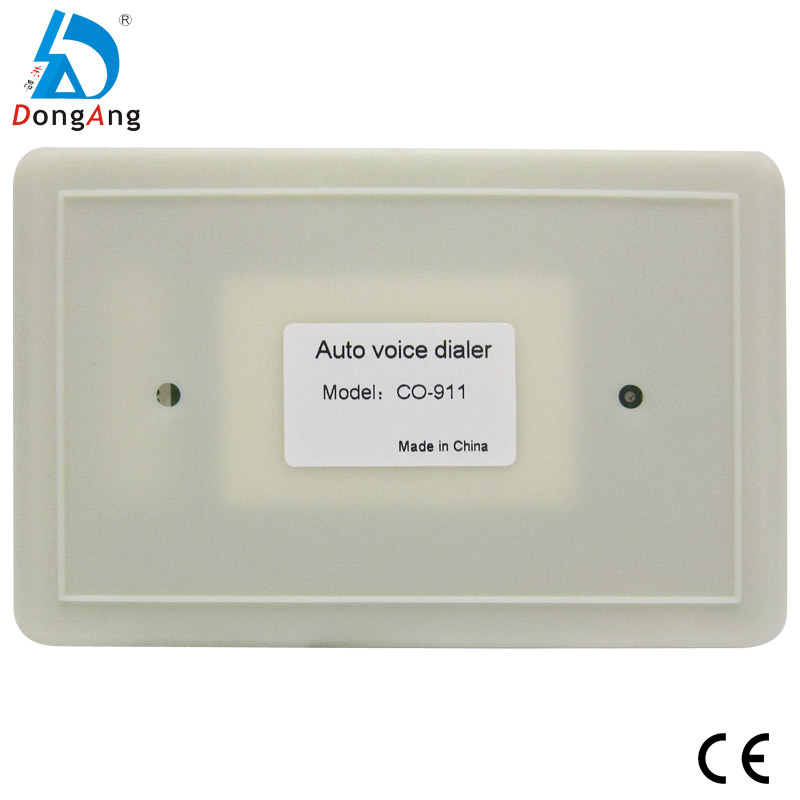

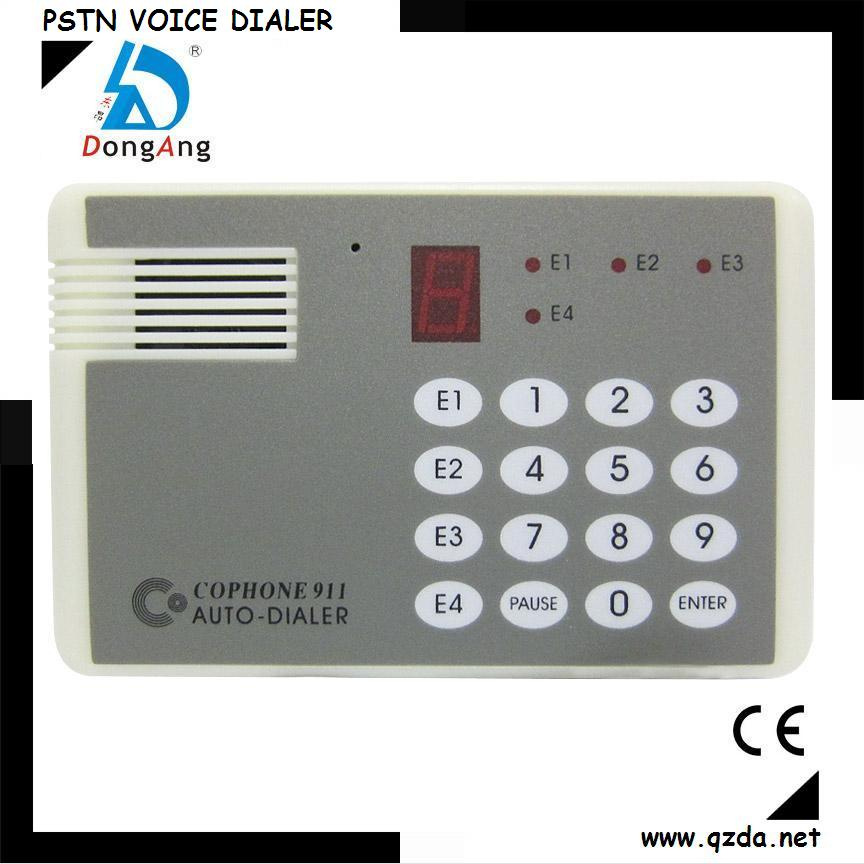

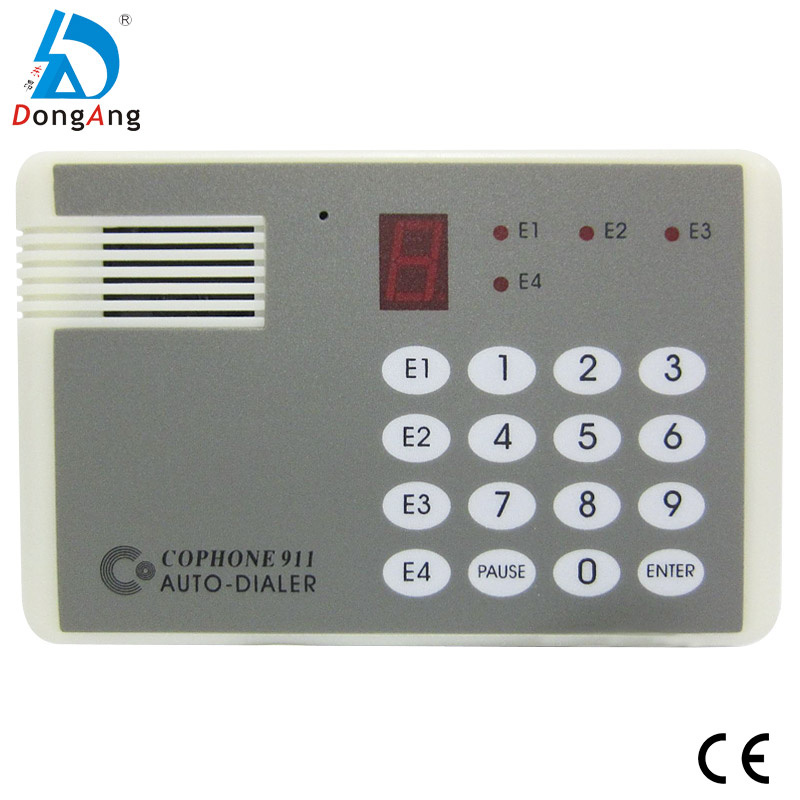

4 Numbers PSTN Alarm Voice Auto Dialer (CO-911-4)1. Use wired telephone line communication, voice alarm, voice message can be updated;
2. Dial 4 telephone/mobile phone numbers circularly, 16 digits maximum for each number;
3. Optional repeated dialing times after triggered;
4.10s or 20s voice message to inform user alarm information;
5. N. O, N. C, 12V DC or 24V power optional trigger means;
6. Easy programming, parameter saved after power off;
7. Could be used with any alarm reporting system.
Working voltage | DC12V or 24V optional |
Static current | <50mA |
Working current | 150mA |
Voice message | 10/20s |
Alarm receiving numbers | 4 numbers |
Trigger means | N.O/N.C/DC12V |
Alarm output means | Voice alarm |
GSM band | GSM 850/900/1800/1900Mhz |
Transmitting power | 2W:GSM850/900Mhz,1W:GSM1800/1900Mhz |
Gross weight | 0.3kg |
Measurement(L×W×H) | 140×30×90 mm |
Fujian Quanzhou Dong Ang Electronics Co., Ltd. is a manufacturer specializing in burglar alarm system and ancillary products for import alarm systems, which is a medium-size high-tech enterprise integrated research and development team, design team, production team, and sales department.
We own a great high-tech team which including capable managers and leading-edge technical staffs and researchers. With more than 20 professional engineers and technician' S common effort, our new products always occupied good market and gained good reputation. We all are trained to trace the strict quality control system, take "begin with customer' S demand, success in their satisfaction" belief as our aim, and we always adhere to "survive as sound quality, develop with good integrity" principle. With all staffs' Common effort and engineers' Braveness to pursue innovation, and strong exploration desire, we developed LAN/GPRS communication modules, GSM/CDMA communication modules, various voice auto dialers, GSM/PSTN dual-network alarm systems, telephone network alarm systems, and alarm center monitoring station, as well as multi-function alarm products to meet market demand.
We dedicated to provide users with advanced technology and the best after-sales service, as well as perfect sales systems, to get progress with customers every day.
