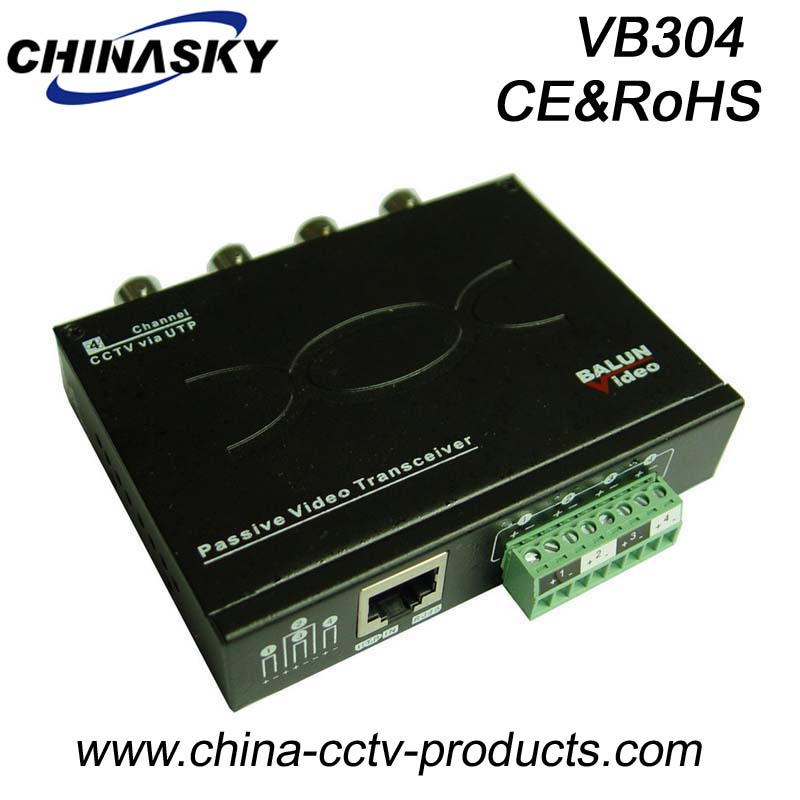

4 Port CCTV UTP Balun Video for Security Camera (VB304)
Description:
The video balun VB304 is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP, are easy to install and cost effective, and do not require power. Working with 8-core CAT-5 can transport 4 channel video signals.
Its crosstalk and noise immunity ensure quality video signals.
Features:
4 Full-motion CCTV video at distances up to 330m when used with any passive transceiver
5 Up to 1500m with any active UTP video receiver
6 Outstanding interference rejection, transient protection
7 High quality image
8 It can work as video transmitter or video receiver
9 Compact size and easy installation
10 With 4ch pigtail BNC male connector
11 Steel case and spray painting
12 Connectors: Terminal block, RJ45, BNC male connector
Technical specifications:
| 4 Port CCTV Video Receiver for Security Camera (VB304) |
| Video Format | NTSC, PAL, and SECAM |
| Frequency Response | DC to 5MHz |
| Attenuation | 0.5dB typ |
| CMRR | 60 dB |
| Impedance | Coax, Male BNC | 75 ohms |
| RJ45/Terminal Block | 100 ohms |
| Working environment | Working Temperature | -10ºC to +50ºC |
| Storage Temperature | -30ºC to +70ºC |
| Humidity | 0 to 95% |
| Wire Type | UTP5 |
| Connector | Male BNC, RJ45 and Terminal Block |
| Power | No power required |
| Case | Steel case, spray painting |
| Dimension | 130mm*63mm*23mm |
| Weight | 266g/pc |
Connection method:
Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure),connect the clamped modular plugs to the RJ45 sockets,connect the coax to the connection terminal.
Application:
CCTV Accessories, cctv system, cctv Security, cctv coaxial cable installation, CCTV surveillance accessories, cctv coaxial cable
