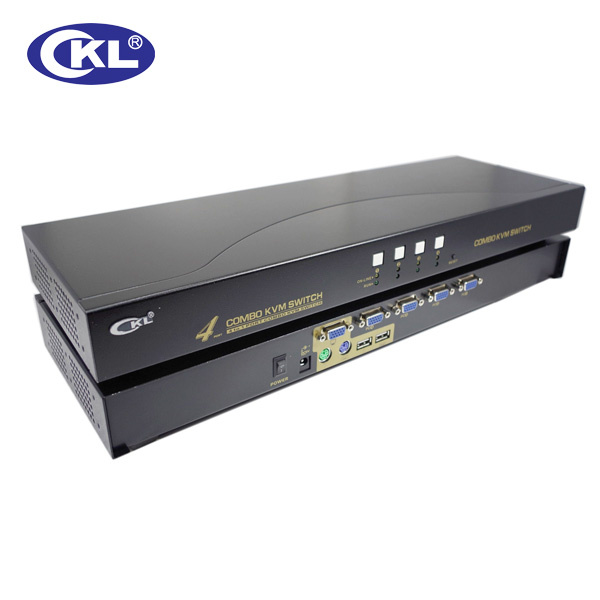

Product Specifications
| Prod Model: |
CKL-9134UP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Warrnaty: |
12 Months |
| Housing: |
Metal Case |
| Input: |
4 Port |
| Interface1: |
USB |
| Interface2: |
PS/2 |
| Interface3: |
VGA |
| Function: |
on-Screen-Display(OSD) & Cascade Chain |
| Resolution: |
2048 X 1536 |
| Output: |
1 Port |
| Usage: |
Video |
| Package: |
Color Box |
Product Description
Specifications
Hardware Push Button, Hot-Keys on PS/2 and/or USB of keyboard.
Menu driven OSD (On Screen Display). Features
1. Console your Keyboard/Mouse via either way of PS/2 and/or USBarbitrarily.
2. Complex connections with PCs via either way of PS/2 and/or USBarbitrarily.
3. Controls 8/16 computers from a single console (Keyboard/Mouse) over PS/2and/or USB connections.
4. Supports Windows, Linux, Mac OS9/OSX, Sun Micrsystems.
5. On-Screen-Display(OSD) & Cascade Chain functions.
-OSD is intuitive menus driven for quick and efficient navigation.
-3level cascades: Up to 3 levels; Control up to 64/256/4096PCs, from a singleconsole; Cascaded units don't need special configuration.
6. Emulatesa PS/2 or USB keyboard on each PC to allow your computers to boot normally withouta keyboard error.
7. Supports hot-swap. All devices connected to the KVM can be added orremoved at any tine, without shuttingthe unit down.
8. Supports 3 types of switching:
(1) Hardware Push Button, (2) Hot-Keys on PS/2 and/or USB of keyboard.
(3) Menu driven OSD (On Screen Display).
9. Supports Auto-Scan function to switch video automatically amongcomputers in preset intervals sequentially by OSD menu driven.
10. Supports LED display for PC and/or server status monitoring.
11. SupportsVGA resolutions up to 2048× 1536 @ 85Hz.
12. Supports Beeper during switching enabled.
13. Poweredwith external power adaptor connection.
14. Fully compliant with the USB 1.1/2.0 specification.
15. Rack Mountable in 19-inch(1U).
