Product Specifications
| Prod Model: |
GYM9720 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
Product Description

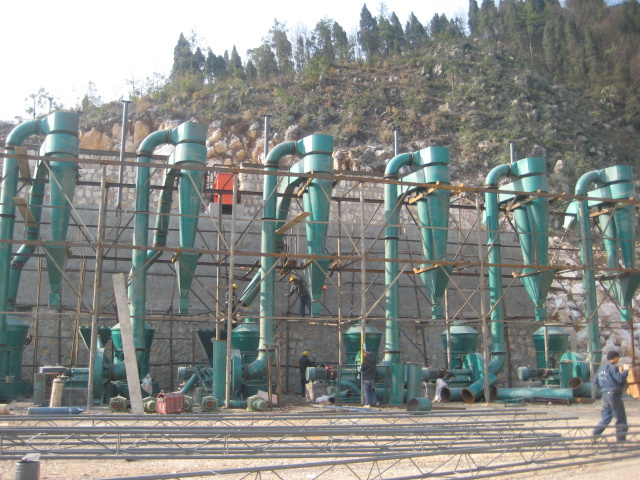

Raymond Mill, Raymond Grinder, Raymond Grinding Mill, Raymond Roller Mill: Pulverizer
Raymond Mill is suitable for chemical industry like rubber, pesticides, enamel, paint, phosphate fertilizer, paper. Hardness in the Mohs seven following humidity below 6% non-flammable and explosive materials. Such as: Talc, barite, calcite, limestone, manganese ore, iron ore soil, chrome ore, quartz, gypsum, bentonite, etcceramics, etc. With qualified products and good service, Hengda supplies series Raymond roller mill (Raymond mill)
Working Principle of Raymond Mill:
First material should be crushed into the desired size by Jaw Crusher, and delivered to the Silo by Bucket Elevator. Our Designed Vibrating Feeder will feed the material into the grinding room. With the air current from the Air Blower, those powder conforms to the fineness degree will be blew into the cyclone collector and those powder that is not consistent with the desired size will return to the grinding room to be re-ground. The whole system is airtight circulation, and the circulatory flow under the negative pressure.
Raymond Mill features:
1. Three-dimensional structure
2. Land-saving
3. The screen-passing rate can reach to 99%
4. The transmission is steady and reliable;
5. The transmission device of mainframe adopts airtight gear case and zonal wheel.
6. Centralized control for the electric system, convenient to operate
|
Model NO.: |
GYM9720 |
|
|
|
Certification: |
ISO9001 |
|
|
|
Supporting Facilities: |
Design Whole Production Line |
|
|
|
Color: |
Any Color Is Available |
|
|
|
Application: |
Construction, Mining, Chemical |
|
|
|
Spare Parts: |
Provide |
|
|
|
Capacity/Set: |
1.5-7.5 Tons/Hour |
|
|
|
Input Size: |
< 30mm |
|
|
|
Output Size: |
Adjustable |
|
|
|
Export Markets: |
Global |
|
|
|
Maximum feeding size |
Finished granularity |
output
(According to different materials fineness) |
Center shaft speed |
Grinding ring inside diameter |
Roll grinding size
(diameterXheight) |
Total weight |
Total power |
|
|
20 mm |
80~600 mesh |
1000~6000 kg/h |
145 r/min |
φ 970 mm |
φ 320X200mm |
14.5 t |
97.5KW |
|
|
|
|
|
|
|
|
|
|
|
|
|
Type |
Particle size of feed (mm) |
Particle of finished product(mm) |
shift output at different material fine degree |
Rotate speed if central shaft (r/min) |
Inner diameter of pulverizing ring (mm) |
Diameter of pulverizing roller(mm) |
Height of pulverizing ring(mm) |
Electrical machine Power of main frame(kw) |
Electrical machine Power of analyzer
(kw) |
|
4R3216B |
≤ 20 |
0.15— 0.043 |
1-3 t/h |
150 |
φ 970 |
φ 320 |
160 |
37 |
37 |
|
4R3216 |
≤ 20 |
0.15— 0.043 |
1-3 t/h |
145 |
φ 970 |
φ 320 |
160 |
37 |
37 |
|
4R3220 |
≤ 20 |
0.15— 0.035 |
1-7 t/h |
155 |
φ 970 |
φ 320 |
200 |
45 |
37 |
|
4.5R3220 |
≤ 20 |
0.02— 0.043 |
3-10 t/h |
155 |
φ 970 |
φ 320 |
200 |
55 |
45 |
GYM9720
(4R) |
≤ 20 |
0.15— 0.023 |
1-6 t/h |
145 |
φ 970 |
φ 320 |
200 |
45 |
37 |
LBM9820
(4R) |
≤ 20 |
0.173— 0.035 |
3-7.5 t/h |
140 |
φ 980 |
φ 320 |
200 |
45 |
37 |
LG9920
|
≤ 10 |
0.023— 0.0065 |
1.5-2.5 t/h |
115 |
φ 1250 |
φ 365 |
200 |
55 |
55 |
LG990
|
≤ 10 |
0.023— 0.0065 |
1-2.5 t/h |
120 |
φ 960 |
φ 320 |
160 |
37 |
37 |
|
5R4121 |
≤ 20 |
0.15— 0.043 |
2-8t/h |
110 |
φ 1270 |
φ 410 |
210 |
75 |
55 |
|
5R4119 |
≤ 30 |
0.15— 0.043 |
2-6.5 t/h |
110 |
φ 1270 |
φ 410 |
190 |
75 |
55 |
|
5R4124 |
≤ 30 |
0.15— 0.043 |
2-15 t/h |
112 |
φ 1270 |
φ 410 |
240 |
90 |
90 |
|
5R4128 |
≤ 30 |
0.15— 0.043 |
2-20 t/h |
112 |
φ 1270 |
φ 410 |
280 |
90 |
90 |
HD1720
(6R) |
≤ 30 |
0.173— 0.043 |
5-25 t/h |
88 |
φ 1720 |
φ 510 |
300 |
180 |
132 |
