Product Specifications
| Prod Model: |
HD-F5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
HDF5 Outboard Motor Engine |
| Shaft: |
Long Shaft/ Short Shaft |
| Gear Shift Position: |
Forward-Neutral-Reverse |
| Starting System: |
Manual |
| Control System: |
Tiller/ Back/ Hand Control |
| Ignition System: |
TCI |
| Cooling System: |
Water Cooling |
| Displacement: |
112cm3 |
| Weight: |
S: 22kgs, L: 24kgs |
| Type: |
Inland and Coastal Boats |
Product Description

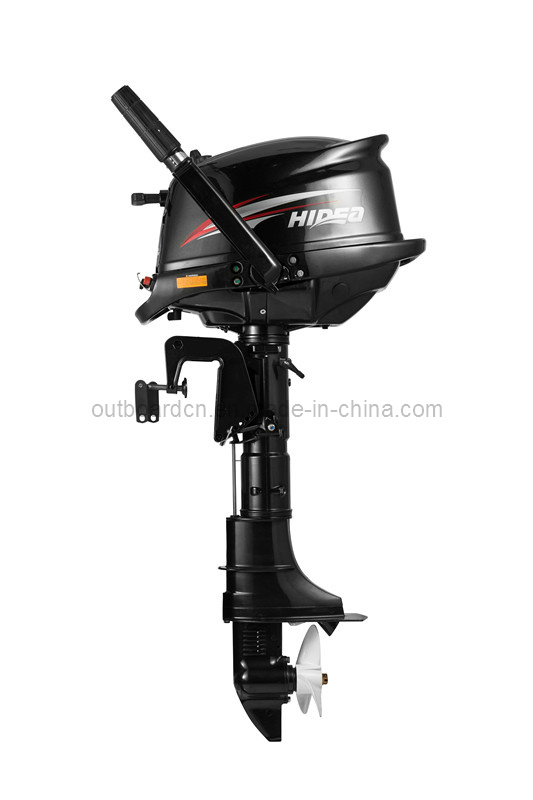

4-Stroke 5hp Outboard Motor Engine (HDF5):
Product Description:
1. Strong Anti-corrosion: Hard anodic oxidation treatment of the aluminum alloy surface forms a 50-80um protector, which protects the aluminum alloy surface from seawater corrosion very well,
2. Much safer: Leakage disposal lowers the leaking phenomenal in a large extent, and normally controls it within 2‰ ,
3. More cost-efficient: Energy saving, low fuel consumption and long service life,
4. More convenient: Light weight, quick to start and good acceleration,
5. Eco-friendly: Low fuel consumption, low noise and CE approved,
6. More reliable: Long term warranty period and professional after-sale service,
7. Full series from 2.5hp to 60hp to choose.
Company Information:
Hidea Power Machinery Co. Ltd. Is located in Hangzhou, China. It is one of the most professional manufacturers of outboard motors in China. Its annual production capacity reaches 100, 000 units.
Hidea has its own professional R&D center, advanced production line, strict testing system and high-efficiency after-sales service system. It cooperates with the Chinese First Auto Works Corp. (FAW), who provides capital and technological supports. Hidea was approved by ISO9001 international quality system, and won many honors by its excellent performance and steady quality, such as CE, EPA and VCA certificates. Hidea is an export-oriented enterprise. Its products spread to North America, Europe, Australia, South America, Asia Pacific countries and Africa.
Our Service:
Warranty Term:
2.5 years for leisure use, and 1 year for commercial use.
Certificate:
CE, ISO9001, SGS
Product Line:
2-Stroke: 2.5hp, 3.5hp, 4hp, 5hp, 6hp, 8hp, 9.8hp, 9.9hp, 15hp, 25hp, 30hp, 40hp, 60hp
4-Stroke: 2.5hp, 4hp, 5hp, 8hp, 9.9hp, 15hp, 20hp, 25hp
Packaging & Shipping
Packing: Standard Export Cartons with Strong Foam Inside
Shipping: Normally FOB Ningbo/ Shanghai
|
Model |
HDF5 |
|
Max. Output (Kw) |
3.6 |
|
Full Throttle Operating Range (rpm) |
4500-5500 |
|
Stroke |
4 |
|
Cylinders |
1 |
|
Displacement (cm3) |
112 |
|
Gear Ratio |
27:13 (2.08) |
|
Length x Width x Height (mm) |
S: 717*361*1029, L: 717*361*1156 |
|
Weight(kg) |
S: 22, L: 24 |
|
Gear Shift Position |
F-N-R |
|
Ignition System |
TCI |
|
Cooling System |
Water Cooling |
|
Starting System |
Manual |
|
Control System |
Tiller Control |
|
Lubrication System |
Gasoline & Machine Oil |
|
Regular Gasoline |
50:1 |
|
Capacity of Fuel Tank(L) |
12/24 |
