Product Specifications
| Prod Model: |
SPT-QSFP+AOC50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Qsfp+ Optical Cable |
| Data Transfer Rate: |
40gbps |
| Device Type: |
Active |
| Connectors: |
Qsfp+ to Qsfp+ |
| Length: |
Customered Length |
| Interface (Bus) Type: |
Hot-Pluggable Module |
| Warranty: |
1~3years |
| Application: |
Local Communication Cable |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Conductor Material: |
Optical Fiber |
Product Description

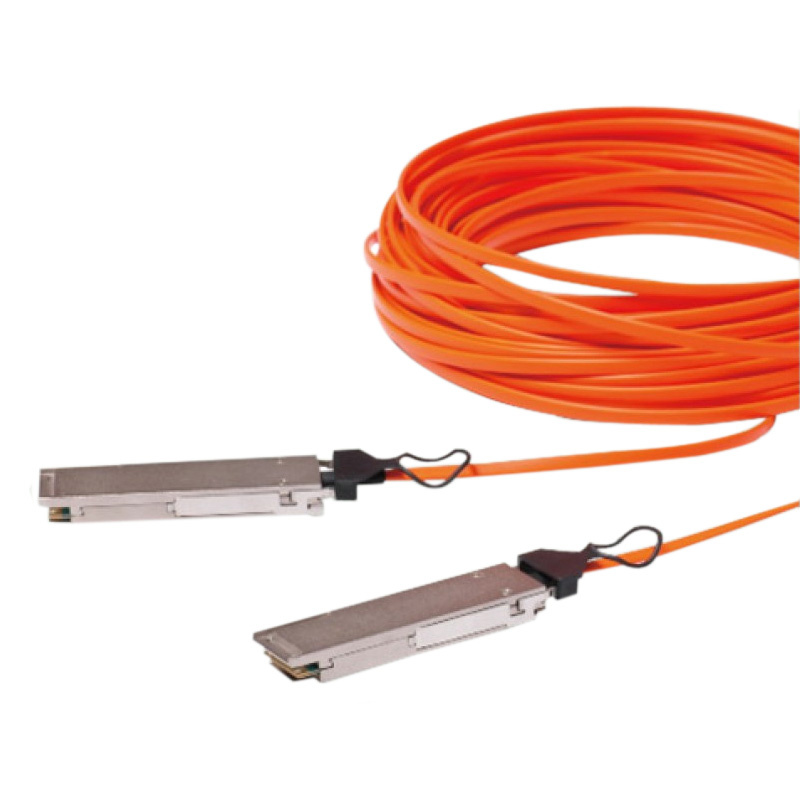

40GB QSFP+ to QSFP+ cable assemblies Active Optical Cable (SPT-QSFP+AOC50)
The QSFP+ cable assemblies are high performance, cost effective I/O solution
QSFP+ AOC fiber optic Cable Active Optical Cable
High Quality with CE, FCC, and RoHS certificates
Condition: Brand New
Manufacturer: SOPTO
Compatibility
The SPT-QSFP+AOC50 (QSFP+ to QSFP+ 40GB AOC fiber optic Cable Active Optical Cable) is compatible with all brands including Cisco, Juniper, HP, Extreme, Enterasys, brocade-foundry, H3C, Alcatel-lucent etc.
Applications:
1-8G Fiber Channel (1X, 2X, 4X and 8X) and multi-gigabit data rates up to 10.5Gbps (1-10G) Gigabit Ethernet
Networking, Storage, Telecommunications
Hub, Switches, Routers, Servers, Network Interface Card (NICs)
OEM and ODM
OEM and ODM order is optional.
We provide SPT-QSFP+AOC50 according to your requirements, and customize packaging with QSFP+ to QSFP+ 40GB AOC fiber optic Cable Active Optical Cable label and your logo.
Ordering information:
QSFP+ to QSFP+ 40GB AOC fiber optic Cable Active Optical Cable
Shipment
International Express: DHL, FedEx, UPS, TNT and EMS
Shipments are usually delivered in 1-3 working days after received payment and 1-3 days after received the PO for the VIP customers.
Sopto is your reliable supplier of SPT-QSFP+AOC50 (QSFP+ to QSFP+ 40GB AOC fiber optic Cable Active Optical Cable). We test each piece of SPT-QSFP+AOC50 (QSFP+ to QSFP+ 40GB AOC fiber optic Cable Active Optical Cable) before shipment to ensure the SPT-QSFP+AOC50 (QSFP+ to QSFP+ 40GB AOC fiber optic Cable Active Optical Cable) can work in your system without any problems. If you need the datasheets of SPT-QSFP+AOC50 please feel free to contact us.
Features:
Full duplex 4 channel 850nm parallel active optical cable
Transmission data rate up to 10.3Gbit/s per channel
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Differential AC-coupled high speed data interface
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Multi-mode optical fiber cable of up to 100m
Management Interface and digital diagnostic monitoring through I2C
Low power consumption
Housing isolated from connector ground
Operating case temperature 0° C to +70° C
3.3V power supply voltage
RoHS 6 compliant
|
Form Factor |
Device Type |
Connectors |
Connectivity Technology |
|
Optical Cable |
Active |
QSFP+ to QSFP+ |
Wired |
|
AWG |
Data Transfer Rate |
Length |
Interface (Bus) Type |
|
28 |
40Gbps |
Customered length |
Hot-pluggable module |
|
Operating Temperature |
Power Supply |
Low Power Consumption |
Warranty |
|
0~70 °C |
+3.3V |
Max 0.5W |
3 Year |
|
SPT |
|
– X |
– XX |
|
|
1 |
2 |
3 4 |
|
|
NO. |
Item Parameter |
Symbol |
|
1 |
SOPTO |
SPT = SOPTO |
|
2 |
Connector Type |
QSFP+ = QSFP+ to QSFP+ Cable |
|
3 |
Product Type |
AOC = Active Optical Cable |
|
4 |
Connector |
10 = 10M 20=20M 30=30M 100=100M |
