Product Specifications
| Prod Model: |
TAT-DOM-03 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Installation: |
Internal |
| Interface Type: |
IDE |
| Application: |
Server |
| Type: |
Solid State Disk |
| Capacity: |
128MB to 64GB |
Product Description

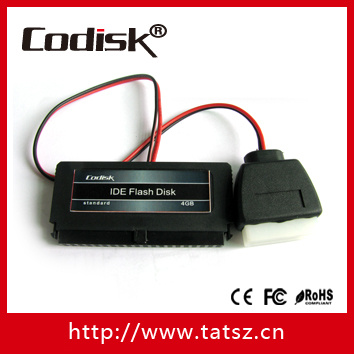

Product DiskOnModule
Model Vertical 40pin
Capacity 128MB~16GB
Power Requirement DC +3.3V ± 5% or DC +5.0V ± 10%
Interface 40 pin IDE (ATA) interface
Transfer Mode PIO Mode: 0~6
MDMA Mode: 0~4
Ultra DMA Mode: 0~4
Dual channel "Read-50MB/sec
Write-20MB/sec"
Single channel "Read-25MB/sec
Write-10MB/sec"
Power Consumption 50mA
Operating Temperature 0C to +70C(Standard)/-40C ~ +85C(Industrial)
Operating Humidity 10% to 95%, (30C Max. Wet Bulb Temp)
MTTF 2, 000, 000 hours
Vibration 15Grms, 10 ~ 2000Hz
Data Retention 10 years without requiring power support
ECC 4 Symbols Correction per 512 bytes, RS-ECC
Wear Leveling Dynamic Wear-Leveling
Safety Certification CE, FCC
HSF Guaranty RoHS, REACH SVHC
Dimension Length 58.6 ± 0.2 mm
Width 27.4 ± 0.2 mm
Thickness 7.4 ± 0.2mm
Shenzhen TAT Electronics Co., Ltd. was established in 1997. As one of the first worldwide factories to manufacture Flash Drives, we engaged in development and production of software protection dongles. copy protection USB flash drives, encryption SSD hard drive, DOM flash disk, aiti-privacy memory cards, software protection dongles,etc.
We have customers in Korea, Germany, the United States, Argentina, Iran and other countries.
Business policy:
Our factory is in compliance with ISO9001.
Our quality control system through hi-tech equipment and standard working procedures ranging from raw material, production, assembly, sales to after-sales service, ensures all products are in compliance with CE, FCC, RoHS as well as customers' requirement/ specifications.
We are capable to develop and manufacture OEM/ODM projects.
For the detail, please consult our Marketing & sales team.
