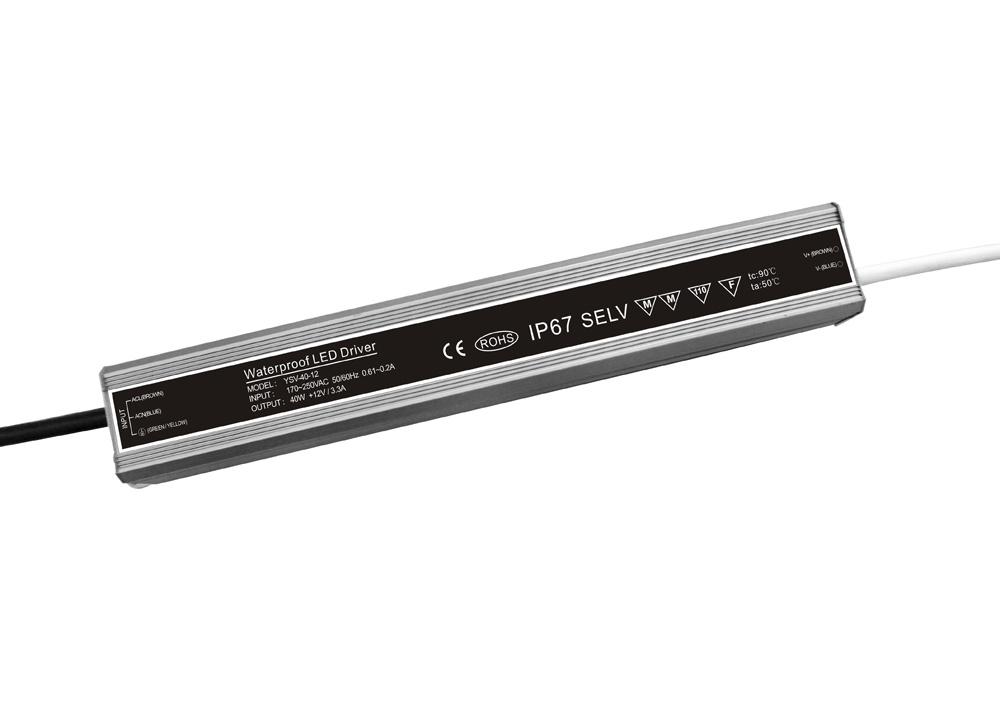

40W 220V 12V Power Transformer With3 Year Warranty
Product Specifications
| Prod Model: |
ysv-40-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
90~130VAC / 170~250VAC |
| Output Volatge: |
12V/24V/36V/48V |
| Efficiency: |
85% |
| Protection: |
SCP/OPP/Ovp/Otp |
| Working Temperature: |
-40°c~70°c |
| Waterproof: |
IP67 |
| Case Material: |
Aluminum |
| Dimensiom: |
248*36*29mm |
| Warranty: |
3 Years |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
Product Description
40W 220v 12v power transformer 3 year warranty
Model: YSV-40-12
DC Voltage: 12V
Rated power: 40W
Efficiency: 86%
Waterproof: IP67
Size: 236*36*28mm
Packing: 0.4kg/pcs
Typical Feature
1.3 years warranty
2. High efficiency 88%
3. EMC standards
4. Input voltage: 90~130v/170~250VAC
5. Protections: SCP, OPP, OVP, OTP, LPD
6 IP67 design for indoor and outdoor application
7 100% burn-in tests
, full-round tests
8. Rated output can be customized
Certificates: CE & ROHS
Application:
Suitable for LED electronic display screen, LED street lights, LED tunnel lights, LED bridge lights, LED panel lights, LED ceiling lights, moving sign application, etc
Working environments:
-Make sure work in proper environments are stated in this Guide.
-Do not overload.
-Avoid free of load while a power supply is powered on, keep proper loading
-Always keep good ventilation
-Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
-Keep away from inflammable or explosive environments.
Workshop: Production line
What else can Yesok bring for you?
1. Professional introduction and analysis about led drivers & led chips
2.3 years warranty price, 5 years warranty design products
3. Rated current & voltage can be customized, like 320mA / 1500mA...32V...
4. Reliable quality as MW...But price cheaper 20%~30%
5. Efficiency high 3%~8% than most suppliers
6. OEM / ODM / Label service / Distributor
7. Unique outter case designs
8. Stock for popular models, like 12v/24v...1500mA/3000mA...
9. Each driver with 2~3 times burn-in tests <+40~+45° C, full load>
10.1~3 days reaction for customer's questions or quality feedback
11. Providing service from inquiry to after-sales (technical supports, market information share, shipment arrangement...)
|
Inrush current (Max.) |
Cold start, 40A/230VAC |
|
Protections |
Over Temperature : +85 °C ±10 °C |
Shut down o/p voltage, re-power on to recover |
|
Over Voltage: 110% ~ 130% |
Shut down o/p voltage, re-power on to recover |
|
Over Load : 130% |
Shut down o/p voltage, re-power on to recover |
|
Short Circuit |
Hiccup mode design, automatically recover after the problem is removed |
|
Withstand Voltage |
I/P-O/P: 3KVAC, I/P-FG:1.5KVAC, OP-FG: 0.5KVAC |
|
Security Standards |
EN-61347-1, EN-61347-2-13, design refer to UL1310 |
|
Working Temperature |
-40 °C ~ +70 °C |
|
Life Time |
+25~+30 °C≥ 50000hrs |
|
Size (L*W*H) |
220*30*20mm |
|
Model |
Output |
Efficiency |
|
Rated Power |
Rated Voltage |
Output Current |
|
YSV-40-12 |
40W |
12VDC |
0~3.33A |
85.0% |
|
YSV-40-15 |
40W |
15VDC |
0~2.67A |
86.0% |
|
YSV-40-24 |
40W |
24VDC |
0~1.67A |
88.0% |
|
YSV-40-32 |
40W |
32VDC |
0~1.25A |
88.0% |
|
YSV-40-36 |
40W |
36VDC |
0~1.11A |
89.0% |
|
YSV-40-48 |
40W |
48VDC |
0~0.83A |
89.0% |
|
YSV-40-** |
Rated voltage like 18V/20V^... can be customized |
Shenzhen yesok electronics power Co., Ltd, locate in Asia's biggest electronics components center-shenzhen, and is a professional supplier of LED drivers with 3 years and 5 years warranty.
Products include constant current & constant voltage type with power range from 10W to 240W. All our drivers have real CE certificates, RoHS testing report, some series are applying for TUV, UL, and all designs are refer to UL8750, UL1310.
Our advantages: high efficiency, rated output can be customized.
Products are widely used for LED strips, LED tubes, LED street lights, LED high bay lights, LED floods lights, LED panel lights, LED down lights^and have been accepted by over 200 customers from about 80 countries.
To ensure our products can really meet market's demands, we are serious for each step like design, cost evaluation, raw materials & components choose, QC, safety standards, standards production line, packing
The components we choose are well-known brands like Rubycon, Nichicon, INFINE, ST, ON, Fairchild, VISHAY, Philips, NEC, SHARP, Toshiba, TDK, YAGEO
The tests cover burn-in tests in QC system, +50 degree at full load with 2-3 times over 14 hours. Other tests like PFC, ripple and noise, protections, efficiency, withstand voltage, leakage tests, waterproof performance tests, Inrush current
Our Philosophy is Intention for good power supply. So, trust your choice, and trust us can be you reliable partner.
