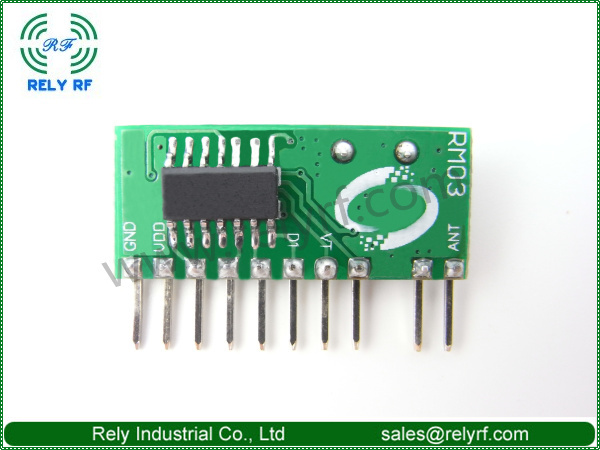

433/315 MHz Learning Receiver Module with Decoder Ry-RM03

Product Specifications

Prod Model:	RY-RM03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Voltage Range:	3.0V-5.5V
Frequency:	315MHz / 433.92MHz
Part Number:	Ry-RM03
Modulation:	Ask
Key Words:	RF Receiver Module
Wireless Receiver Module:	433MHz Receiver Module
315MHz Receiving Module:	Ask Receiver Module
RF Module:	Learning Receiver Module with Decoder
Alarm:	Receiver
Type:	Wireless
Usage:	Window
Certification:	RoHS
Channel:	1CH
Receive Frequency:	315MHz
Transmission Rate:	≤10Kbps

Product Description

433/315 MHz Learning receiver module with decoder RF Receiver Module RY-RM03 type:RF Receiver module keywords: Receiver modules,Learning receiver module with decoder part number: RY-RM03    General Description: RYRM03 is a ISM band high quality wireless data Super-heterodyne receiver module with learning decoder, which is used for remote garage, car block devices and gate doors etc.. Also matching GSM/GPS system; Industry control, communication and security field, this module can apply to the complex environment. Low cost, excellent antistatic protection. Features: Receiver Sensitivity: -110dBm Voltage Range: 3.0-5.5V Low power consumption, 5.0V/[email protected], 5.0V/5.5mA@315MHZ; Continuous data rate can be 2.4Kbps (Manchester encoding) 4 channels Latch/Temporary can be set by yourself Frequency: 315M or 433.9 MHz (other available) Decoder can support maximum 7 encoders, when encoder is more than 7, decoder will start to cover the earliest encoders. EV1527 Learning receiver module with encoder APPLICATION: Remote Control System Garage door controller Industrial Automation system Remote keyless entry, Car security system Alarm system, Remote controlling for home appliances. Parameter Sym Condition Value Unit min typ max Frequency Fc 314.9 315 315.10 MHz Modulation ASK Sensitivity 50ohm antenna,      input: 1KKbps -110 dBm Bandwidth +/-200 KHz Working voltage Vcc 3.0 5 5.5 V Working current IRC 433, no load 5.5 mA Decoder Output high level RL=500K 2.8 3.75 5 V Decoder Output lower level RL=500K 0.5 V Start-up time(Ton) 9 mS Image Rejection 293.6MHZ 20 dB Channels 1 4 Operate temperature -20 +70 ºC Electrical Characteristics:Condition: a=25ºC Vcc=5.0V Frequency=315MHZ Condition: a=25ºC Vcc=5.0V Frequency=433.92MHZ rameter Sym Condition Value Unit min typ max Frequency Fc 433.82 433.92 434.02 MHz Modulation ASK Sensitivity 50ohm antenna,      input: 1KKbps -110 dBm Bandwidth +/-200 KHz Working voltage Vcc 3.0 5 5.5 V Working current IRC 433, no load 7.5 mA Decoder Output high level RL=500K 2.8 3.75 5 V Decoder Output lower level RL=500K 0.5 V Start-up time(Ton) 9 mS Image Rejection 412.52MHZ 20 dB Channels 1 4 Operate temperature -20 +75 ºC Product Identification: Dimension: Interface definition: Pin no.(from left to right) Pin name Description 1 ANT Connect to Antenna 2 GND Ground 3 Data RF data output(For testing, no need connect) 4 VT Valid Transmission. VT in high state signifies that receives valid transmission waveform 5 D1 A channel output(connect to a LED or MCU I/O pins)L/ M: Latch or temporary Output Type 6 D2 B channel output(connect to a LED or MCU I/O pins)L/M: Latch or temporary Output Type 7 D3 C  channel output(connect to a LED or MCU I/O pins)L/ M: Latch or temporary Output Type 8 D4 D channel output(connect to a LED or MCU I/O pins)L/ M: Latch or temporary Output Type 9 VDD Power supply positive 10 GND Ground Part Number Definition: Model:RY-RM03-XXX-Y ASK Receiver XXX: Customer specified frequency (315,433.92MHz or others) Y: The Channel output mode L: Latch mode   M: Momentary mode Set and delete instruction for RM03 receiver module match the remote control RM03 can work after matching with the remote controls. 1. Learning Press the VT button, the learning LED  wil be bright then off, please press any button on the remote control, when the light LED is bright for 1s then off, the code of remote control is learnt successfully. 2. Delete After pressing learning button, if the receiver module haven't gotten any signal in 30s, decoder will delete this learning automaticlly. 3. If you need multi remote controls, you can do the same operation. 4. If you loss one or several remote controls, you can let all remote controls are invalid. Just press learning button 8s, and the learning LED is off, receiver module will delete the memory, and you can let the remote controls learn again. So the lost remote controls will be invalid.
