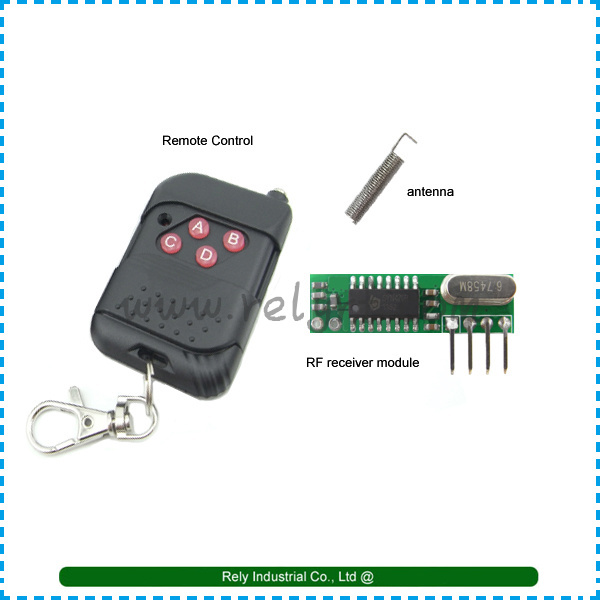

433.92MHz Wireless Remote Control and RF Receiver Module
Product Specifications
| Prod Model: |
RY034/RY-RXB12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
315,433.92MHz |
| Net Weight: |
31g |
| Operating Voltage: |
6V |
| Operating Current: |
<=12mA |
| Code Type: |
Fixed, Learning |
| Color: |
White, Black, Green, Blue, Dark Blue, Wooden |
| Antennal: |
External |
| Receiver Sensitivity: |
-107db |
| Material: |
Plastic |
| Transmission Distance: |
50-100m |
| Certification: |
CE |
| Universal: |
Universal |
| Signal Transmission: |
RF Remote Control |
| Application: |
Cars |
| Type: |
Button |
| Voltage: |
12V |
Product Description
RY0034 External antennel Remote Control Wireless alarm system
Model: RY0034
Features:
1.Fixed code: PT2264,2262
2.Fixed Frequency: 433.92MHZ
3.Battery: 27A/12V
4. Net weight: 31g/pcs
5. Transmision distance: 100-300 m ( According to different enviroment)
Receiver module Features:
Receiver Sensitivity: -107dBm;
Frequency: 315/433.92MHZ (Specially frequencies can be customized)
Very low RF re-radiation at the antenna
Operation temperature -30 ~85 degrees centigrade
Supply voltage: 3.3V-5.5v
Compatible with most AM (ASK/OOK) transmitters
Small package: SIL-6PIN (2.54mm of pin distance)
Dimension: 30X8.5X5 mm
Use range:
Home/store anit-theft alarm
Electric cars
Motorcycles alarm
Automobile
Car alarms
All kind of doors/windows controllers
LED lights and other industrial control
Warehouse doors
Smart key
Civil security as house security
|
Parameter |
Specification |
Unit |
Condition |
|
Min |
Type |
Max |
|
Frequency Range (Fc) |
433.82 |
433.92 |
434.02 |
MHZ |
|
|
Modulation Mode |
ASK |
|
|
|
Receiver Sensitivity |
|
-107 |
|
dBm |
1K Kbps/50 ohm |
|
Receiver Bandwidth |
|
200 |
|
KHz |
|
|
Start-up time(Ton) |
|
|
|
mS |
|
|
Operating Temperature |
-30 |
|
+80 |
degree |
|
|
Current (IRC) |
3.8 |
3.9 |
4.1 |
mA |
|
|
Working Voltage (Vcc) |
3.3 |
5 |
5.75 |
V |
|
|
Output high Level |
3.5 |
5.0 |
5 |
V |
RL=500K |
|
Image Rejection |
|
|
|
dB |
412.52MHZ |
|
Output Low Level L |
|
|
0.5 |
V |
|
Rely Industrial Co., Ltd. is a professional enterprise that specialized in researching, developing and manufacturing wireless RF products, and dedicates to provide customer modular products (OEM) or design project (ODM); It passed the ISO9001: 2000 International quality management system certification, and the product quality can meet FCC, CE, RoHS standards. With more than 10 years' research and sale of wireless fiield, we built a professional sales and R&D team with more than 20 people in January of 2009 in ChangSha city to promote our products and serve the buyers and phurchasers from all over the world.
Business scopes: Specializing in manufacturing wireless RF products: Both Hardware and Software's development and manufacture of Wireless Receiver and Transmitter Modules, Wireless Remote Control and Wireless Controller, Two-Way Wireless Transceiver Modules and IR to RF Transceiver Modules; Wireless network products, such as modems, routers, mouses etc.
Application scopes: Widely used for controlling electric doors/gates and windows, garage door and all kinds of openers, gate barrier, access control systems, industrial control, infrared remote control to RF remote control; GSM / GPS / TPMS car remote control, two-way car alarm system, remote control switches, communications and security fields, etc.
Business Goal: To provide strong technical support and services, good quality and competitive price products, we aim to build the most powerful RF products R&D production base in Asia.
We have strong research and technology team who commit to researching and producing the RF related products eg, RF circuit. Digital circuit, simulation circuit, software design. Our research managing team are experienced in the related area. So our products are with high quality and competitive price.
