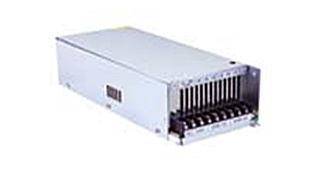

450W Single Way Output Switching Power Supply (S-450-12)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
S-450-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Output Power: |
450W |
| Input Voltage: |
170~264VAC Selected by Switch |
| Certification: |
CE,RoHS,CCC,ISO9000 |
Product Description
1) High Efficiency, High Reliability, Low Cost
2) AC Input Range: 170~264VAC Selected by switch
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) 2 Year Warranty.
Specification:
Single output: 450W
Input Voltage range: 170~264VAC Selected by switch
Size: 241× 124× 65mm
Remark: Size and structure can be adjusted according to client's request.
|
Specofication |
Model No. |
|
S-450-12 |
S-450-24 |
S-450-36 |
S-450-48 |
|
DC output |
12V 38A |
24V 19A |
36V 12.5A |
48V 9.5A |
|
Wave and noise |
240mVp-p |
240mVp-p |
250mVp-p |
250mVp-p |
|
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
83% |
85% |
86% |
87% |
|
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
|
AC input voltage range |
170-264VAC Selected by switch 47--63HZ 240-370VAC |
|
AC inrush current |
Cold-start current 18A/115V 36A/230V |
|
OverLoad protection |
105%--135% hiccup mode ,auto-recovery |
|
Over-voltage protection |
115%--145% rated output voltage |
|
Setup,rise,hold up time |
200ms 50ms 20ms |
|
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5Kv O/P-FG:0.5Kv 1minute |
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG :500VDC/100MΩ |
|
Working temperature |
~-10----+50ºC |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 Class B |
|
Weight / Size |
1.5kg / 241×124×65mm |
