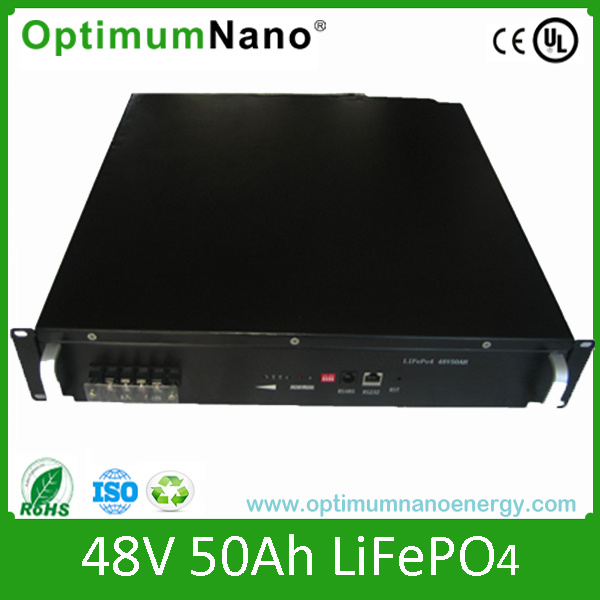

48V 50A Telecommunication Backup Battery Lithium

Name: 48V 50A Telecommunication Backup Battery Lithium
Brand: china-manufacturer-directory.com
SKU: 715732255
Availability: InStock
Rating: 4.7 (86 reviews)

Supplier:	OptimumNano Energy Co., Ltd.
Price:	US $ 1-1000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OPT-4850
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	48V
Rated Capacity:	50A
Size:	46044288mm
Weight:	30kg
Application:	Tele Back up Battery, UPS ,Solar System
Type:	Lithium-Ion Batteries
Usage:	Boat
Nominal Voltage:	48V
Discharge Rate:	High Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Electrolyte:	LiFePO4

Product Description

48V 50A Telecommunication Backup Battery

The best seller 48V 50AH LiFePO4 Battery for UPS with 232 and 485 Communication interface

It was used for Computer, Military, Medical, Telecommunications, Security, Mornitoring, Alarm System

No	Project	Standard	Testing method
1	Over-charge performance	No exploding, No fire The highest temperature <130°C	After standard charge ,charge with 3C5A to 72V, then change to charge with constant voltage and stop charge until the current is 0.05C5A, check the temperature and appearance of the battery.
2	Over-discharge performance	No exploding, No fire	After standard charge,discharge with 0.2C5A to 32V,then connect the positive and negative with 10Ω resistor,rest for 60 minutes.check the temperature and appearance of the battery.
3	Short-circuit performance in normal temperature	No exploding, No fire The highest temperature <130°C	After standard charged,keep in bell glass and connect positive and negative to short-circuit(the total impedance is not over than 50mΩ),stop testing when the temperature of the battery reduce 10 °C .check the temperature and appearance of the battery.
4	Nail performance	No exploding, No fire The highest temperature <130°C	After standard charge,lay on the nog,connect with thermocouple,then at a height to impale the middle of battery rapidly with a diameter of 3mm nail.,check the temperature and appearance of the battery.
5	Heating impact safety performance	No exploding, No fire	After standard charge,lay in a hot case,connect with thermocouple,with speed of(5 °C±2 °C)/min to up to 150 °C±2 °C then keep for 30 minutes.check the temperature and appearance of the battery.

Certitication
48V 50AH Lithium ion phosphate battery pack Specification

1)Rated votlag 48V
2)Rated capacity 50AH
3)Max charge votlage 58.4V
4)Cut off voltage 40V
5)Continous discharge current 5A
6)Max Discharge current 25A
7)Battery size 460*442*88mm
8)Battery weight: 30kg

Successful Cases

1. We have produced 1200 sets 48V 40Ah LIfePo4 battery pack for Mongolia China Mobile Telecommunication.

2.1300 sets 48V 50AH Lithium ion phosphate battery pack for Guangxi Province China Mobile Telecommunication.

LiFePO4 battery common features

Safe the safest Li-ion battery so far, accredited with CE&UL.

Environment-friendly Accredited with ROHS, without any hazardous and noxious substances.

Powerful Albe to discharge with 20C and 65Cmax.

Long cycle life: Over 2000 cycles with capacity staying at 80% min.

No memory effect Always ready for charge and use, with no need to charge after full dischange.

Wide temperature range Avaliable for use when the temperature ranges from -20° C to 70° C

Optimum Battery

Main Supplier of New Energy Automobiles Power Battery for The Universide Shenzhen 2011

The leading Supplier of Lithiuim Iron Phosphate Battery for New Energy Automobiles in China

Large-Scale Supply of LifePo4 Battery for Electric Bicycles and Other Light Vehicles.

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
