Shenzhen Ele Technology Co., Limited >> 4CH CCTV Camera Security Systems with 10.1" TFT Monitor

4CH CCTV Camera Security Systems with 10.1" TFT Monitor

Supplier:	Shenzhen Ele Technology Co., Limited
Price:	US $ 142-147/Set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DH1014LK-600W2D2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Playback Resolution:	PAL/NTSC
Camera:	4 PCS IR CCTV Camera Security System
Motion Detection:	Support
Email Alarm:	Support
Storage Capacity:	1PC of up to 2tb SATA HDD
Mobile Phone Surveillance:	Win CE/ Symbian/ iPhone/ Blackberry/ Android
Certification:	CE/ FCC/ RoHS
Special Feature:	Waterproof / Weatherproof
Cms:	Yes
Warranty:	2 Year
Type:	Monitoring System
Application:	All-Round Monitoring
Feature:	Vandal-proof
Video Capture System:	Video Camera
Video Transmission System:	Coaxial-Cable Transmission
Software Function:	Monitoring
Software Usage:	Mobile Phone Monitoring Software
Client Software:	Client Software
Model:	Monitor Type
Sensor:	CCD
Kind:	Manual Focus Lens
Technology:	Infrared
Horizontal Resolution:	650tvl

Product Description

4CH CCTV Camera Security Systems with 10.1" TFT Monitor

Specifications:

Model	DH1014L
Video Compression	H.264
System Resources	Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously
Interface	User-friendly graphical user interface
Input Devices	Front panel, USB mouse, remote controller
Video Input	4-CH Composite Video 1.0Vp-p/75Ω, NTSC/PAL
Monitor Output	NO
Spot Output	1-CH Composite Video Output 1.0Vp-p/75Ω, NTSC/PAL
HDMI Output	1-CH HDMI, Adjustable resolution: 1920×1080, 1440×900, 1360×768,
HDMI Output	1280×720, 1280×1024, 1024×768
LCD	LCD Adjustable resolution: 1920×1080, 1440×900, 1280×720, 1280×1024, 1024×768
Video Standard	PAL/ NTSC
Record Speed	Real-time: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel
Video Partition	1/4 Windows
Recording Mode	Manual recording, always recording, motion detection recording, schedule recording
Resolution	Real-time monitor(PAL/NTSC):720P(1280×720) /1280×720), Support dual streams: sub-stream resolution CIF 352×288/352×240
Playback Resolution	4-CH Real-time playback(PAL/NTSC): 720P (1280×720 25f/s /1280×720 30f/s)
Audio Compression	G711, 16Kbps
Audio Input	1-CH 200-2000mv5kΩ, RCA
Audio Output	1-CH 200-3000mv1kΩ, RCA
Network	RJ45 10M/100M/1000M self-adaptable Ethernet port, support TCP, FTP, PPPOE, 3G, Web browser, CMS, NetViewer
Mobile OS	iPhone, Android
Email for alarm	Support SMTP server, Support SSL
DDNS	Build in free privacy DDNS, DYNDNS, 3322, perfect, myq-see and no-ip
Alarm Input	NO
Alarm Output	NO
Hard Disk	1 HDD, each support 4TB HDD. Support SATA
USB Interface	2 USB 2.0 ports

DVR Package includes:
1XHD 10.1 inch 4CH CCTV DVR;1X mouse;1X Power supply;1X Optical disc;1X User's Manual
2X1/4 CMOS 600TVL Dome IR camera
15-25M IR Distance
2X1/4 CMOS 600 TVL waterproof Camera
20M IR Distance
1X Power Supply For Cameras (with Power Splitter Cable)
4X 60feet power/ Video all in one cable

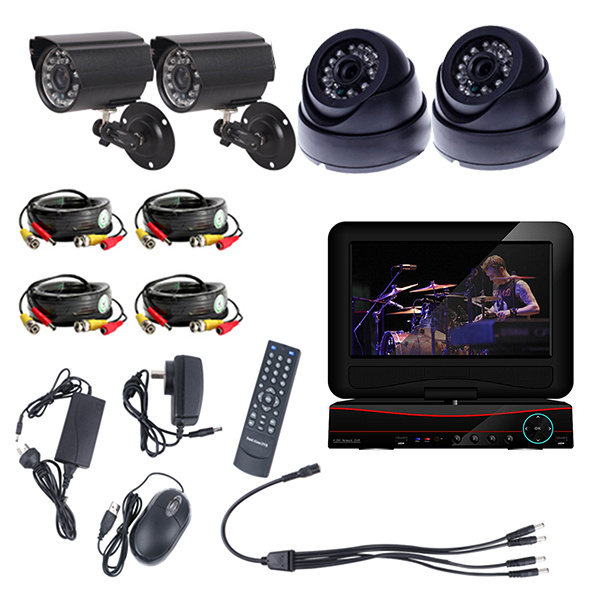

Package Include:
1X H.264 4-CH Stand Alone DVR with 10.1"Monitor
2X 1/4" CMOS 600TVL Dome IR camera
2X 1/4" CMOS 600TVL waterproof Camera
1X Power Supply(with Power Splitter Cable)
4X 60feet power/ Video all in one cable
