| Supplier: | a&S(Shenzhen) Industrial Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

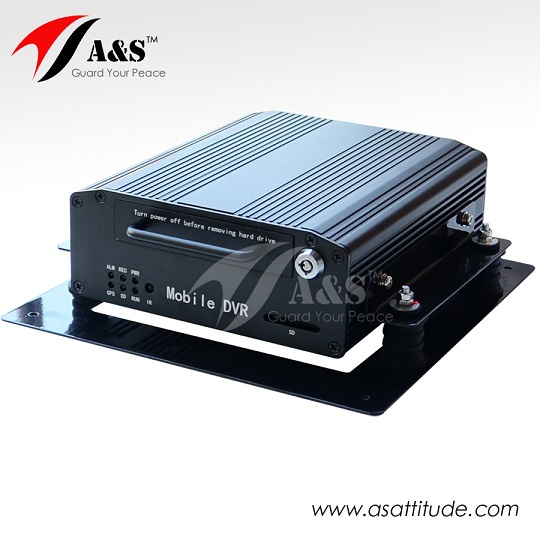

| Prod Model: | AS-M500D |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: | DC8V-36V |
| Framerate: | 1~100(PAL)/1~120(NTSC)Fps |
| AV Input: | 4CH |
| Video Resolution: | up to 720*480 |
| Max Memory: | 1*2tb HDD & 1*128GB SD Card |
| Application: | Car, Taxi, Bus, Truck, Other Kinds of Vehilce |
| Alarm: | 4CH Alarm Input, 2CH Alarm Output |
| GPS: | Optional |
| 3G: | Optional |
| WiFi: | Optional |
| Compression Format: | H.264 |
| Interface: | BNC |
|
System |
Language | Chinese/English/Russian |
| Operate System | Graphical menu (OSD menu) | |
| Password security | user password, administrator password | |
|
Video |
Video Input/ output | 4 Channel Composite video input/1 Channel Composite video output |
| Video Display | 1.4 channel display | |
| Video System | PAL,NTSC | |
| Compression | H.264 Main profile,75fpsD1/s | |
| Audio | Audio Input | 4 channel audio input |
| Audio output | 1 channel audio output | |
| Record | Sound and video synchronized recording | |
|
Image processing and Storage |
Image format | CIF/HD1/optional |
| Video standard | ISO14496-10 | |
| Video Frequency |
CIF: 384Kbps(L), 512Kbps(M),768Kbps(H) HD1: 512Kbps(L),768Kbps(M),1024Kbps(H) D1: 512Kbps(L),768Kbps(M),1024Kbps(H) |
|
| Audio Frequency | 8KB/s | |
| Data storage | Support 1x2TB SATA HDD and 1x128GB SDcard | |
| Alarm | Alarm Input | 4 Channel Alarm input <4V Low Level Alarm,>4V High Level Alarm |
| Alarm Output | 2 Channel Alarm output,5V and 12V output | |
| Interface | RS485 interface | support 2pcs RS485 interface |
| RS232 interface | support 2pcs RS232 interface | |
| Acceleration sensor | Sensor | Built-in Acceleration Sensor, G-Sensor |
| Software | PC playback | Analyze the car information when the video playback on PC |
| Power Input | 8-36V | DC+8V~+36V,if lower than 8V,or higher than 36V,the MDVR will be shutdown, into protect status |
| Power Output | 12V | Output :12V(+/-0.2V),max 2A |
| Key Signal | ≤4V | Key off |
| ≥5V | Key on | |
| Video Input(Ω) | 75Ω | 75Ω/CH |
| Video Output | 2Vp-p | One 2Vp-p CVBS One 75Ω |
| I/O | 0-4V | Low voltage alarm |
| >4V | High voltage alarm | |
| Temperature | -40C ~ 80C | -40C ~ 80C with good environment |
