4CH H. 264 CCTV DVR IR Camera Security System

4CH H. 264 CCTV DVR IR Camera Security System
Supplier: Shenzhen Ele Technology Co., Limited
Price: US $ 76-86/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: DH3204K-600W2D2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compression Algorithm: H. 264 Baseline
Playback Resolution: PAL/NTSC
Camera: 4 PCS IR CCTV Camera
Model No: Dh3204k-600W2d2
Alarm Input: 4 Channel
Power Supply: PTZ Control
Power Consumption: 25W
RS485: RS485
Certificate: CE/FCC/RoHS
Export Markets: Global
Type: Monitoring System
Feature: Vandal-proof
Video Capture System: Video Camera
Software Function: Monitoring+Control
Software Usage: Mobile Phone Monitoring Software
Client Software: Client Software
Model: Surveillance
Sensor: CCD
Kind: Manual Focus Lens
Technology: Infrared
Horizontal Resolution: 650tvl

Product Description


4CH H. 264 CCTV DVR IR Camera Security System

4CH H.264 cctv camera system 4 camera security system,CCTV DVR WITH HDMI,DVR KITS


DH3204 DVR Introduction:
4 channel H.264 Real Time Surveillance Security DVR
support  Symbian,WinCE,For iPhone app,Android,for BlackBerry.
H .264 compression ;
Full D1: 4CH D1 realtime recording(100fps/120 fps) ,1 CH D1 Playback
Control : 1. USB Mouse; 2.IR remote control; 3. Network
Support network
Phone Monitor:support  Symbian,Windows Mobile,For iPhone,Android,BlackBerry Operation system.
Suppor RS485 PTZ control
Full real-time video, full real-time playback of multi-way synchronization
4 channel video input, 1 HDMI,1 channel video output, 1 VGA output;
Support for a SATA HDD interface;max support 3000G HDD.support install HDD in the box.
The unique triple watchdog function, ensure that the equipment never crash;
with Motion Detection
Two Years Warranty.
Specification:
ModelDH3204
SystemSystem ResourcesLive,Recording,Playback,Backup&Remote access
Control ModeUSB mouse,Network,IR remote control
CompressionH.264 /G711
VideoInput4 channel,BNCx4,Composite;1.0Vp-p/75
Output1 channel BNC/TV,1 channel VGA, 1 channel HDMI
AudioInput2 channel
Output1 channel
DisplayDisplay Split1,4
Resolution1920x1080P;1280*1024;1024*768
Frame RateDisplayPAL:100 FPS NTSC:120 FPS
RecordPAL:100 FPS  NTSC:120FPS
AlarmNO
Playback&BackupPlayback FunctionsPlay,Pause,Stop,Fast play,Slow play,Full screen,Backup selection
Backup ModeUSB,Network download
NetworkInterfaceRJ45 Port,10/100MB
FunctionsTCP/IP, PPPoE ,DHCP,DDNS,IP Fliter,UDP,Email
Remote OperationMonitor,PTZ control,Playback,System setting,File download,Log information
Phone Monitorsupport Symbian,WindowsMobile,For iPhone,Android,BlackBerry Operation system.
Hard disk1 SATA port,Max 3000G HDD support
(DVR not include HDD )


Auxiliary InterfaceUSB Interface2 ports
RS485PTZ control
EnvironmentsPower SupplyAC 100~240 V,50/60Hz
Power Consumption25W
Dimension1U
Weight2.0kg

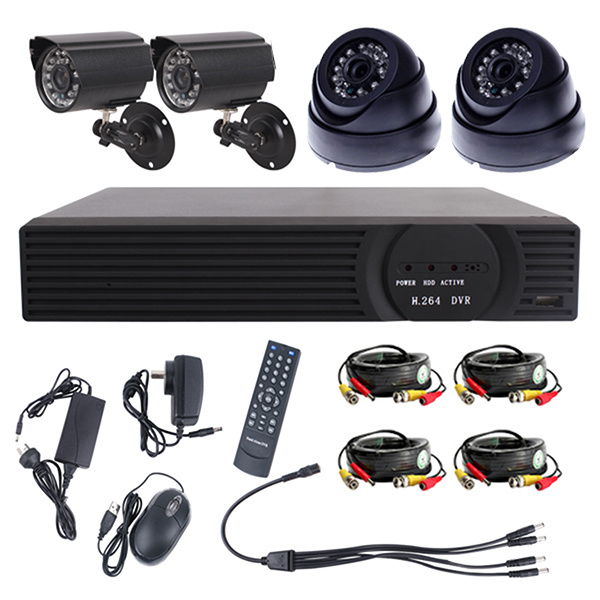

DVR Package includes:
1 x DVR
1 x IR remote control
1 x DVR power adapter
1 x Mouse
1 x CD/User manual
2X1/4 CMOS 600TVL waterproof Camera
15M IR Distance,3.6mm len
2X1/4 CMOS 600TVL  Dome  camera
15-25M IR Distance,3.6mm lens
1X Power Supply For Cameras (with Power Splitter Cable)
4X 60feet power/ Video all in one cable

Package Include:
1X 4CH H.264 Stand Alone DVR(Not include Hard Drive)
2X 1/4" COMS 600TVL Dome IR camera
2X 1/4" COMS 600TVL waterproof Camera
1X Power Supply(with Power Splitter Cable)
4X 60Feet power/ Video all in one cable
