Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
model | 1.0Megapixel Outdoor ARRAY LED WIFI Bullet IP Camera ELP-IP7100BW |
camera |
|
image sensor | OV9712 CMOS |
min.illumination |
Color:0.1Lux @(F1.2,AGC ON) Black/white:0.2 Lux @ (F1.2,AGC ON) |
shutter | 1/50(1/60)s - 1/10,000 s |
lens | HD professional 4mm/6mm/8mm lens optional |
Day&Night | 2PCS Array LED with IR Cut |
compression | |
video compression | H.264 HighProfile, JPEG snapshot |
bite rate | 100Kbps~6Mbps |
image | |
max.image resolution | 1280*720 |
frame rate | 50Hz:25fps (1280*720) 60Hz:30fps (1280*720) |
image setting | Saturation, brightness and contrast are adjustable through IE browser or client. |
network | |
storage | Network storage |
intelligent alarm | Motion detection, video loss, cable break, IP address conflicts |
protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 ) |
basic | anti-flicker, dual-stream, heartbeat, password protection |
interface | |
net interface | One RJ45 10M/100M |
WIFI | Support |
general | |
operating condition | -20 to 70 degree, 90% or less(non-condensing) |
Power supply | DC12V±10% |
Protection range |
System | Model | NVR8004T-F |
Main Processor | 1 X HI3515A | |
Operating System | Embedded LINUX | |
System Resources | Pentaplex function: live, recording, playback, backup & remote access | |
Operation interface | 16-bit true color graphic menu operation interface, support mouse operation | |
Preview | 1/4 | |
Video | Video Standards | PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
Video Compression | H.264 High profile | |
quality supervision | Monitor: D1; VGA: high definition; HDMI: hd | |
Video Input(IP) | 4*960P/720P | |
Video Recording | 960P/720P/960H/D1/HD1/CIF/QCIF | |
Motion Detection | Zones:396(22*18)detection zones, Multi-level sensitivity can be set(Local channels only) | |
Audio | Audio Compression | G711A |
Bidrectional Talk | N/A | |
Record &Playback | Recording Mode | Manual>Alarm>Video Detection>Continuous |
Playback | 1/4channel playback simultaneously | |
Search Mode | Time/Date, Alarm, Motion Detection & exact search(accurate to second) | |
Storage &Backup | Space Occupation |
Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
Video saved | Local HDD, network | |
Backup Mode | Network download/Flash stick/USB/SATA | |
Interface | Video Input(BNC) | N/A |
Video Output | 1ch BNC output, 1ch VGA output, 1ch HDMI | |
Audio Input | N/A | |
Audio Output | 1 channel RCA | |
Alarm Input | N/A | |
Relay Output | N/A | |
Net Interface | RJ-45 10M/100M | |
PTZ Control | 1 RS485 | |
USB Interface | 2* USB2.0 port for mouse and backup | |
Hard Disk | 1 SATA port(Max 1 x 4T) | |
Environmental | Power Supply | 12V/3A |
Dimension | 25.5 x 22.5 x 4.5cm | |
ONVIF | Standard |

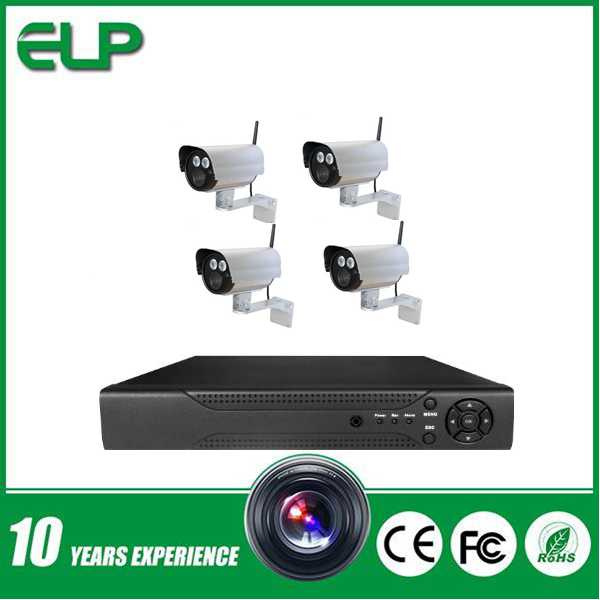

Prod Model: | ELP-NVR8004TF-IP7100BW |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Style: | Wireless Security Camera Systems |
Camera Resolution: | 720p, 1megapixel (1080P, 2megapixel Optional) |
Camera Sensor: | CMOS Ov9712 |
IR LED: | 2PCS IR LEDs to 50 Meter |
Wireless WiFi: | Support |
NVR HDD: | 1*4t |
NVR Digital Input: | 4*960p / 4*720p |
Display Video: | 1/4 CH |
Video Output: | BNC/VGA/HDMI |
Audio Input: | 1*RCA Input & Output |
Video Capture System: | Video Camera |
Video Transmission System: | Network Cable Transmission |
Model: | Surveillance |
Client Software: | Without Client Software |
Software Usage: | Computer Monitoring Software |
Software Function: | Monitoring+Control |
Type: | Monitoring System |
Technology: | Wireless |
Application: | Sound Monitoring |
Feature: | Wireless WiFi |
Sensor: | CMOS |
Kind: | Wireless WiFi Camera |
Horizontal Resolution: | 720p, 1megapixel (1080P, 2megapixel Optional) |
