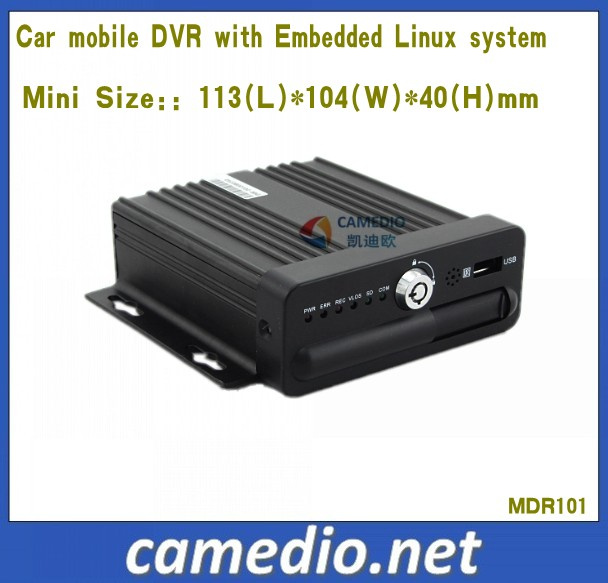

Shenzhen Camedio Technology Co., Ltd. >> 4CH Mini Car Mobile DVR for Vehicle/ Bus/Taxi/Truck with Auto Record Function & USB Slot

4CH Mini Car Mobile DVR for Vehicle/ Bus/Taxi/Truck with Auto Record Function & USB Slot

Name: 4CH Mini Car Mobile DVR for Vehicle/ Bus/Taxi/Truck with Auto Record Function & USB Slot
Brand: china-manufacturer-directory.com
SKU: 694751932
Availability: InStock
Rating: 4.7 (83 reviews)

Supplier:	Shenzhen Camedio Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	MDR201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Channels:	4
Port:	4pin Avaiation Port
Protect:	Double Anti-Shock
Power:	8-48V Wide Voltage
Additional Function:	3G,GPS, RS485, RJ45, G-Sensor etc.
Usage:	for Van, Car, Bus, Taxi, Truck, Train, Ship etc.
Warranty:	12 Months
Type:	Standalone
Video Compression:	H.264
Compressed Format:	H.264
Operating System:	Linux
Application:	Commercial DVR
Video Input/Output:	4 Channel
Audio Input/Output:	4 Channel
Remote Control:	With Remote Control
Interface Type:	Aviation

Product Description

H. 264 4 channel mini mdvr sd card with password protection function
Mobile DVR overview:
* Embedded Linux system
* H. 264 Compression
* Support 4 channel real time recording
* 4 channel CIF/HD1/D1 recording
* Special video format and password-protection keep data away from destroy
* Chinese/English menu optional
* With 3G+GPS functions (optional)
* Support USB data backup

Specification:
* Standard H. 264 video compression, supports dual stream network transmission
* Supports pentaplex operation: Preview, record, playback, backup, network transmission
* Support max 64GB SD card
* Support alarm pre-recording & motion detection
* Supports real-time remote view through 3G
* GPS information embedded in stream (optional), support electronics fence and historical track playback
* Supports time-lapse recording after the car is powered off
* Supports recording and displaying the license plate number
* Supports SD card overwritten by days
* With digital zoom capabilities when previewing the video
* With password protection function
* Supports PTZ control
* Supports transmitting audio via network
* Supports backup and upgrade with SD card
* Stable aluminum alloy structure with shock absorber
* Self recovery after power reconnected

Parameters
H. 264 4CH mini 3g mobile dvr for vehicle car system

Items	Device parameters	Performance index
Name	Product Name	4 Channel Mobile DVR (SD Storage)
System	Operation System	Linux
	Operation Interface	Graphical Interfaces, Chinese/English optional
	File System	Proprietary Format
	System Privileges	User Password
Video	Video Input	4ch SDI Independent Input: 1.0Vp-p , 75Ω.Both B&W and Color Cameras
	Video Output	1 Channel PAL/NTSC Output, 1.0Vp-p , 75Ω , Composite Video Signal
	Video Display	1 Or 4 Screen Display
	Video Standard	PAL:25frames/Sec;NTSC:30frames/Sec
	System Resources	PAL:100 Frames; NTSC:120 Frames
Audio	Audio Input	Two Channels Independent Input 500Ω
	Audio Output	1 Channel(4 Channels Can Be Convert Freely)
	Basic Output Level	1.0_2.2V
	Distortion Plus Noise	≤-30dB
	Recording Mode	Sound And Image Synchronization
	Audio Compression	ADPCM
Alarm	Alarm in	3 Channels Independent Input. High Voltage Trigger
	Alarm out	1 Channels Independent output
	Move Detect	available
USB Interface	Host Access	Can Expand One For USB Disk Backup
Network Interface	3G	Can Expand One WCDMA or CDMA2000 Module Inside
GPS Interface	GPS	Can Expand GPS Module inside
Extend Interface	Intercom	Can Expand Intercom Module Inside
Others	Power Consumption	DC8-36V 5% ≤ 10W
	Working Temperature	-20 °C ~ +85 °C ≤80%
	Clock	Built-In Clock, Calendar
Packaging	Product Size	113(L)104(W)40(H)mm
Packaging	Product Net Weight	0.60kg

Shenzhen Camedio Technology Co., Ltd. is a professtional manufacturer of Car electronical products, which is located in Shenzhen, the center of electronic products in China. Our mainly products include car camera, car monitor, 2.4GHz Wireless system, rear view camera, parking sensor, rear view system etc.

Camedio Tech has been in these business lines for about 5 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions. Up to now, Our company has been dedicated to the development, design and production of a wide rang of standard and customized car electronics.

We are always trying our best to benefit our customers and to provide our customers with quality products and best service, we have professional teams of designing, production and QC. Many of them are skillful and experienced engineers. We have the competitive price based on high quality and with an excellent after sales service and a series of warranty service to benefit our customers, all those make us won good reputation and respect in the domestic and oversea markets.

"Quality, Reputation and Service come First" is the key to Camedio success. The trust of customer at home and abroad has been gained for the reliable performance and smart design of the product of company.

Welcome for your valuable inquiry and visiting our company at any time!
