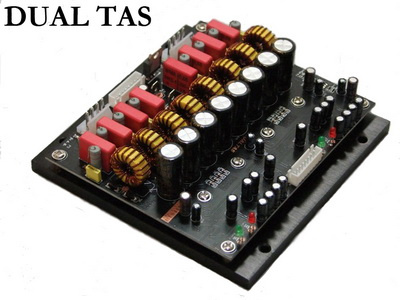

DUAL TAS FEATURES:
2PCS tas5630 Hi-Fi class D chip inside
Stage based on the new type high stability support circuit, tas chip can delivery out full power and work stability.
Can jump as 2 channel mode for under 1ohm loader
A wide set of features for plug and play implementation into applications such as
Home theatre and other Hi-Fi AMP equipment
Auto fan cool inside, adjusted by the chip tempreture
Auto Fast Reset circuit inside, support the chip full power our safety
Easy assemble structure, easy using
IN THIS VERSION, WE HAVE REVISED THE TAS SERIES PROTECT LATCH BUG, NOW CAN AUTO RESET AND AUTO RESTART ANYTIME.
DUAL TAS SPECIFICATIONS:
POWER OUT: 4× 300W/ 4Ω /10%THD+N
2× 600W/ 2Ω /10%THD+N
2× 600W/ 1Ω /1%THD+N
FREQUENCY RESPONSE: THD+N ≤ 0.05% / 20-20kHz / ± 1dB/1W
INPUT SENSITIVITY: 0dB(1Vrms)
POWER SUPPLY: 50V/40A
AUXILIARY POWER: +/- 15V/100mA
DIMENSIONS: 108MM(length)*130(width)*62mm(height)
Incude heasink height
WEIGHT: 0.49Kg
