Product Specifications

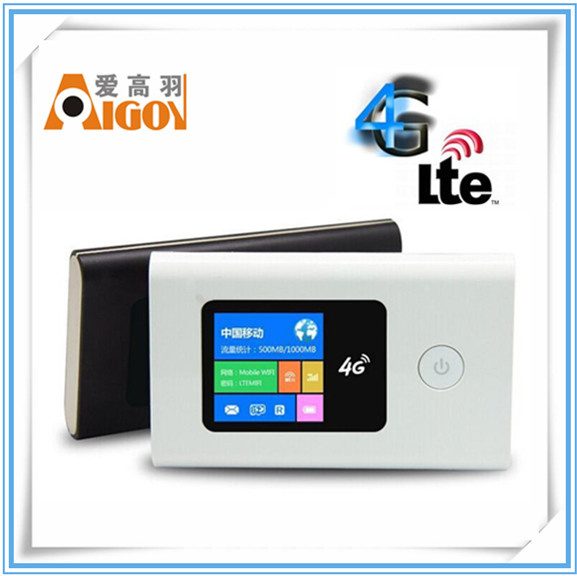

| Prod Model: |
LR215 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Screen: |
LCD, LED |
Product Description
Platform
Primary Chipset Qualcomm MDM 9215
WiFi Chipset Atheros 6003
Key Drivers
Network TDD-LTE, FDD-LTE, TD-SCDMA, HSPA+, HSPA, HSDPA, UMTS, EDGE, GPRS
Weight 140g
Form-Factor 113mmx64.5mmx13.5mm
Technical Standard
FDD LTE 3GPP/3GPP2 Release8, Category 3, up to 100M DL and 50M BPS UL@20MHz bandwidth
TD-LTE Support (3GPP/3GPP2 Release9, Category 3, up to 68M DL and 17M BPS UL@20MHz bandwidth)
TD-HSPA Support (3GPP/3GPP2 Release7, up to 2.8M BPS DL and 2.2M BPS UL)
DC-HPSA+ 3GPP/3GPP2 Release8, up to 42Mbps, category 24, 5.76M BPS UL
HSPA+ 3GPP/3GPP2 Release7, up to 14.4Mbps, category 10, 5.76M BPS UL
HSPA 3GPP/3GPP2 Release6, up to 7.2M BPS DL, category 7/8, 5.76M BPS UL
UMTS 3GPP Release4, up to 384 Kbps DL and UL
EDGE 3GPP Release4, Multislot class 12, up to 237 Kbps
GPRS 3GPP Release4, Multislot class 10, up to 85.6Kbps
Network
TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz)
FDD LTE Band7((UL 2500-2570MHz/DL 2620-2690MHz) / Band3(UL 1710-1785MHz/DL 1805-1880MHz)
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
UMTS "Band1(UL 1920-1980 MHz/DL 2110-2170 MHz) / Band2(UL 1850-1910MHz/DL 1930-1990MHz) /
Band5(UL 824-849MHz/DL 869-894MHz)/Band8 (UL 880-915MHz/DL 925-960MHz)"
GSM 850/900/1800/1900 MHz
Power Class
LTE/TD-SCDMA/UMTS Power Class 3
GPRS 850/900 Power Class 4
EDGE 850/900/1800/1900 Power Class E2
Language Supported
Language Supported Multi language support Customization
OS Supported(Driver)
Microsoft OS Windows 2000, XP, Vista 32/64, Windows 7 & 8
Mac OS Mac OS X 10.5 and Later, Up to X10.8.0
PC Connectivity
Auto installation/auto detection Plug&Play
AT command support 3GPP Standard
WEB UI
WEB(Browser support) Firefox V8.0.1+/Safari V4.0+/IE 7.0+/Chrome 10.0+
SMS YES Inbox and Outbox
Plug & Play YES
Auto Connect Yes
Signal strength Yes
Connection Status Yes
Auto-Select Network Yes
Network Profile Yes
Help Menu Yes
Session Statistic information Yes
Data call duration Yes
Data byte count Yes
Battery & Endurance
Battery capacity 2900mAh Lithium-ion, disassembly
Endurance time 8 H(LTE), 10H(UMTS)
Standby time 300 H
Display
LCD 1.44'' OLED, 128*128
LED YES Instructions MiFi Status
Button
Power button YES
Connect button YES
Reset button YES
WPS button YES
Antenna
4G/3G/2G Built-in
WiFi Built-in
External inferface
SIM slot Standard SIM
USB Micro USB 2.0 USB port for charging and PC connectivity
Micro SD card slot Up to 32GB
WiFi
Number of attached users 10
WiFi Security WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
SSID OPEN Disbale YES
WPS Function YES
WiFi support 2.4GHz b, g, and n YES
