Product Specifications
| Prod Model: |
GYF-1012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
166.3*40*17.7mm |
| Type: |
CATV（Cable Television）Equipment |
Product Description

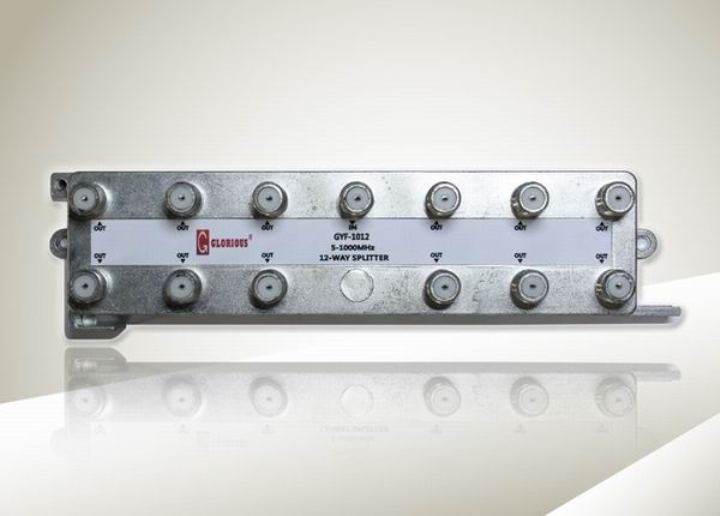

12-Way CATV Splitter (GYF-1012)
Description of the splitter:
Zinc die-cast housing, nickle-plated
Simple installation and built-in two grounding blocks
Micro-strip circuit design and perfect performance index
The splitter is designed for SATV/CATV
Power passing-24V 0.5A(MAX. )
All ports of the splitter are F-(f)connector, 75 Ohm
|
Parameter |
Frequency (MHz) |
2-way splitter |
3-way splitter |
4-way splitter |
6-way splitter |
8-way splitter |
|
Insertion Loss (dB) |
5~50 |
≤3.5 |
≤5.5 |
≤7.0 |
≤9.2 |
≤10.8 |
|
50~550 |
≤3.6 |
≤5.8 |
≤7.2 |
≤9.5 |
≤11.2 |
|
550~862 |
≤3.8 |
≤6.0 |
≤7.5 |
≤ 9.5 |
≤11.5 |
|
862~1000 |
≤4.0 |
≤6.3 |
≤7.8 |
≤10.5 |
≤12.0 |
|
Mutual Isolation(dB) |
5~50 |
≥25 |
≥25 |
≥25 |
≥25 |
≥25 |
|
50~550 |
≥30 |
≥ 30 |
≥30 |
≥30 |
≥30 |
|
550~862 |
≥25 |
≥26 |
≥26 |
≥25 |
≥25 |
|
862~1000 |
≥25 |
≥23 |
≥23 |
≥23 |
≥22 |
|
|
5~50 |
≥20 |
≥18 |
≥20 |
≥18 |
≥18 |
|
|
50~550 |
≥22 |
≥22 |
≥22 |
≥20 |
≥20 |
|
Return Loss (dB) |
550~862 |
≥22 |
≥22 |
≥20 |
≥20 |
≥20 |
|
|
862~1000 |
≥20 |
≥18 |
≥18 |
≥18 |
≥18 |
|
Parameter |
Frequency (MHz) |
8-way splitter |
10-way splitter |
12-way splitter |
14-way splitter |
16-way splitter |
|
Insertion Loss (dB) |
5~50 |
≤10.8 |
≤12.5 |
≤13.0 |
≤14.0 |
≤14.0 |
|
50~550 |
≤11.2 |
≤13.0 |
≤13.5 |
≤14.5 |
≤14.5 |
|
550~862 |
≤ 11.5 |
≤ 13.5 |
≤ 14.0 |
≤ 15.5 |
≤ 15.5 |
|
862~1000 |
≤ 12.0 |
≤ 14.0 |
≤ 14.5 |
≤ 16.0 |
≤ 16.0 |
|
Mutual Isolation(dB) |
5~50 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
|
50~550 |
≥ 30 |
≥ 30 |
≥ 30 |
≥ 30 |
≥ 30 |
|
550~862 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
|
862~1000 |
≥ 22 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
|
Return Loss (dB) |
5~50 |
≥18 |
≥17 |
≥17 |
≥17 |
≥17 |
|
50~550 |
≥20 |
≥18 |
≥18 |
≥18 |
≥18 |
|
550~862 |
≥ 20 |
≥ 18 |
≥ 18 |
≥ 18 |
≥ 18 |
|
862~1000 |
≥ 18 |
≥ 17 |
≥ 17 |
≥ 17 |
≥ 17
|
