Product Specifications
| Prod Model: |
ARP-DP5725-5850-14-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
5725-5850MHz |
| Gain: |
14dBi |
| Polarization: |
Vertical and Horizontal |
| Service: |
24 Hours on Line |
| Factory: |
OEM, ODM Antenna Factory |
| Usage: |
Communication Antenna |
| Directionality: |
Directional Antenna |
| Operating Wavelength: |
Short Wave |
| VSWR: |
1.5~2 |
| Material: |
UV Protected ABS |
Product Description

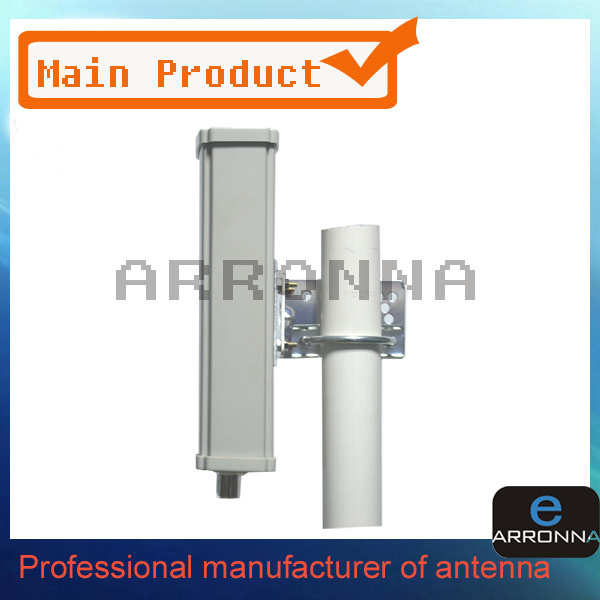

5725-5850MHz wireless sector antenna, The wireless sector Antenna is specially designed for wireless access system, GSM, CDMA dual frequency cellular mobile communication and WLAN wireless network indoor bestrew system. It features wide bendwidth, share with GSM, CDMA and WLAN system.
1. Point-to-point sent and receive signal
2. Good standing wave performance, high gain
3. Big F/B ratio, strong structur
4. OEM, ODM antenna are available
Company qualification:
SGS-certified substantive manufacturer
Hi-tech enterprise
Ordinary taxpayer enterprise
With authority of independent imports and exports
Pass ISD9001: 2008
Pass ISO14001: 2004
The sole antenna supplier of GLOBETELECOM in 2010
OEM and ODM are available, welcome to join us!
|
Product Name |
5.8GHz wireless sector antenna |
|
Description |
ARP-5725-5850-14: The wireless sector antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof. |
|
Electric Specification |
|
Model NO |
ARP-DP5725-5850-14-65 |
|
Frequency Range-MHz |
5725-5850 |
|
Bandwidth-MHz |
125 |
|
Gain-dBi |
14 |
|
Horizontal Bear width-° |
65 |
|
Vertical Bear width -° |
20 |
|
F/B Ratio |
≥20 |
|
VSWR |
≤1.7 |
|
Input Impedance-Ω |
50 |
|
Polarization |
Vertical and horizontal |
|
Maximum Power-W |
20 |
|
Connector |
2*N |
|
Mechanical Specifications |
|
Dimensions-mm |
250*165*67 |
|
Weight-kg |
1.5 |
