Product Specifications
| Prod Model: |
DDS13521 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Class: |
Active Class 1.0,2.0 |
| Rated Current: |
5(20)a ,5(25)a ,5(30)a,5(32)a,,etc |
| Display Method: |
LCD 6+1 |
| Width: |
18mm Width |
| Certificates: |
CE |
| Phase: |
Single Phase |
| Connection: |
Directly Connection |
| Output Voltage: |
220V/110V |
| Measuring Energy Range: |
Active |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description
Specifications

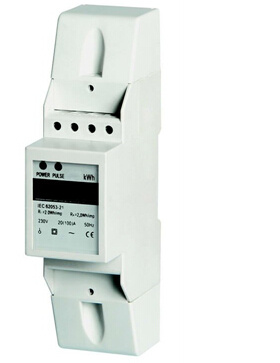

5 A Single phase din rail watt hour meter
Rated current:5(20)A,5(25)A,5(30)A,5(32)A
Rated voltage:220V110V
OEM service offere

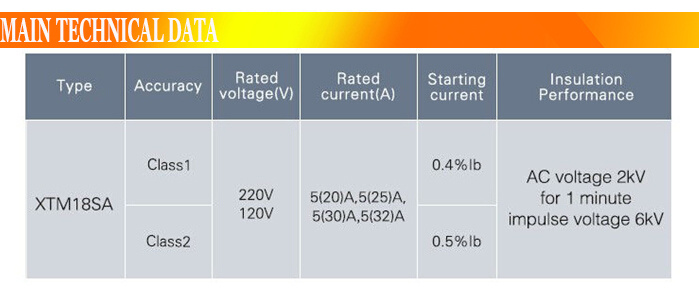

Product Name | 5 A Single phase din rail watt hour meter |
Rated Current In(A) | 5(20)A, 5(25)A, 5(30)A, 5(32)A |
Rated Frequency | 50/60HZ |
Installation | On symmetrical DIN rail 35mm/ or Panel mounting |
Mounting | Surface mounting
Base screw
Din rail base upon request |
- The installation altitude less than 2000m
- The surrounding temperature range: from -5°C ~ +40°C
- In the non-explosive condition. or without adequate erosion and destruction of gas and dust conductive area .
- Without rain and snow invade
- Pollution level 2
2.Functions and features

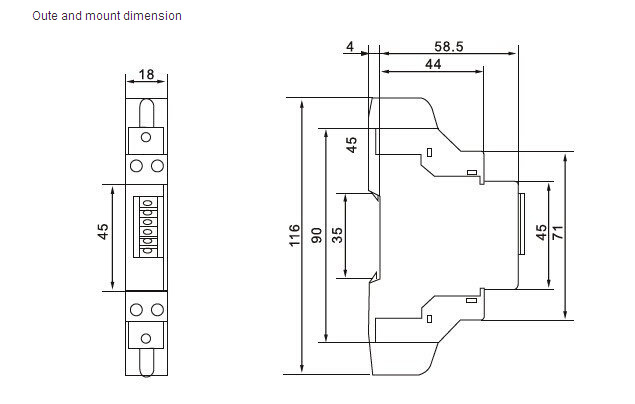

1).35mm standard DIN rail installation, complying with standard DIN EN5002.

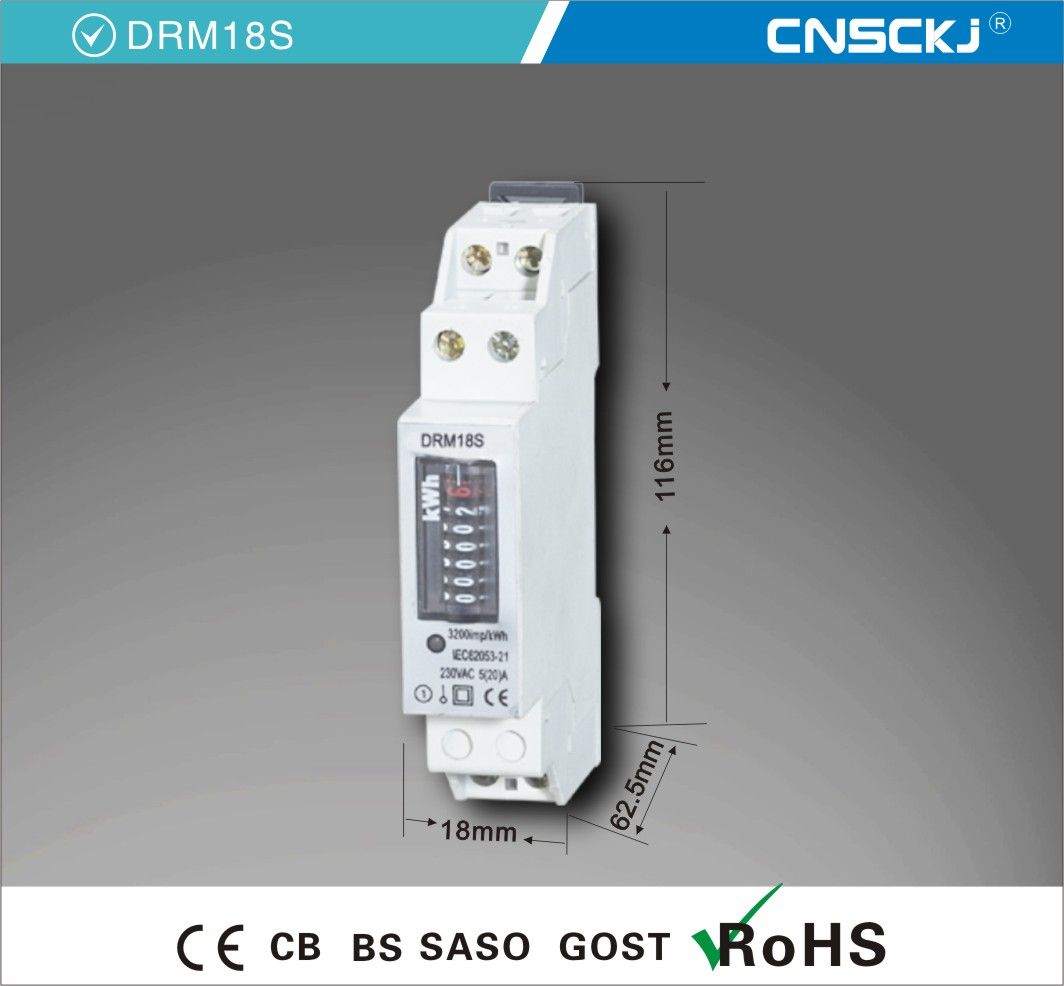

2).18mm width, complying with standard DIN43880.
3).6+1 LCD display
4).Impulse output when no power, complying with standard DIN43864.
Packaging & Delivery
| Packaging Details: | Standard Package |
| Delivery Detail: | 3-15 days |
Q 1. what's the payment terms?
A. We accept TT in advance ,western union , Paypal, etc.
Q 2. how's the delivery time ?
A. About 25 days for mass production
Q 3. tell me the standard of package?
A. Normally are cartons, we also follow the special requests of our customers.
Q 4. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. 360000pcs/month
Q 8.Where is your market?
A. Our products are popular in South America Countries, such as Brazil, Iran,Pakistan,India,Dubai,Zambia and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. Our company already achieved ISO, and for products, we have CE, SEMKO,CB, TUV, RoHS, etc.
