5 Axis CNC Machine German Power Tools

Product Specifications

Prod Model:	1224
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle:	Hsd Italy Spindle
Motor:	Japan Yaskawa Motor
Controller:	Osai
Software:	Alphcam
Spindle Number:	Single-Spindle
Controlling Mode:	CNC
Certification:	SGS

Product Description

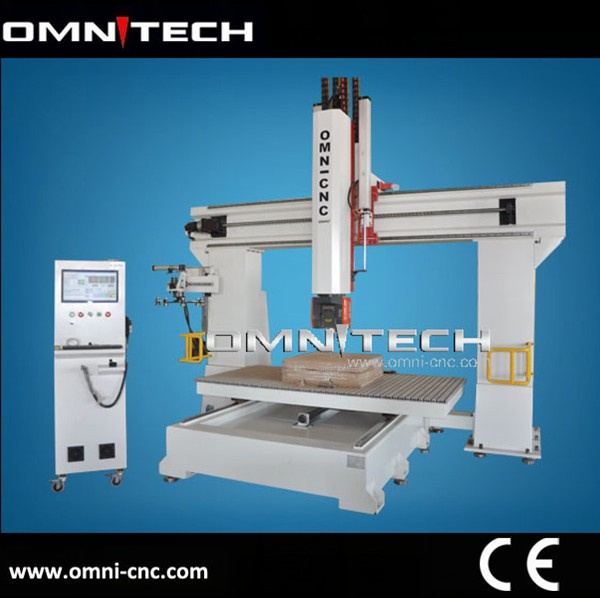

The OMNI 5 axis cnc router is with an extra heavy duty gantry and machine table for maximum rigidity and strength to provide high speed machining in all 5 axis. Due to the flexibility of the OMNI 5 axis machining centre it tis commonly used for mould making, machining moulds in wood, resin tooling board, EPS and composites, trimming of vacuum formed mouldings, plastic fabrication, GRP machining, props and model making, profiling, solid surface machining and contouring, various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.
5 axis cnc router working Area (in 5 axis): 1100 x 2300 x 900mm and 1200 x 2400 x 900 in 3 axis
Extra heavy duty welded steel frame and gantry for maximum straightness and rigidity
10Kw HSD Spindle
8 position rotary ATC with HS655 precision tool clamping
THK made in Japan lubricated for life linear rails and guide blocks
Imported ball screw on x axis ensures processing accuracy
Yaskawa servo drivers and motors for high power and speed
Osai - PC interfaced Numerical Control System
T-Slot clamping table
Becker vacuum pump for vacuum clamping fixtures (optional)
Oil Mist cooling system for cutting non-ferrous metals (optional)
3.0Kw Single bag 3-phase dust extractor or 5.5kw dual bag 3-phase dust extractor (optional)

Parameter

X,Y,Z working area 1200*2400*900mm Table size 1500*3040mm Spindle 10kw HSD spindle, 1000-24000rpm Motor  Yaskawa Servo motor and driver Moving mode Table moving C travelling ±180° A travelling ±112.5° Beam spacing(MM) 4260 Beam Height(MM) 2150 Vacuum pump Dry Vacuum pump 5.5kw Product fixed form vacuum table Tool magazine Round  tool magazine (8 positions) X, Y, Z Travelling Potioning Accuracy ±0.03/300mm X, Y, Z Travelling Repositioning Accuracy ±0.05mm X, Y structure rack and pinion drive, THK rail linear  bearing from Japan Max Rapid Travel Rate 45,000mm/min Max working speed 30,000mm/min Z Axis   20m/min C Axis 20m/min A Axis  20m/min Machine size    4260*2150*3300mm  Total Power(kw) 24KW Maximum lifting weights 20T Working voltage AC380V/50Hz Command languages G code,F/S Control system OSAI Collet BT40
