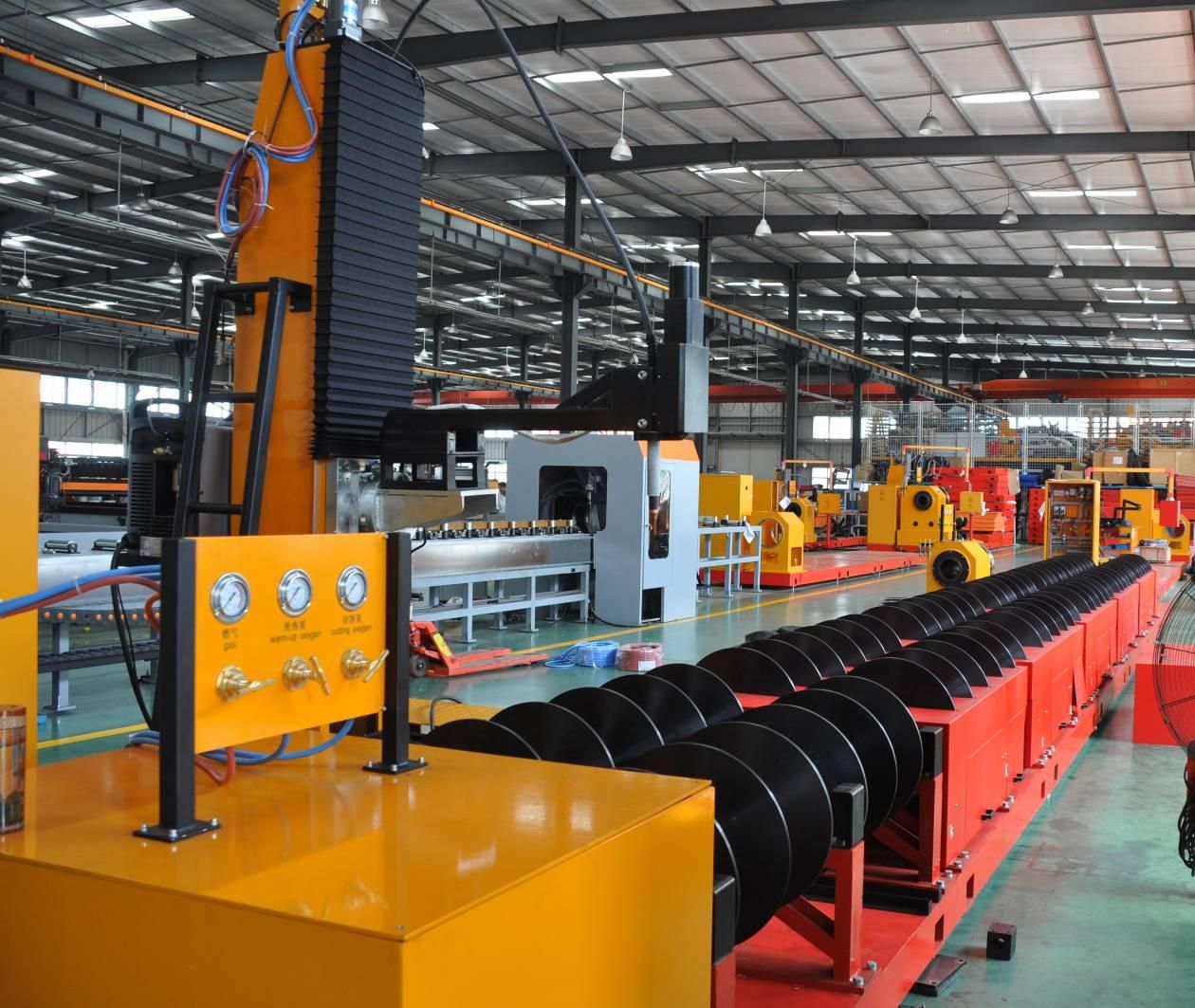

5 Axis CNC Pipe Profile Cutting Machine

Name: 5 Axis CNC Pipe Profile Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 768859205
Availability: InStock
Rating: 4.8 (124 reviews)

Supplier:	Dezhou NCM Machinery Co., Ltd.
Price:	US $ 80000-100000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,CIP

Product Specifications

Prod Model:	NCM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Plasma Power Source:	Hypertherm Maxpro200
Plasma Cutting Thickness:	1-30mm
Pipe Material:	Carbon Steel,Stainless Steel,Alloy Steel
Application:	Machinery & Hardware
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Automation:	Automatic
Type:	Pipe Cutting

Product Description

Specification

1	Basic Parameter
	Pipe outer diameter	Φ50-Φ1500mm
	Effective cutting pipe length	≤12000mm
	Flame cutting pipe thickness	5-50mm
	Plasma power source	Hypertherm MAXPRO200
	Plasma cutting thickness	1-30mm
	Max. Pipe loading capacity	8000KG
	Pipe material	Carbon Steel, Stainless Steel, Alloy Steel, etc.
2	Axis
	Number of the control axis	5
3	Name of axis
	Rotate the work piece (X)
	Cutting torch move along with Pipe Axis (Y)
	Cutting torch swing in Pipe axis direction (Z)
	Cutting torch move up and down in vertical direction (U)
	Cutting torch swing in radial direction of pipe axis (W)
4	Axis running range
	Rotate freely	No limited in X
	Max stroke in Y axis	12000mm
	Max rotation angle in Z axis	±60°
	Max stroke in U axis	500mm
	Max Rotation angle in W axis	±60°
5	Beveling angle
	Flame beveling angle	±60°
	Plasma beveling angle	±45°
6	Cutting speed
	Flame cutting speed		50-750mm/min
	Plasma cutting speed		50-9000mm/min
7	Overall accuracy
	Portrait Moving Error		≤0.2mm per 1000mm
	Turning Angle Error		≤1° per 180°
	Surface quality		Clean and no dregs
8	Idle speed
	X axis rotate speed		0-10000mm/min

Basic components of NCM-CNCXG1000 5 Axis CNC Pipe Profile Cutting Machine

1	Mechanical parts
	Dedicated chuck	1 set
	Hypertherm MAXPRO200	1 set
	Plasma cutting torch	1 set
	Flame cutting torch	1 set
2	Electrical parts
	Numerical control system	1set
	Driving motor	Panasonic(Japan Brand)
	Driving control system	Panasonic(Japan Brand)
	Moving controller card	Programmable Multi-Axis Controller
	Gear box	SEW(Germany Brand)
3	Control system configuration (Advantech, made in TAIWAN)
	CPU	Intel Atom N270(1.6GHz);
	Torch screen	12.1" color touch screen
	RAM and VGA card	1G VGA card
	Input model	MID Floppy disk or U disk
	Data reserve model	Floppy disk and hard disk
	Hard disk	320G
	Operation system	WINDOWS
	Network card	100M
	Motor axis controller	PMAC-motion card

Overall running and cutting accuracy

1	Rotate the work piece (X)(√)
	Precision gear box, gear secondary transmission
	Rotate speed 0.1-25r/min
	Servo motor Panasonic motor
	Position accuracy ±0.1mm
2	Cutting torch move along with Pipe Axis (Y)(√)
	Precision gear box, gear and track transmission
	Track length of the cutting head(Max stroke) 12000mm
	Servo motor Panasonic motor
	Position accuracy ±0.2mm
3	Cutting torch swing in Pipe axis direction (Z)(√)
	Precision worm-gear case transmission
	Swing angle ±60°
	Servo motor Panasonic motor
	Position accuracy ±0.1mm
4	Cutting torch move up and down in vertical direction (U)(√)
	Precision gear box, ball screw transmission Cutting torch up and down stroke in vertical 500mm Servo motor Panasonic motor Position accuracy ±0.2mm
5	Cutting torch swing in radial direction of pipe axis (W)(√)
	Precision gear box transmission Swing angle ±60° Servo motor Panasonic motor ±0.1mm Position accuracy

ite condition requirement of the Machine (Must be prepared before machine arrive users' site)

Item	Contents
1	User shall make cement foundation. (Seller will supply the drawing of cement foundation.)
2	Voltage requirement: (1)3×380v±10%/50Hz,220v±10%/50Hz (2)Three-phase voltage stability less than ±5% (3)Three-phase voltage unbalance less than 2.5% (4)Suggested using voltage-stabilized source. Note: Grounding resistance ≤10
3	Flame cutting gas requirement: Gas type: propane\acetylene \ LPG Fuel gas pressure:0.05-0.1 MPa Cutting oxygen pressure:0.5-0.8 MPa Pre-heat oxygen pressure:0.4-0.6MPa
4	Compress air pressure requirement (Plasma cutting): (1) Gas flew requirement: 0.9m3/min (2) Gas pressure: 8.3kg/cm2 (3) Dew-point temperature not exceed 5 centigrade: oil content≤0.003ppm solid particle≤0.01micron (4) Suggested using oil free air compressor, freezing dryer and ultra filter (system cannot have rust components)
5	Cutting pipe must be smooth surface oval-shaped deviation less than 5mm diameter. Reach ISO standard.

NCM Group has been an expert in design and manufacture of construction equipment and computer numerical control (CNC) machines. NCM Group provides construction related engineering services and products, such as concrete batch plants, asphalt batch plants, stabilized soil batch plants, concrete pump trucks, concrete pump trailers, truck mixers, belt conveyors, tubular screw conveyors, cement silos, and mixers with focus on quality, safety and environmental care. NCM Group applies state-of-art technologies in our NCM branded CNC machines, such as CNC pipe and irregular tube plasma cutting machines, robot cutting and welding systems, CNC laser cutting machines, CNC portable pipe cutting machines, and water jet cutting machines. Feel free to contact our outstanding staff in Europe, North America and Asia, let NCM Group quality team help you to have your project delivered smoothly and on time with lower cost and risk. With over 50, 000 square meter manufacturing facilities, two research and development centers, our outstanding staff and spare parts and service points all over the world, NCM Group can deliver more values to you through maximizing operational uptime by safe, reliable, precise, and cost-effective construction equipment and CNC machines.
